IM 1137-4 • TEMPLIFIER
®
MODEL TGZ 18 www.DaikinApplied.com
Pressure droP daTa

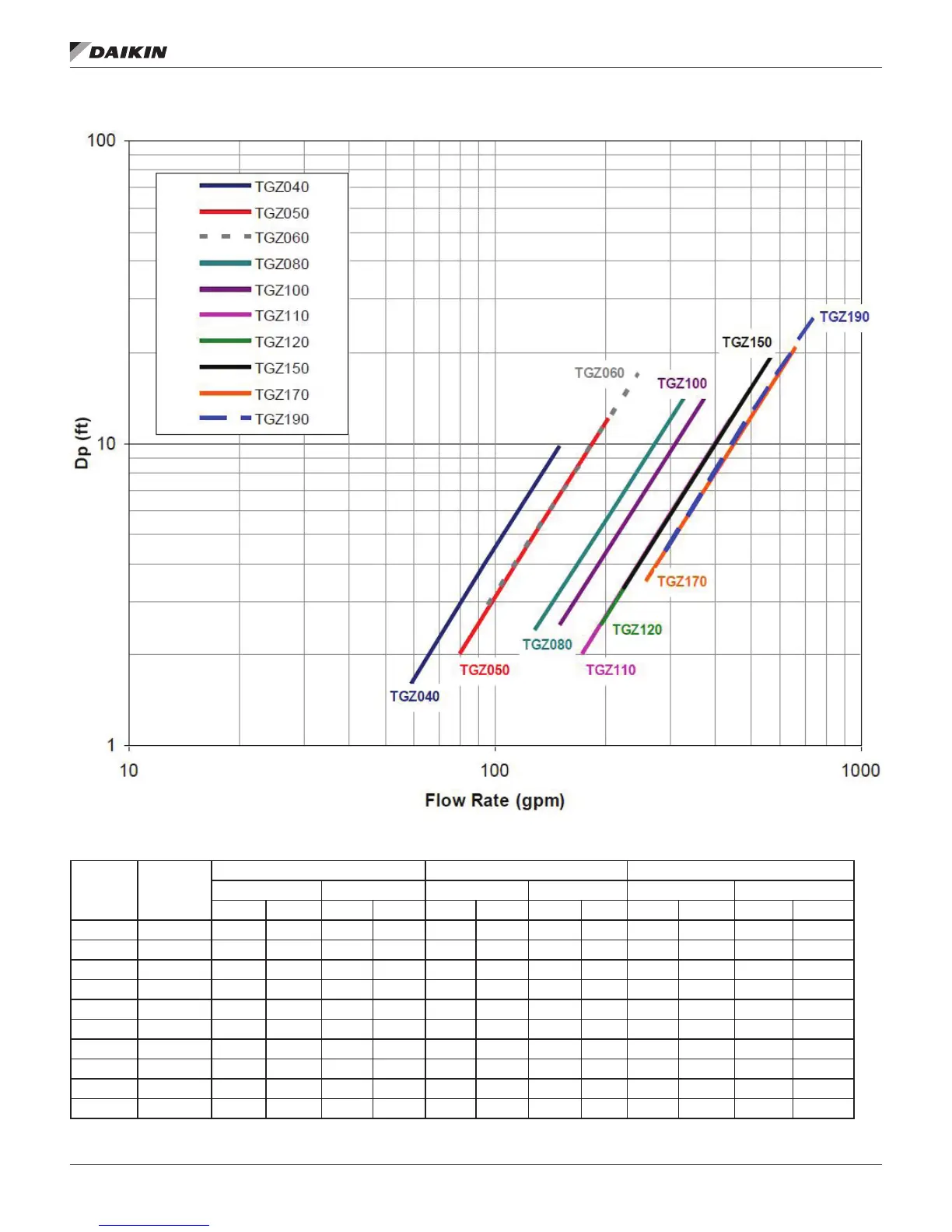

Figure 16: Optional Two-pass Condenser
Table 11: Optional Two-pass Condenser
TGZ UNIT
MODEL
COND.
MODEL
Minimum Flow Rate Nominal Flow Rate Maximum Flow Rate
Inch-Pound S.I. Inch-Pound S.I. Inch-Pound S.I.
GPM DP ft lps DP kpa GPM DP ft lps DP kpa GPM DP ft lps DP kpa
TGZ040 C1010-62 59 1.6 3.7 4.9 94 4.0 5.9 12.0 150 9.8 9.5 29.3
TGZ050 C1010-62 80 2.0 5.0 6.0 128 4.9 8.1 14.6 205 12.0 12.9 35.8
TGZ060 C1010-76 96 2.9 6.1 8.5 154 7.0 9.7 20.9 246 17.0 15.5 51.0
TGZ080 C1410-112 129 2.4 8.1 7.1 206 5.8 13.0 17.3 330 14.2 20.8 42.3
TGZ100 C1410-128 150 2.5 9.5 7.3 240 6.0 15.1 17.9 384 14.7 24.2 43.8
TGZ110 C1610-164 173 2.0 10.9 6.0 276 4.9 17.4 14.6 442 12.0 27.9 35.8
TGZ120 C1610-164 195 2.5 12.3 7.6 312 6.2 19.7 18.5 499 15.1 31.5 45.3
TGZ150 C1612-164 225 3.3 14.2 9.9 360 8.1 22.7 24.2 576 19.8 36.3 59.1
TGZ170 C1612-184 259 3.5 16.3 10.4 414 8.5 26.1 25.4 662 20.8 41.8 62.1
TGZ190 C1612-184 293 4.4 18.5 13.2 468 10.8 29.5 32.3 749 26.4 47.2 78.8
