IM 1137-4 • TEMPLIFIER
®
MODEL TGZ 20 www.DaikinApplied.com
dImensIonal drawIngs

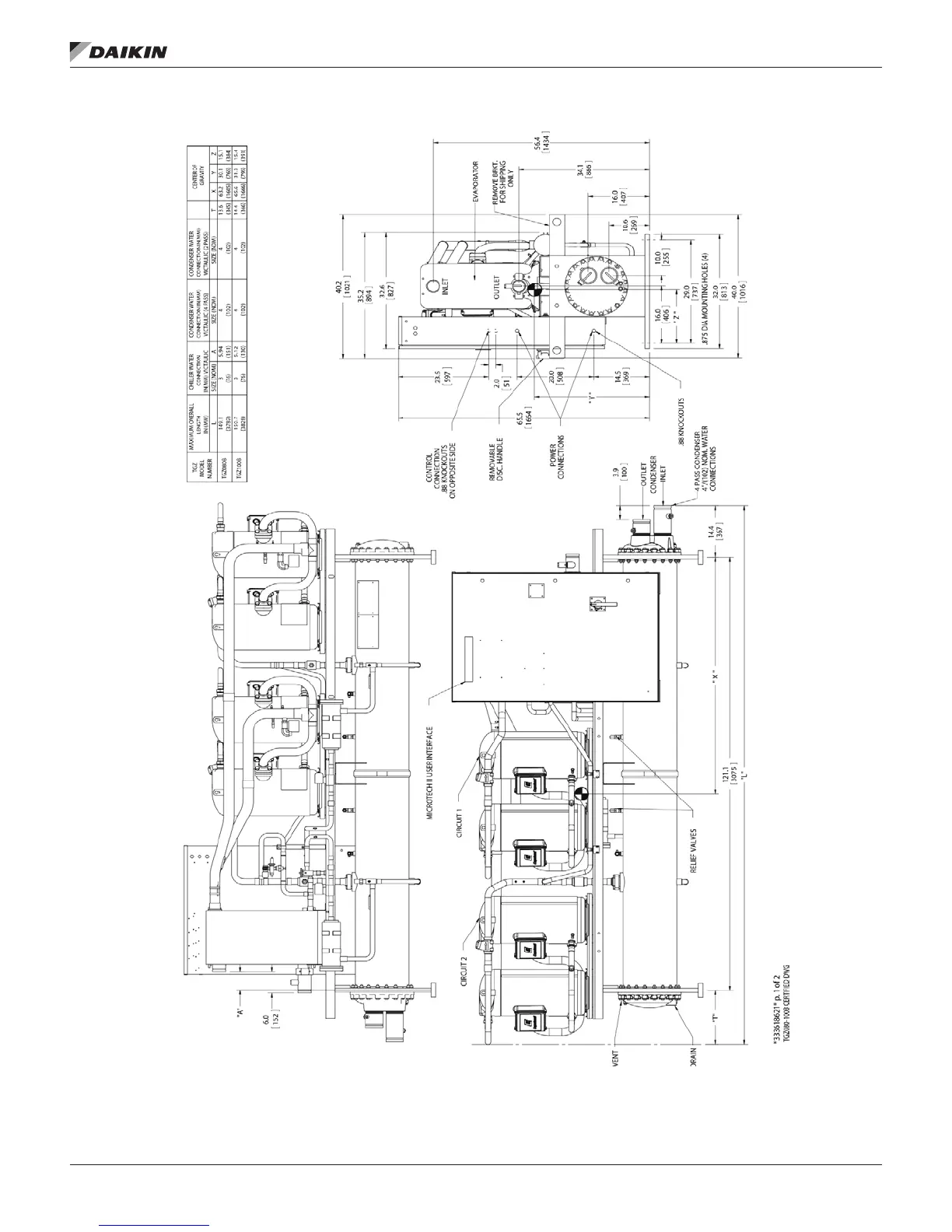

Figure 18: Dimensions, TGZ080B – TGZ100B, Standard 4-Pass Condenser
NOTE: See “Weights” on Table 12 on page 24 for lifting and corner weights. Left-hand condenser connections are an
available option.
