SiE33-102 Product Outline
General Information 3

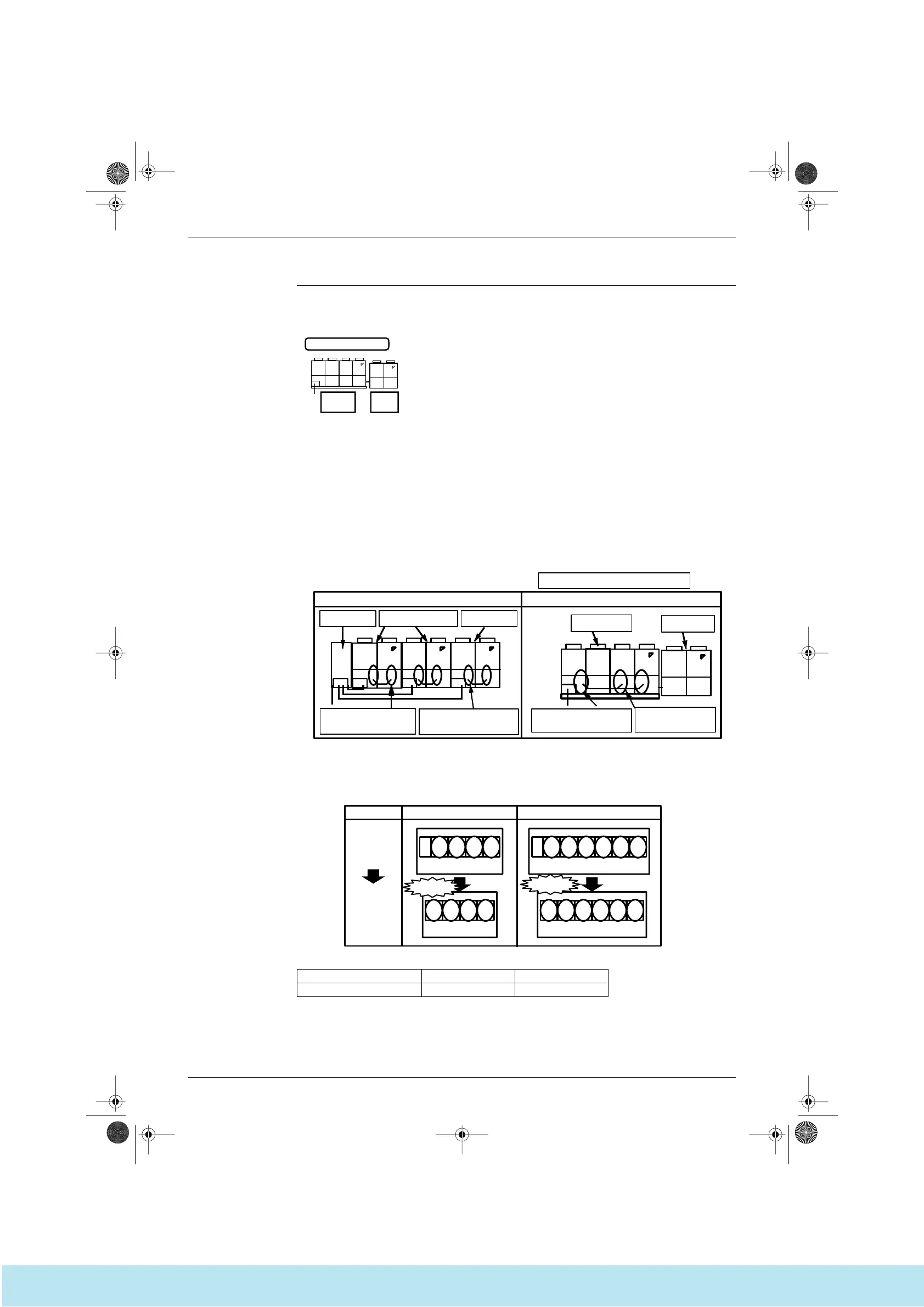

1.2 Outline of New Series Products
In addition to the use of a refrigerant (R-22), the new series products incorporate a function-unit-less structure for
significantly improved flexibility and ease of installation.
System outline
No function unit
All models combine main units and sub units.
Reduction of refrigerant charge volume (approx. 72~82% as compared to previous model.
--- Mainly by elimination of function units, simplification of refrigerant circuits and reduction of internal
volume.
Feature (2)
Dramatically improved flexibility and ease of field installation by function-unit-less structure
--- Simpler piping work at installation sites
--- Reduced unit installation area
Feature (3)
Reduction of installation area
Simpler piping work at installation sites
20HP 30HP
Pipe connecting locations 14 joints
→
6 joints 20 joints
→
6 joints
Standard series
General name
Main unit name
Sub unit name
RSXY~KAY1(E)/YAL(E)
RXY~KAY1(E)/YAL(E)
RXE8·10KAY1(E)/YAL(E)
Main
units
Sub
units
(V1526)
B
Main unit Sub unit
Function-unit-less system
Conventional system
Previous VRV PLUS New VRV PLUS
30HP
Function unit
Inverter unit
Constant-speed unit
30HP
Type-D inverter compressor
(10 HP)
Type-D constant-speed
compressor
Type B inverter compressor
(with oil discharge mechanism)
Type-B constant-speed compressor
(with oil discharge mechanism)
(V1527)
20HP 30HP
Conventional
system
Function-unit-less
system
11.6%reduction
13.7%reduction
(V0803)
Si33-102.book Page 3 Tuesday, June 26, 2001 3:18 PM
