Required Tools Si50-203
34 Semi-Hermetic Single Screw Compressor Version III

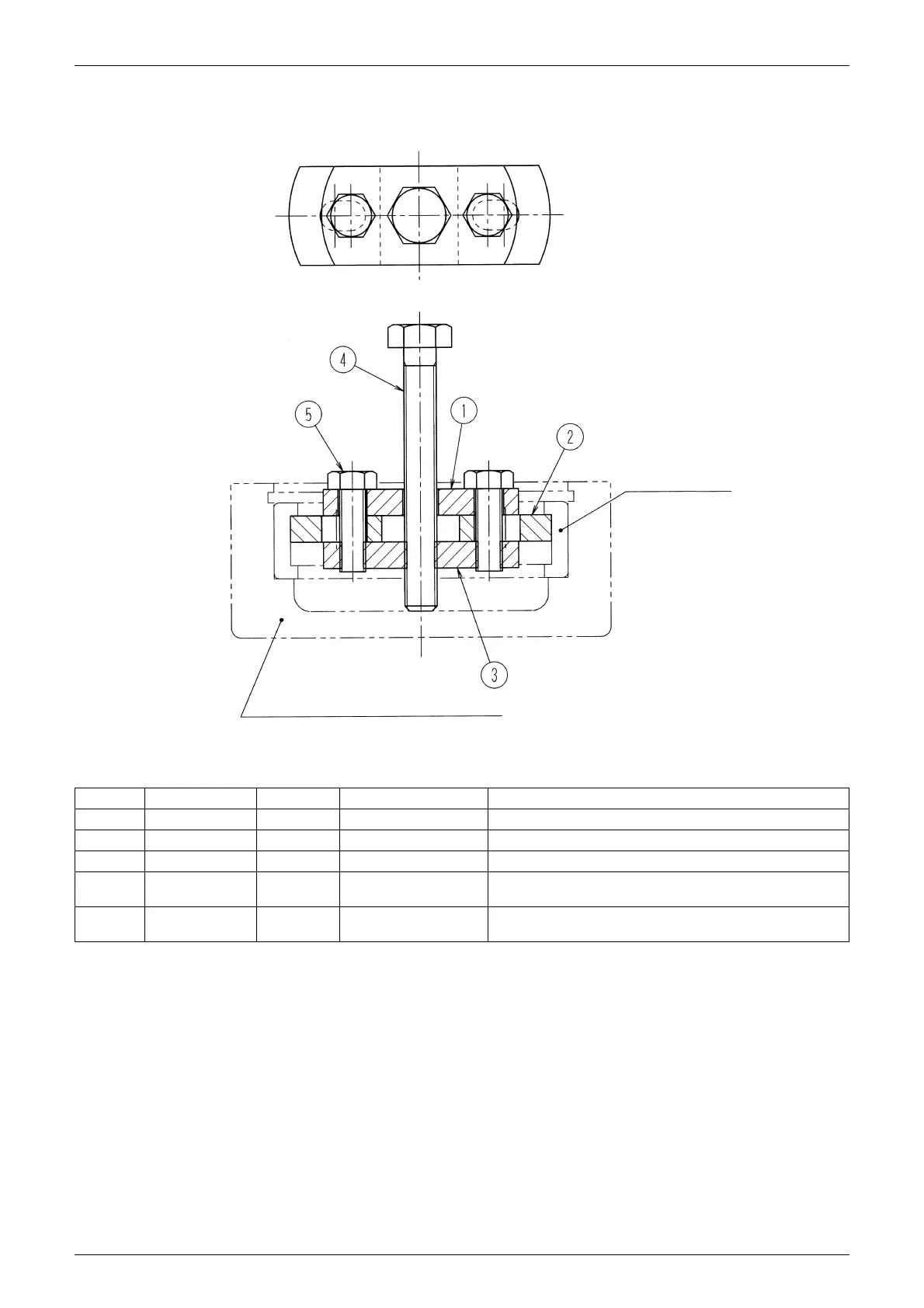

Jig (2)-1 [Bearing Removing Jig Set]
Parts No. Name Quantity Material Remarks
Guide plate 1 SS400 or SM400A See next page.
Batten(1) 2 SS400 or SM400A See next page.
Batten(2) 1 SS400 or SM400A See next page.
Removing bolt 1 S45C
JIS B1180 fully threaded hexagon head bolt
A M10x70-10.9, chamfered end
Hexagon bolt 2 S45C
JIS B1180 hexagon head bolt with nominal diameter body
A M8x25-5.6
(Z0116)
Suction end cover housing section
Bearing outer ring
To Next Page
