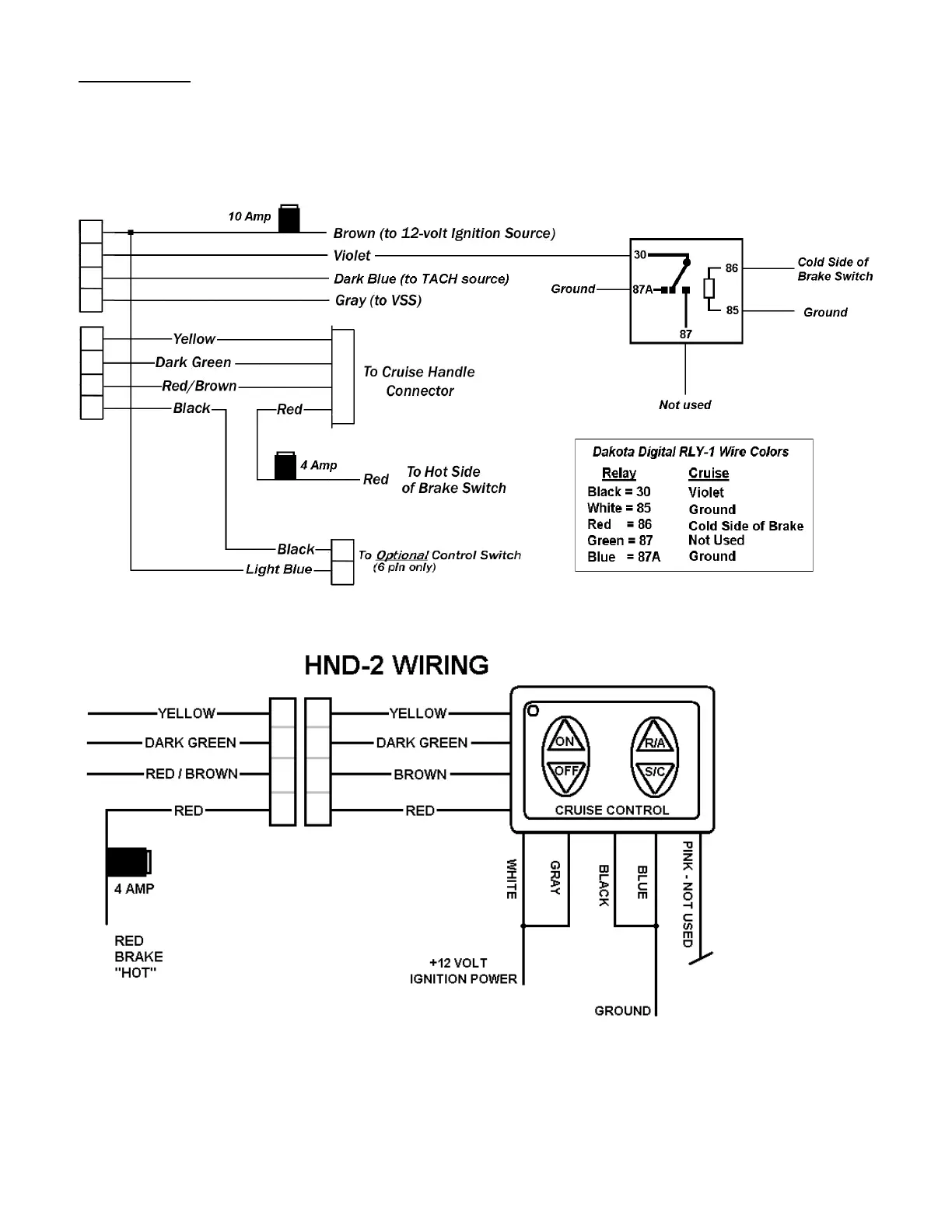

Please Note: If you are using L.E.D. taillights please wire a relay as shown here to allow for proper Cruise
Control operation. Use Dakota Digital RLY-1, or any 5 pin SPDT normally open relay.
When using the relay, the Violet must go to Pin 30 (RLY-1 Black) ONLY.
Pin 86 (RLY-1 Red) is the only wire that now goes to the cold side of the brake switch.
TROUBLE SHOOTING:
If the system fails to operate after making all of the proper connections, consult the self diagnostics procedure on page 16. The
Diagnostics LED is located beside the programming switches, under the rubber plug on the actuator.
In order for the cruise to regulate the speed properly under load, the car must be tested on the road
and not with the tires elevated off the ground.
