System features
INDICATORS
LOCATIONS
There are two message locations available to display additional information under the speedometer. They are labeled Top
and Bottom Message Location, respectively. You can program what you want in each location as well as turn readings off.
Each location can have multiple readings assigned to it; simply tap the function switch to scroll to the next reading in that
location. See function switch operation on page 8.
The main speedometer reading ranges from 0-250MPH/400km/H while the arching bar graph tachometer offers a 0-7000
RPM reading.
Information readings Description
ODOMETER Odometer reading (0-999,999)
TRIP A Trip A odometer reading (0-9999.9)
TRIP B Trip B odometer reading (0-9999.9)
SERVICE (when enabled) Distance to next service (0-7500.0 or ---- when “SERVICE DUE”)
TRIP HR Hours gauge has been on with engine running HH:MM (00:00 to 99:59)
SPEED km/h Alternate speed unit conversion
RPM Digital RPM reading (0-9,999)
OIL TEMP (with optional sender present) Engine oil temperature
OIL PSI (with optional sender present) Engine oil pressure
VOLTS System voltage
GEAR/CLOCK Gear position and 12 hour clock display
Performance readings
HIGH MPH High speed recall
0-60 TIME 0-60 mph time in seconds
Quarter mile speed/time Speed at end of ¼ mile (trap speed) and ¼ mile time from standing start
HIGH RPM High RPM recall
MBM (Motorcycle Bus interface Module)
MBM displays (optional) Readings for connected modules

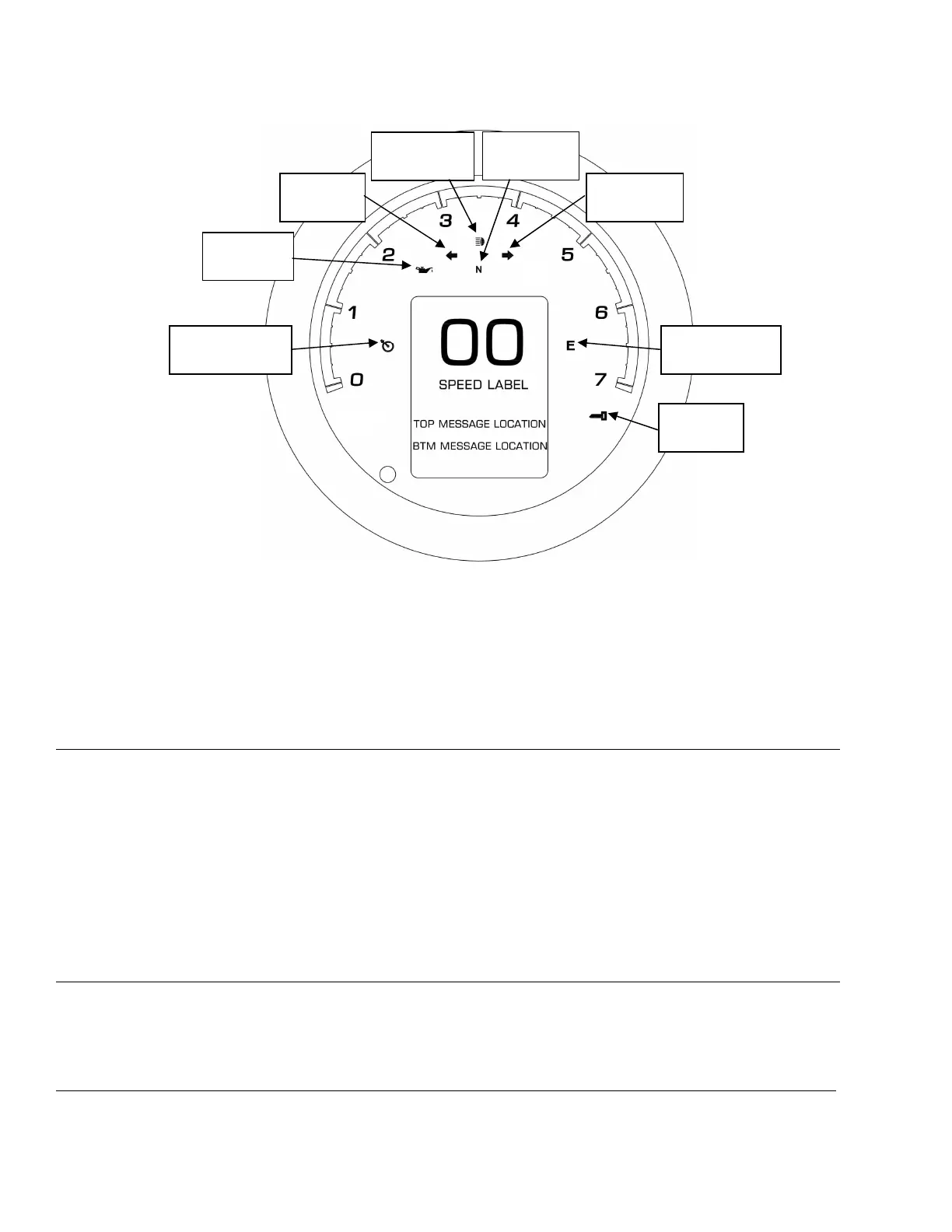

Cruise control
(green/red)
Right turn
Neutral
(green)
High beam
Left turn
Low oil
Security
(red)
Check engine
