DALGAKIRAN L-8 - Control Panel; Buttons and Indicators; Working Description

5

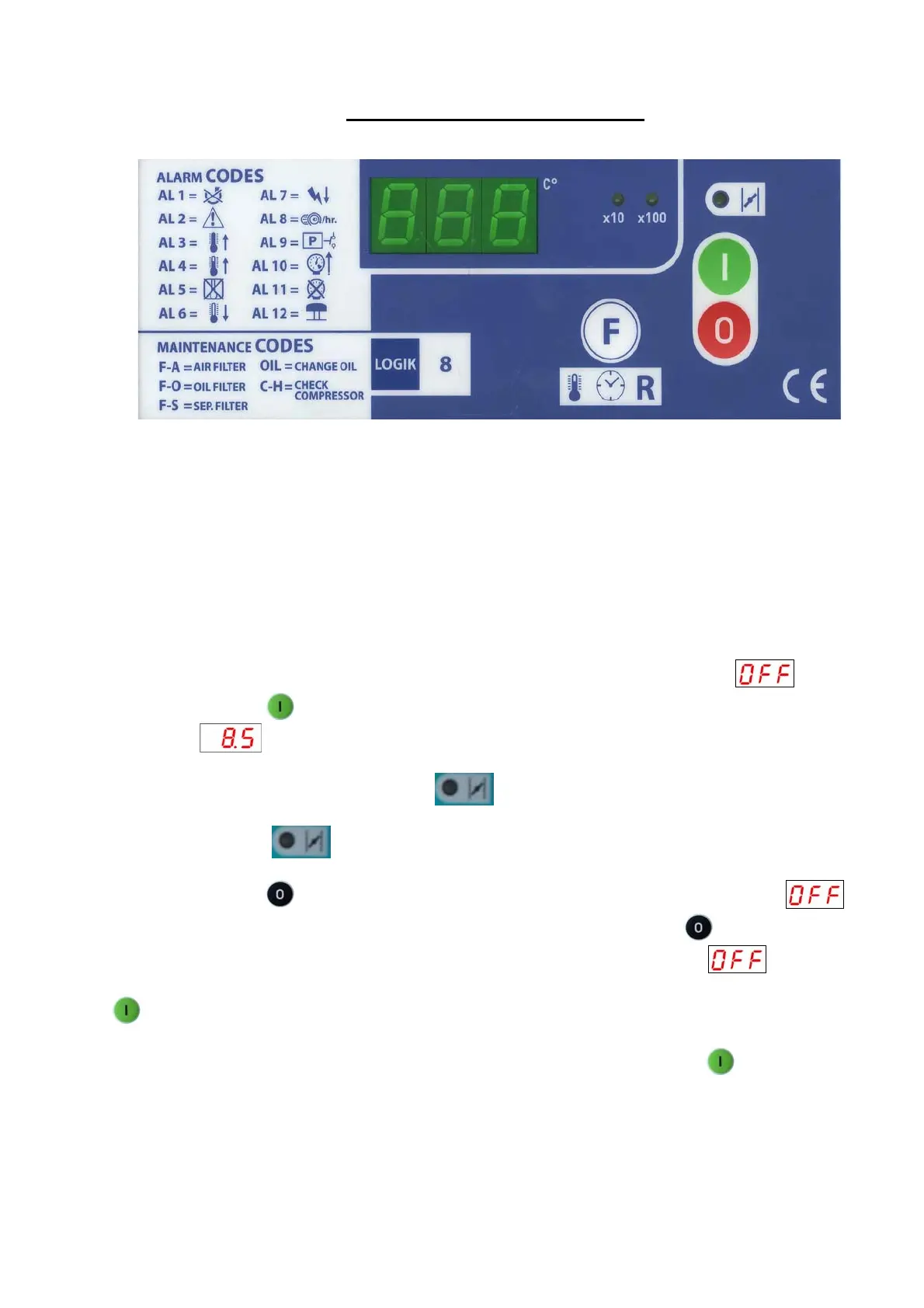

L8 - CONTROL PANEL
LED
INFO SCREEN
START
RESET STOP
BUTTONS :
START : RUNS COMPRESSOR.
STOP : STOPS COMPRESSOR.
RESET : SHOWS WORKING TEMPERATURE, WORKING HOURS, RESETS ALARMS,
VERIFY THE MODIFICATIONS OF SET VALUES.
LED (X10), (X100) : MULTIPLICATIVE FACTOR LED.
WORKING DESCRIPTION :
1- WHEN COMPRESSOR CONNECTED THE POWER SUPPLY. THE DISPLAY SHOWS
.
2- BY PUSHING THE
BUTTON, THE COMPRESSOR STARTS AND SCREEN SHOWS WORKING
PRESSURE
.
IN CASE THE PRESSURE REACHES THE SET VALUE, PRESSURE SWITCH GETS OPEN AND THE
SCREEN SHOWS THE BLINKING MESSAGE
DURING THE COUNTING OF THE UNLOAD STOP
TIMER (P15). IF THE PRESSURE SWITCH IS STILL OPEN AT THE END OFTHE COUNTDOWN, MESSAGE
COMES TO BE FIXED
IF THE PRESSURE SWITCH CLOSES DURING THE COUNTDOWN THE
UNLOAD STOP TIMER (P15) RESET.
3- BY PUSHING THE
BUTTON, THE COMPRESSOR STOPS AND THE SCREEN SHOWS .
EVERY TIME THE COMPRESSOR SWITCHES FROM “ON” INTO “OFF” BY THE
BUTTON, THE LOAD
SOLENOID VALVE GOES OFF FOR 30 SEC. AND THE SCREEN SHOWS FLASING
MESSAGE.
WHILE THE MESSAGE IS FLASHING, IT IS POSSIBLE TO RESTART THE COMPRESSOR BY PUSHING
. AFTER 30 SEC. COMPRESSOR SWITCHES OFF, AND SCREEN MESSAGE COMES TO FIXED. THE
MULTIPLICATIVE FACTOR LED “X10” STARTS FLASHING AND THE TIMER SETS ON PARAMETER (P17)
STARTS. DURING THE COUNTDOWN, RESTART IS NOT POSSIBLE BY PUSHING
. WHEN THE TIMER
(P17) IS ELAPSED, LED “X10” SWITCHES OFF.
