Be very careful when wall mounting - DALI Elegance weighs 1.4 kilos!
4
English
Wall mounting
DALI Elegance comes complete with ttings for wall mounting. We recom-
mend that mounting be entrusted to professionals, as the type of plugs
and screws required varies greatly depending on the material of the wall.

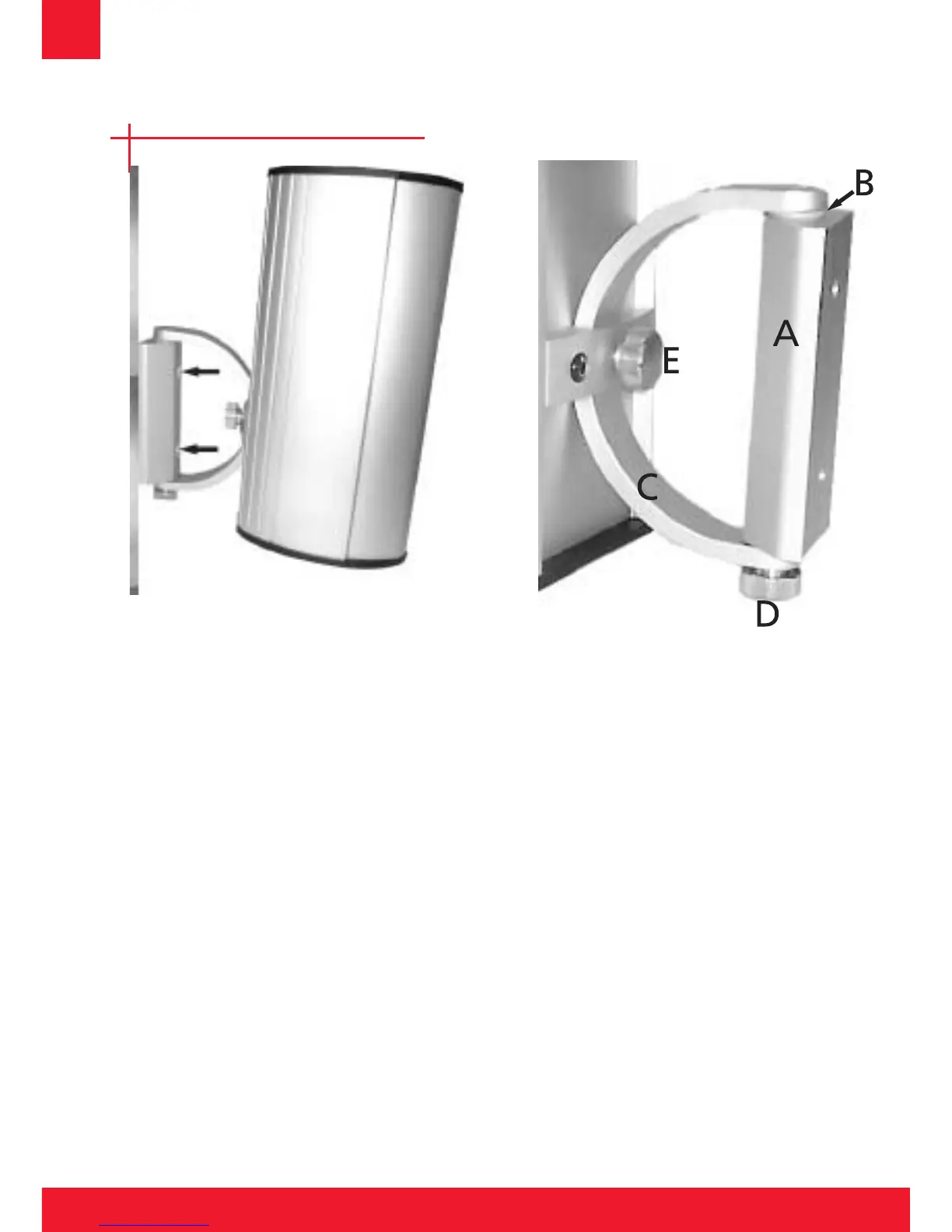

Mount the "A" tting is on the wall using screws, and possibly plugs, suit-
able for the material the wall is made of. The threaded hole in the bracket
should face downwards. Fit the accompanying nylon bushing ("B") in the
top. Mount the rail ("C") in the slot on the back of the speaker and then
over tting "A". Mount the accompanying nylon disc should be mounted
at the base of tting "A" between the tting and rail "C", and then install
thumbscrew "D" from the bottom through the rail and nylon disc into the
screw thread in tting "A".
Screws "D" and "E" should be loosely tightened. The speaker's position
can now be adjusted both horizontally and vertically. Once you are happy
with the positioning of the speaker, screws "D" and "E" should be fully
tightened by hand. It is advisable to retighten the screws from time to
time.
