Dallara Automobili – GP2 user manual 20/87

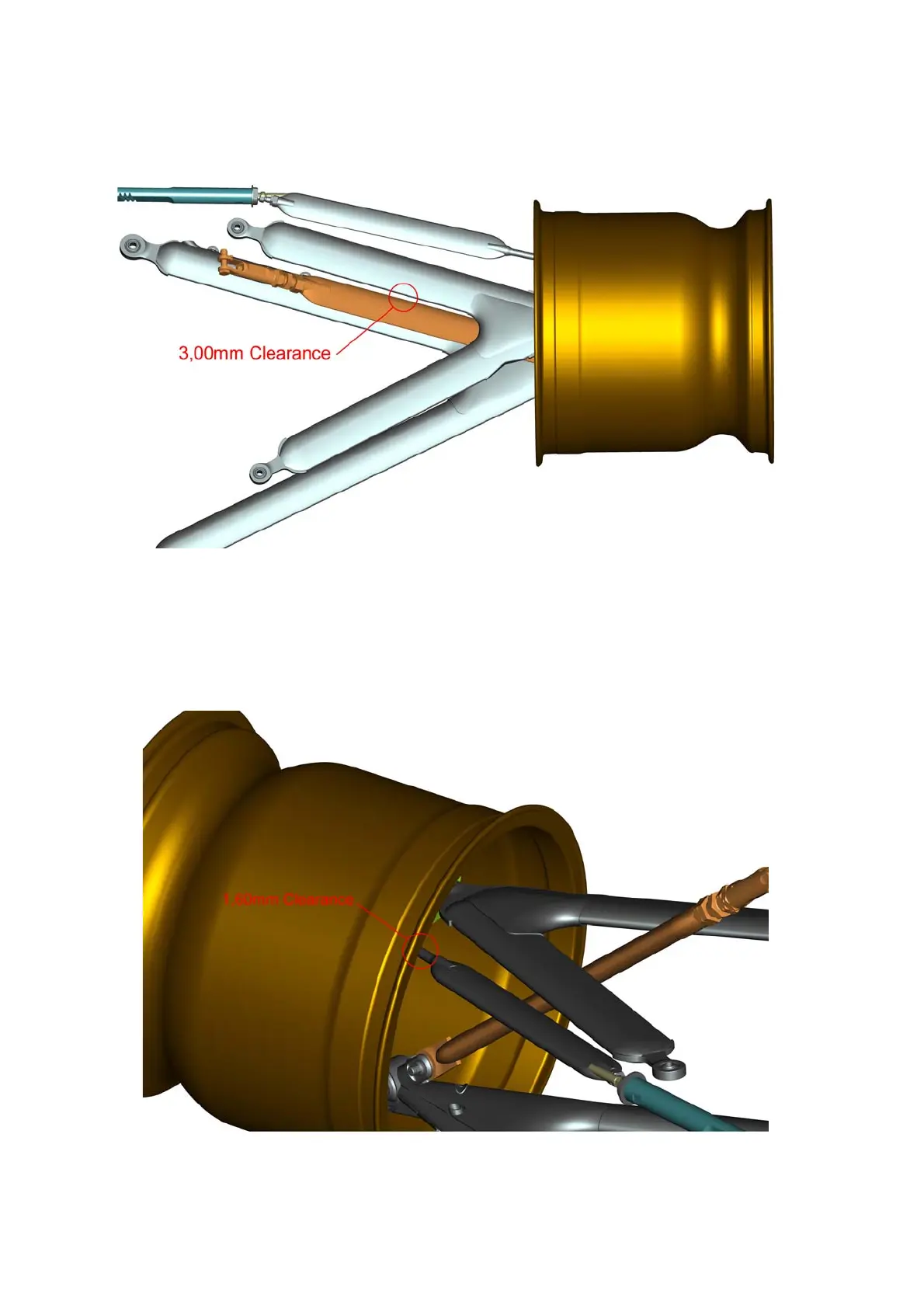

REGULATION
CASTER MAX. = 6.7° (+2 lengthen turns = 2.12 mm)
PUSH ROD = +5 mm (lengthen)
MINIMUN CASTOR REGULATION
CASTER MIN. =3.0° (-6 shorten turns = 6.36 mm)
PUSH ROD = +5 mm (lengthen)
STEER RACK DISPLACEMENT = 28 mm
CAMBER MAX. = -4.80°
