INSTALLATION INSTRUCTIONS
15

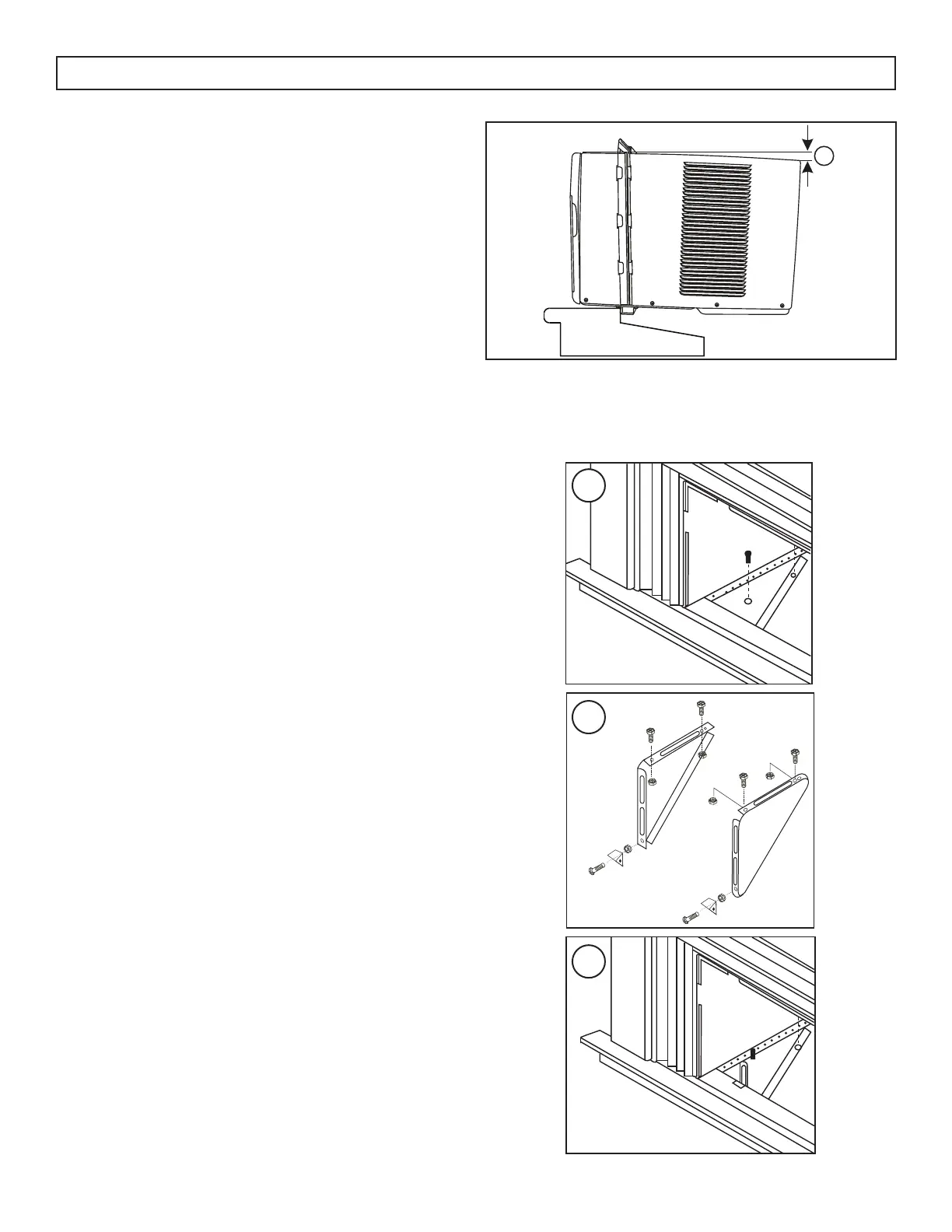

Check the Tilt Angle
The air conditioner should be tilted downward
towards the outside approximately 3° to 4°. This
tilt will encourage any condensed water to drain
to the outside. If any condensed water leaks to the
inside of the house, check the tilt angle and adjust
as necessary.
Measure the tilt angle from the front of the cabinet’s
edge. The difference in height between the front
and the back of the appliance, labeled “A” on the
image, should be approximately 19 mm - 2.5 cm
(3/4 inch - 1 inch).
Support Brackets
1. Hold each support bracket flush against the
outside of the window sill and attach to the
bottom of the cabinet using the 1/2” (13 mm)
screws and lock nuts provided but do not fully
tighten the screws. Mark the brackets at the top
level of the window sill and then remove.
2. Assemble the sill anchor brackets to the outside
support legs using the 3/4” (19 mm) flat head
bolts and lock nuts provided.
3. Install the support brackets with the sill anchor
brackets attached to the correct hole in the
bottom of the cabinet. Tighten all six bolts
securely.
A
1
2
3
