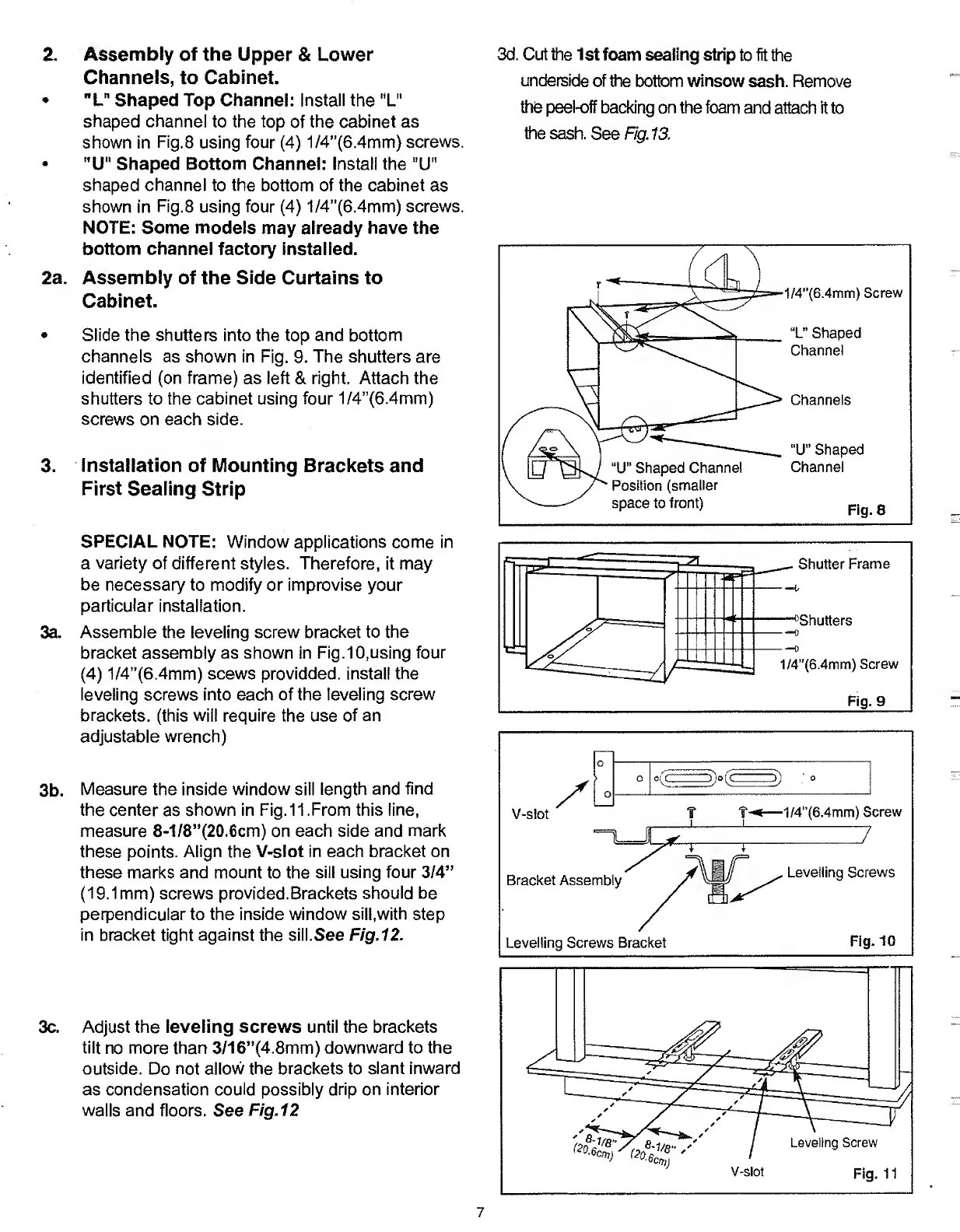

2. Assembly of the Upper & Lower
Channels, to Cabinet.
• "L" Shaped Top Channel: Install the "L"
shaped channel to the top of the cabinet as
shown in Fig.8 using four (4) 1/4”(6.4mm) screws.
• "U" Shaped Bottom Channel: Install the "U"
shaped channel to the bottom of the cabinet as
shown in Fig.8 using four (4) 1/4”(6.4mm) screws.
NOTE: Some models may already have the
bottom channel factory installed.
2a. Assembly of the Side Curtains to
Cabinet.
• Slide the shutters into the top and bottom
channels as shown in Fig. 9. The shutters are
identified (on frame) as left & right. Attach the
shutters to the cabinet using four 1/4”(6.4mm)
screws on each side.
3. Installation of Mounting Brackets and
First Sealing Strip
SPECIAL NOTE: Window applications come in
a variety of different styles. Therefore, it may
be necessary to modify or improvise your
particular installation.
3a. Assemble the leveling screw bracket to the
bracket assembly as shown in Fig.lO.using four
(4) 1/4”(6.4mm) scews providded. install the
leveling screws into each of the leveling screw
brackets, (this will require the use of an
adjustable wrench)
3b. Measure the inside window sill length and find
the center as shown in Fig.11.From this line,
measure 8-1/8”(2Q.6cm) on each side and mark
these points. Align the V-slot in each bracket on
these marks and mount to the sill using four 3/4”
(19.1mm) screws provided.Brackets should be
perpendicular to the inside window sill,with step
in bracket tight against the sill. S ee Fig.12.
3c. Adjust the leveling screws until the brackets
tilt no more than 3/16” ( 4.8mm) downward to the
outside. Do not allow the brackets to slant inward
as condensation could possibly drip on interior
walls and floors. See Fig.12
3d. Cut the 1 st foam sealing strip to fit the
underside of the bottom winsow sash. Remove
tine peel-off backing on the foam and attach it to
the sash. See Fig. 13,
