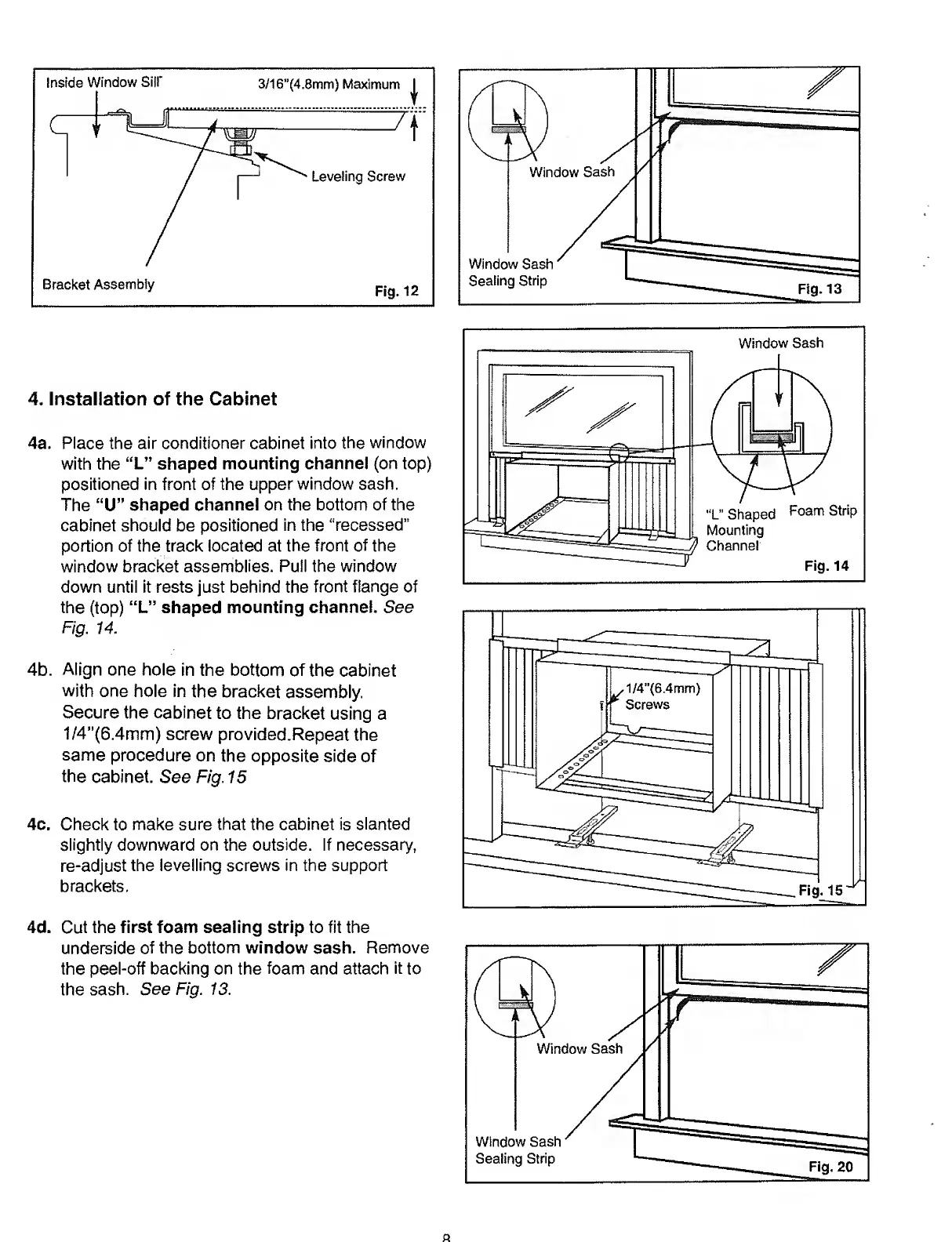

4. Installation of the Cabinet
4a. Place the air conditioner cabinet into the window
with the “L” shaped mounting channel (on top)
positioned in front of the upper window sash.
The “U” shaped channel on the bottom of the
cabinet should be positioned in the “recessed”
portion of the track located at the front of the
window bracket assemblies. Pull the window
down until it rests just behind the front flange of
the (top) “L” shaped mounting channel. See
Fig. 14.
4b. Align one hole in the bottom of the cabinet
with one hole in the bracket assembly.
Secure the cabinet to the bracket using a
1/4”(6.4mm) screw provided.Repeat the
same procedure on the opposite side of
the cabinet. See Fig.15
4c. Check to make sure that the cabinet is slanted
slightly downward on the outside. If necessary,
re-adjust the levelling screws in the support
brackets.
4d. Cut the first foam sealing strip to fit the
underside of the bottom window sash. Remove
the peel-off backing on the foam and attach it to
the sash. See Fig. 13.
