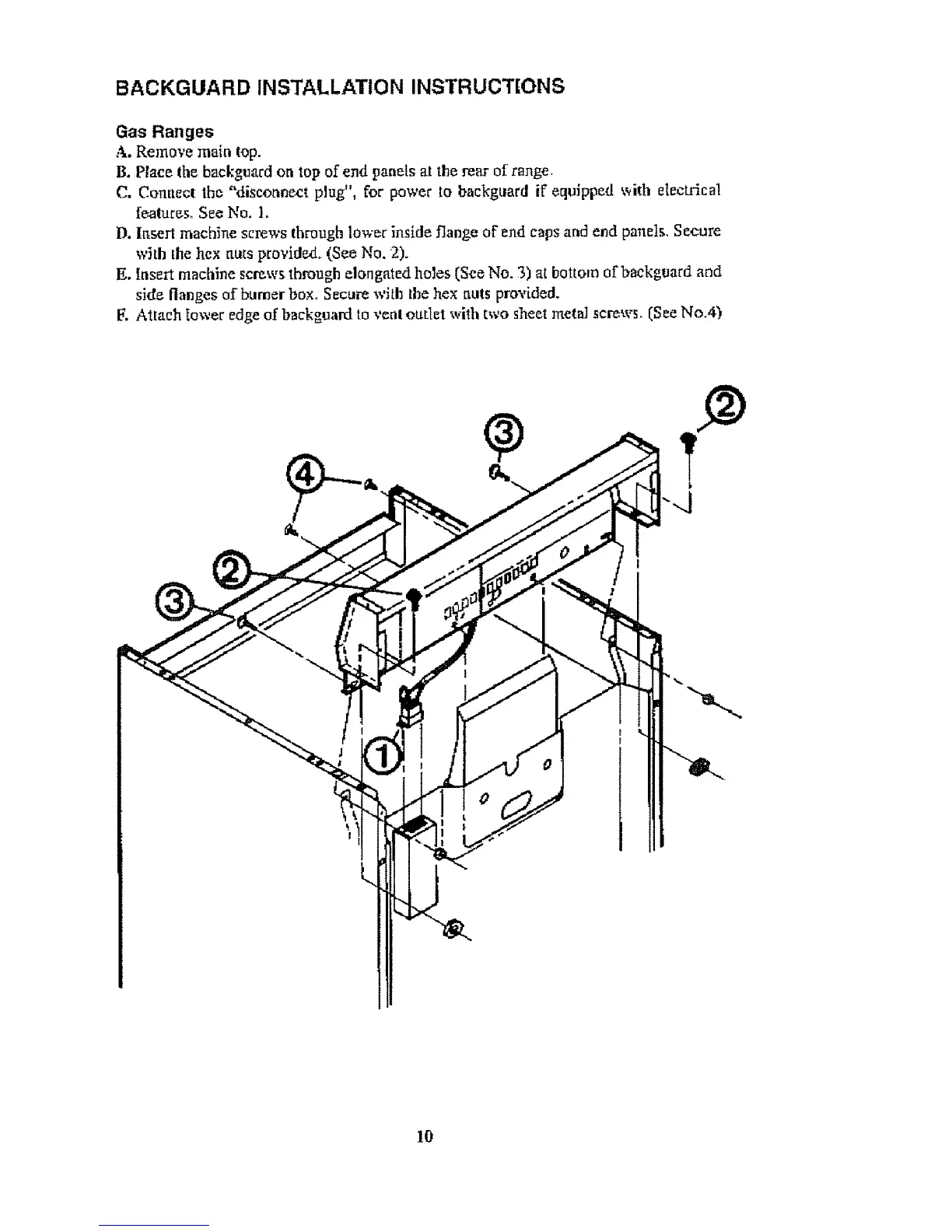

BACKGLIARD INSTALLATION INSTRUCTIONS
Gas Ranges
A. Remove main top.
B. Prace the backguard on top of end panels at lhe rear of range
C, Conttect the "disconne, ct plug", for power to backguard if equipped _ith electrical
features, See No, 1,
D. lttsert machine screws through lowec inside flange of end caps and end panels, Secure
with the hex nuts provide, (See No, 2),
E. Insert machine screws through elongated holes (See No, 3) at bottom of backguard and
side flanges of burner box, Secure with the hex rtuts proY_ded.
_', Attach tower edge of backguard to vettl outlet with two sheet met_] _erews. [See No,4)
