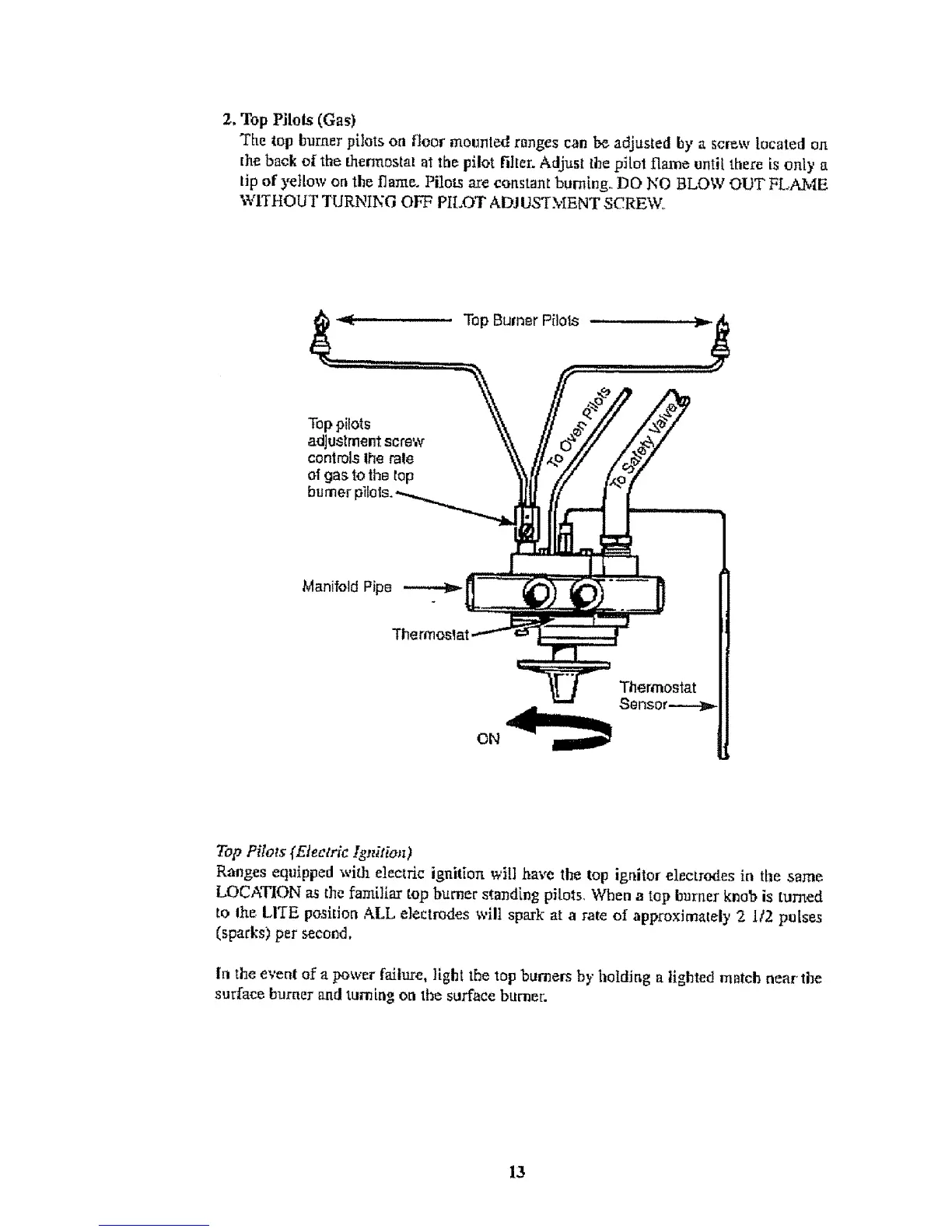

2. Top Pilot, (Gas)
The top burner punts on floor mounted rQnges can be adjusted by a screw located on
the back of' the thennDstal at the pilot filter. Adjust the pilol flame until there is only a
tip of yellow on the flame. Pilots are constant bur_[ng.. DO NO BLOW OUT FLAME
WITHOUT TURNING OFF PILOT ADJUSTMENT SCREW.
Top pilots
adjustment screw
controls Ihe rale
of gas to the top
Manifold Pipe
Ther
Thermostat
ON
Top Pilots (Electric Ignition)
Ranges equipped with electric igniliort wStl have the top ignitor electrodes in the same
LOCATION as the familiar (op burner standing pilots, When a top burner knob is turned
to tt_e LITE position .aLL electrodes will spark at a rate of approximately 2 112 purses
(sparks) per second,
In the event of a power failure, light the top burners by holding a lighted mntch near the
surface burner and turning on the surface burner.
