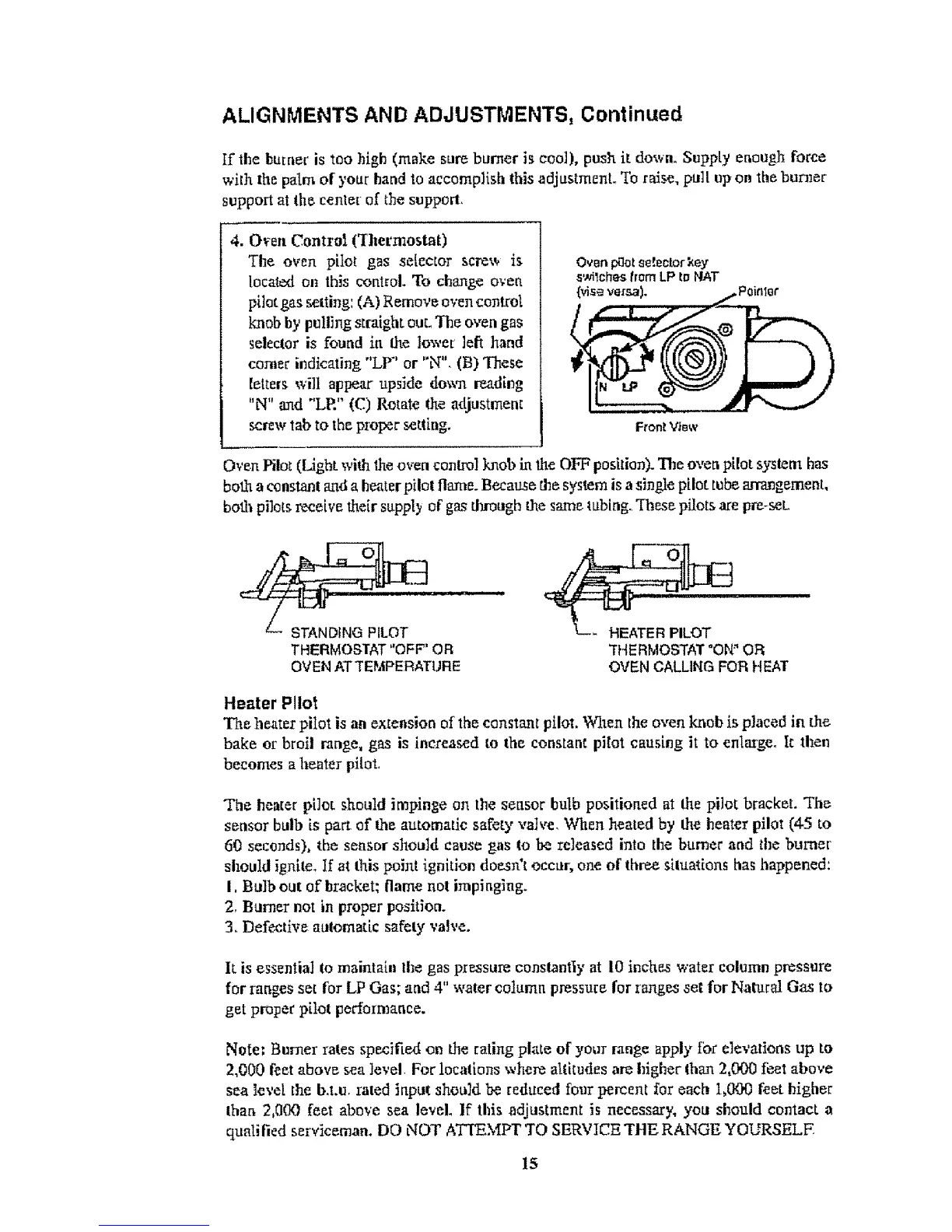

ALIGNMENTS AND ADJUSTMENTS, Continued
If lhe humor is too high (make sur_ burner is coo]), push it down. Supply enough force
with the palm o[ your hand to accomplish this adjustment. To raise, pull up on the bun_er
support at the center of the support.
4. Oven Control ('Ihermostat)
The oven piiot gas selector screx,, is
located on this control. To change oven
pilot gas setting: (A) Remove oven coztrol
"knob by pulling strai_ttt out. The oven gas
selector is found in the lower left hand
comer indicating "LP" or "N", (B)These
[etter_ will appe_ upside down reading
"N" and "LP." (C) Rotate the adjustment
screw tab to the pIx>1_r setting.
Oven I_ot so!actor ;coy
s'_Iches from LP to N._T
(_Aseversa). /poinler
/ _l:_ .r/ EL..,..=
Front V,[e,,v
Oven Pilot (Light with Lheoven control bob in the OFF position). The oven pitot system has
botha constant and a heater pilot flame. Because the system is a single pilot, tube arrangement,
boil1 pilots receive their supply of gas through file same tubing. 'These pilots are pro-soL
STANDING PILOT
THERMOSTAT "OFF' OR
OVENATTEMPERATURE
'THERMOSTAT=ON"OR
OVEN CALLING FOR HEAT
Heater Pilot
The heater pilot is an extension of the constant pilm, When the oven knob is placed in the
bake or broil range, gas is increased to the constant pRot causing it to enlalgeo It lhen
becomes a heater pilot.
The heater pi]ot should impinge on the sensor buIb positioned at the pilot bracket. "The
sensor bulb is part of the automatic safety valve. When heated by the heater pilot (,$5 to
60 seconds), the sensor should cause gas to be released into the burner and the burner
should ignite. If at this poiJlt ignition doesn't occur, one of (hre_ situations has happened:
I, Bulb out of bracket; flame not impinging.
2. Burner not in proper position.
3. Defective automatic safety vMve.
It.is essential to maintabl the gas pressure constantly at 10 incl_e_s water column pressure
for ranges set for LP Gas; and 4" water column pressure for ranges set for Natural Gas to
get proper p[tot perfolmaace.
Note: Burner rates specified on the rating plate of your range apply for elevations up to
2_000 feet above sea level For'locations where altitudes are higher than 2,000 f_t above
sea ]eve[ the b.t.u, rated irtput should be reduced four percent for each 1,000 fe_t higher
than 2,000 feet above sea level. If this _adjustment is necessary, you should contact a
qualified serviceman. DO NOT ATTEMPT TO SERVICE THE RANGE ¥GURSELE
15
