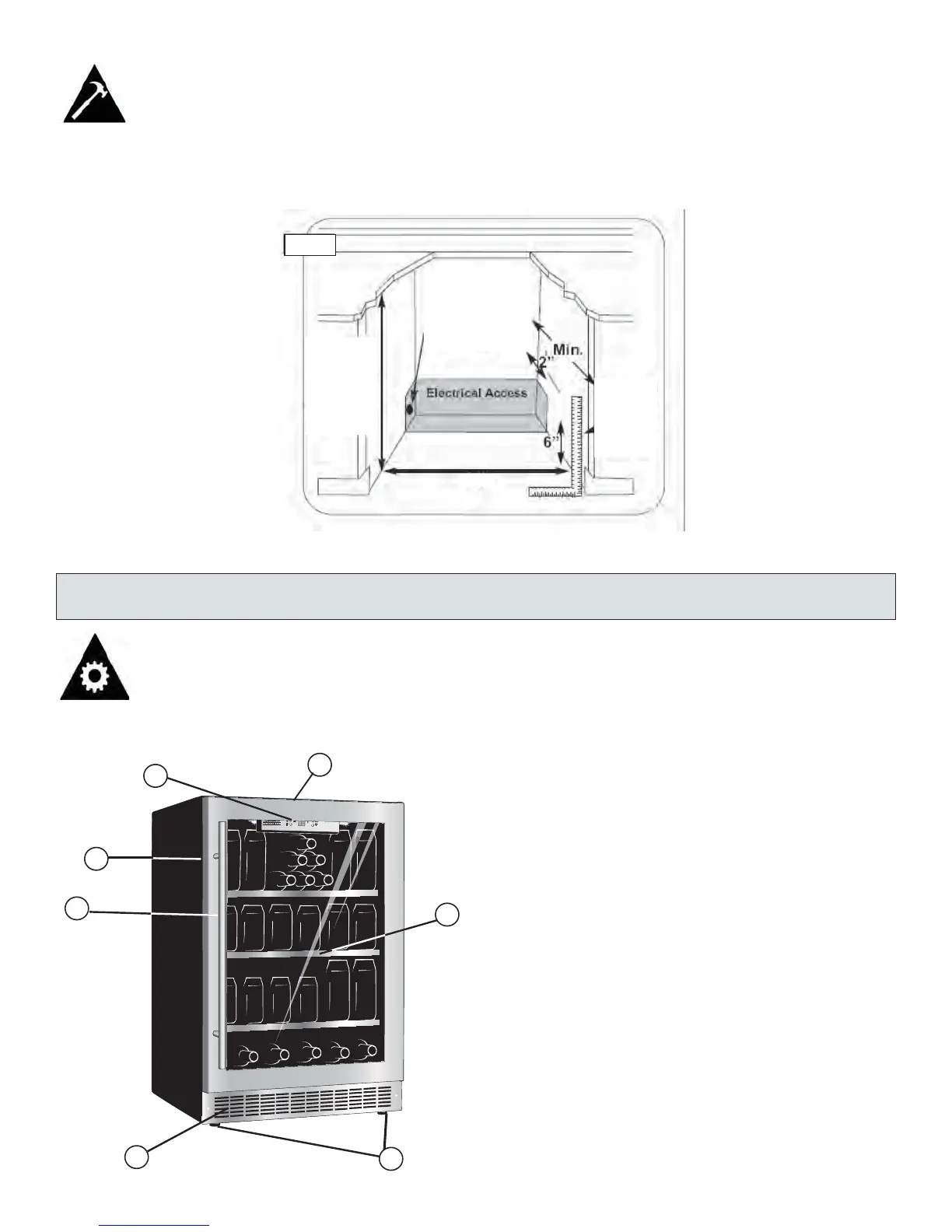

Installation Instructions
PREPARING THE ENCLOSURE (continued)
Important: The listed depth requirement for the installation is assuming that the electrical outlet is located in the adjacent
cabinetry or is fl ush mounted in the rear wall, not surface mounted in the enclosure.
1. Tempered Glass Door: Low-E glass, used to
refl ect and absorb heat.
2. Electronic Display and Controls: For viewing
and regulating the temperature of the beverage
centre.
3. Magnetic Door Gaskets: Tight fi tting seals
retain all the cooling power and humidity levels.
4. Glass Shelves
5. Handle
6. Front Mounted Exhaust: Allows for integrated
(built-in) applications.
7. Leveling Legs
8. Interior Light (not shown): Cool White LED
lighting illuminates the interior without the heat
of an incandescent bulb.
6
5
1
3
2
7
4
Electrical Access
Cabinets
Square
and
Plumb
35” From
Floor
24”
6”
1-1/2” dia. hole
*if electical outlet
is in adjacent
cabinetry
D
1
1
/2” diam. hole
* If electrical out-
let is in adjacent
cabinetry.
34-9/16” from
underside
of
countertop
to floor
Cabinets
square
and
plumb
Fig D
25”
24” min
1-3/16”
