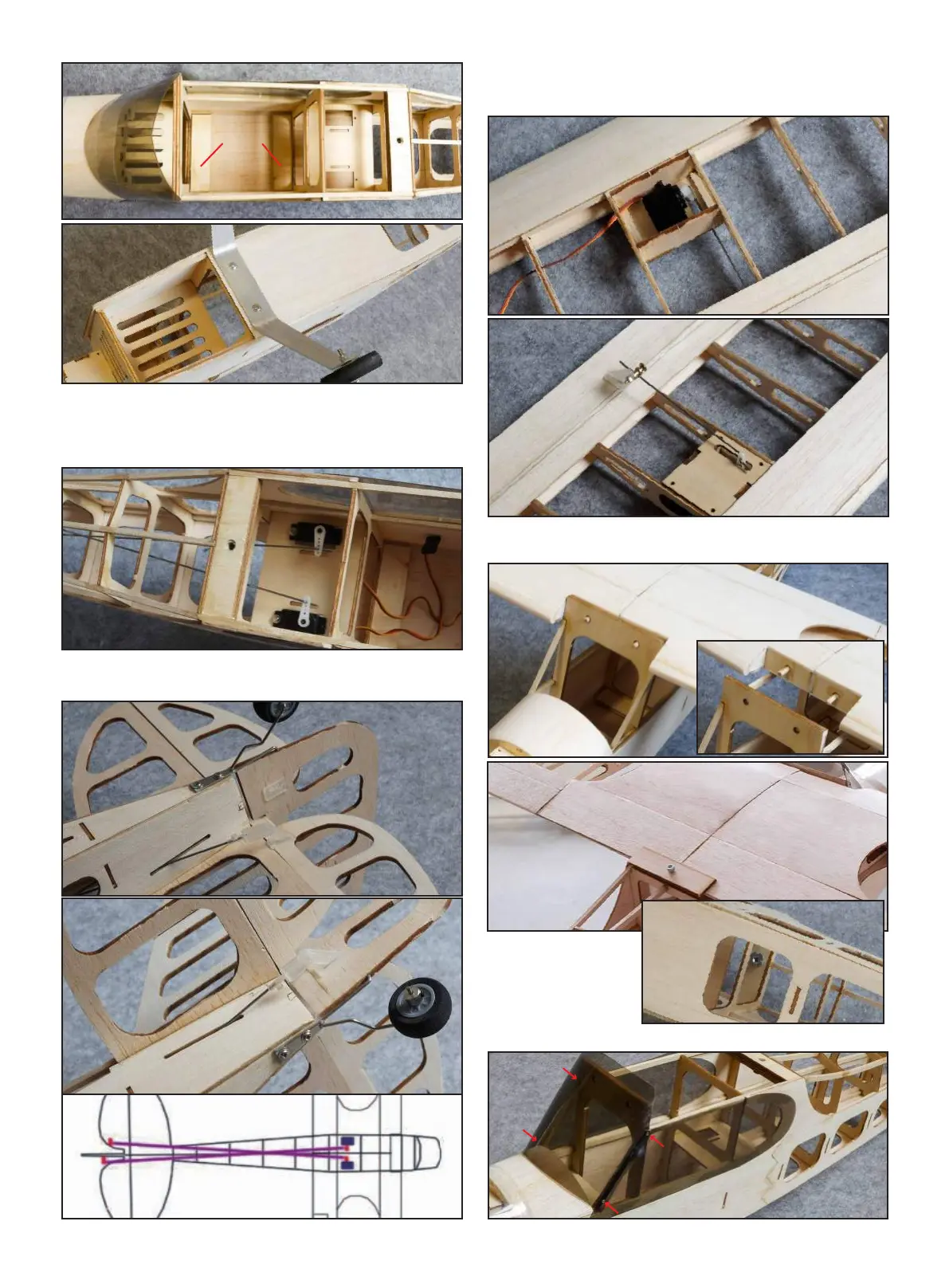

4.Assemble the components and power
4.1Assemble the servos inside the fuselage, connect the
pull rod with servo arm, and insert the other end of the
pull rod through the preserved hole of the tail end.
4.2Assemble the servo horns on the elevator and rudder,
and connect the pull rods with the horn.
4.3Assemble the servo on the wing, assemble the servo
horn on the aileron, and connect the pull rods as picture
shown.
4.4Assemble and fix the wing onto the fuselage by
screws as picture shown.
4.5Assemble and fix the windshield by screws.
B15x2
Pawn nut
Inner hexagon screws
screws
screws
5
