Sunbird
Instruction Manual
V2.0
Balsawood Airplane

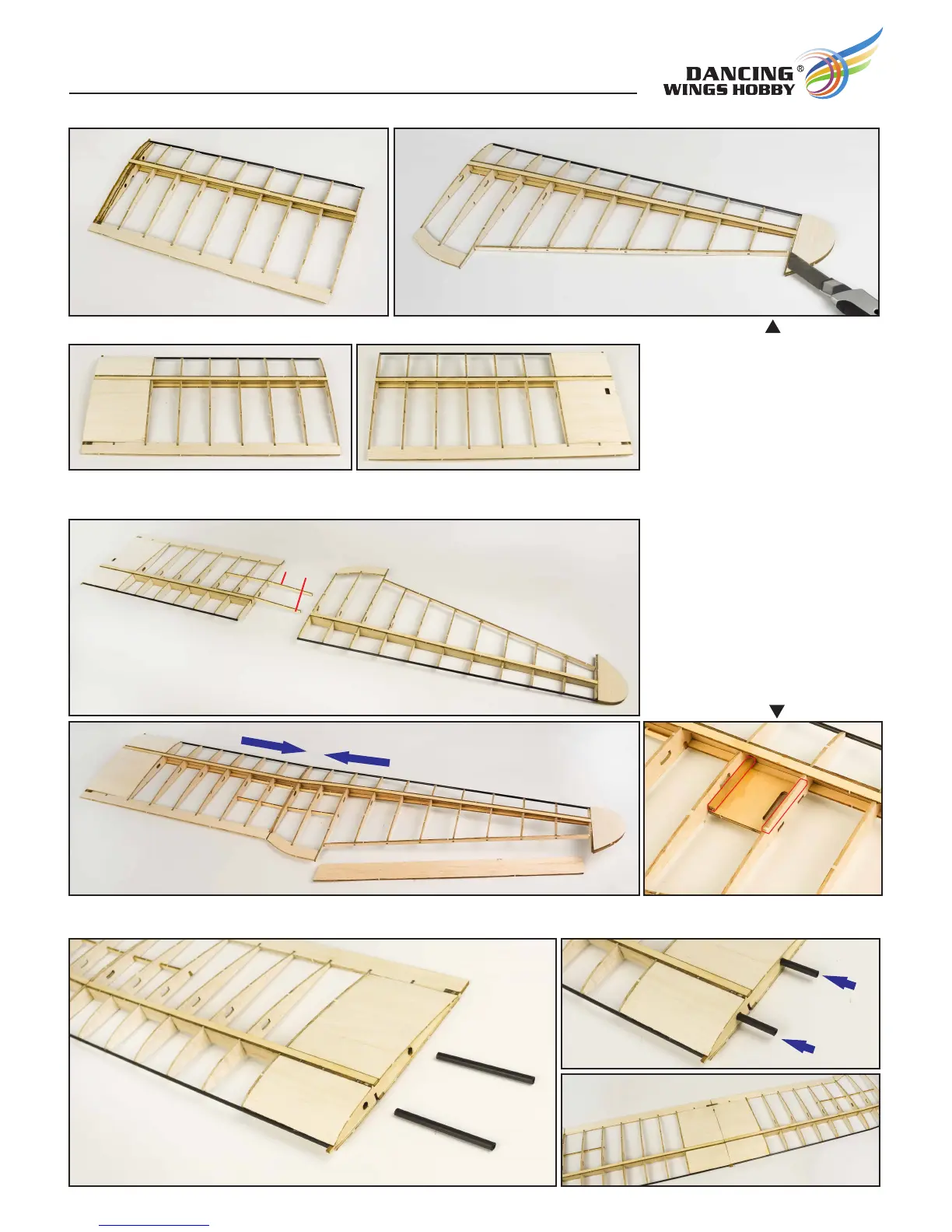

Assemble the wing as per the 1:1 plan,and take care of the straightness of the wing.
Paste the balsa cover onto the wing.
Assemble the connection part W20,connect and glue the two parts of the
wing together.
Assemble the left and right wing,connect both with the carbon tubes as picture shown below,
glue at the joints.
2.4
2.5
2.6
2.8
W26
W28-1
W28
W20
W27
W27
Paste the W17 on the wing as
picture shown,cut and polish
by knife with curve.
Cut the balsa strips with
actual length,assemble them
in place as pitcture shown
below;Assemble in same way
the other wing.
2.9
2.7
