need to polish
F6 is the small part of the aileron, pls do not
glue onto the rib.Convenient for cutting out
it after finishing aileron building.
4 5
6
7
8 9
４

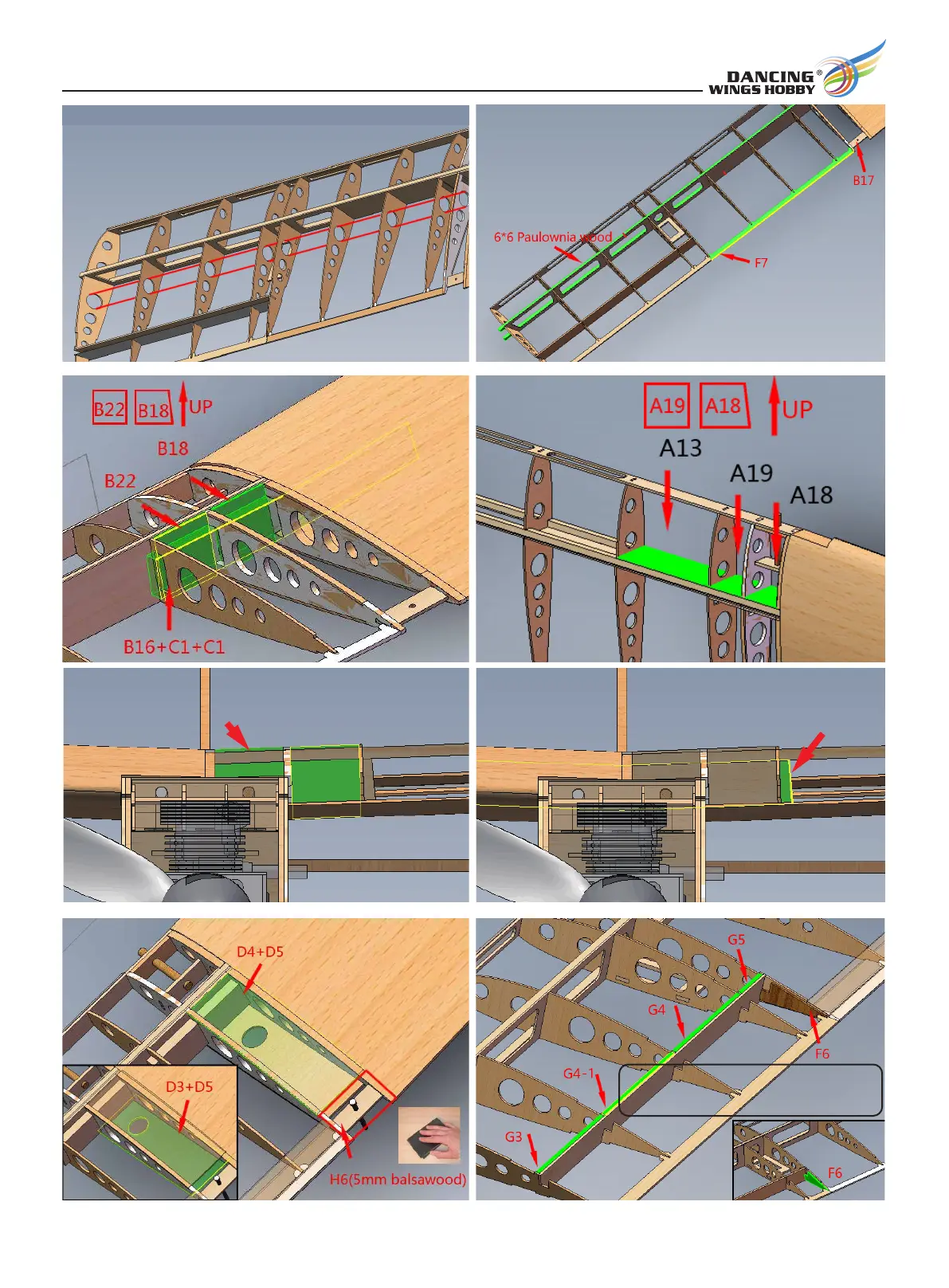

T40 Trainer Assembling Manual
Insert one hard pipe through the each
hollow-out holes marked in red above
photo,in order to maintain level of the
whole wing.
33cm
33cm47cm
47cm
Wing is anhedral design, note to install B18
bevel edges lean on inside during building.
Bolts (Plug into each other)
B16+C1+C1
B18
Cut 6*6 paulownia wood
strip in two parts. One is
33cm, another one is
47cm. Interlace them at
the top and bottom
during building.
To Next Page
