Assembly

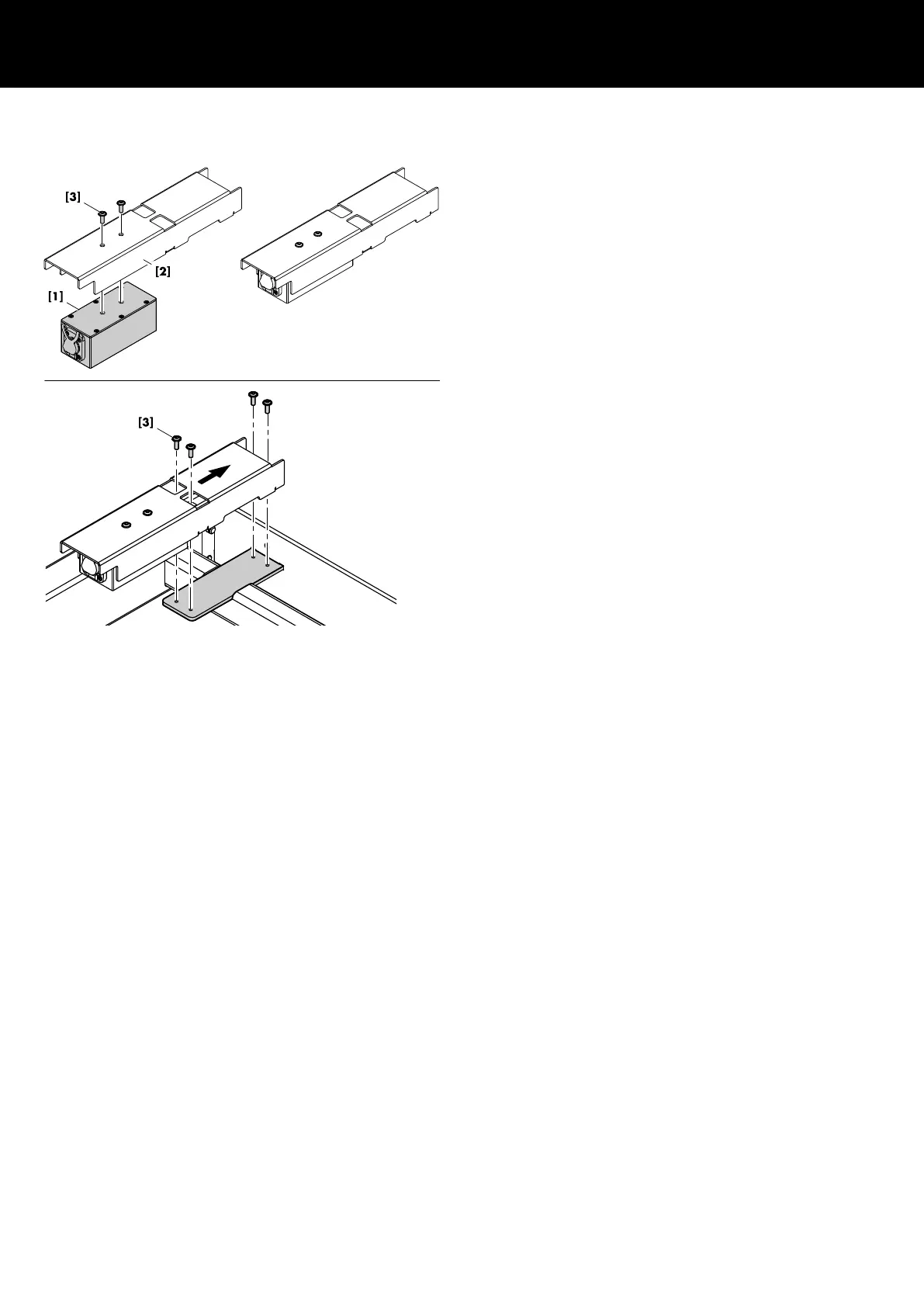

1. First attach the ArraySight sender unit [1] to the flying frame

adapter [2].

2. Fix the sender unit using two panhead screws (M4 x 12) [3].

3. Position the V flying frame onto an appropriate and flat

surface.

4. Attach the sender unit assembly to the mounting plate of the

frame with the laser unit facing towards the front of the frame.

5. Fix the sender unit assembly using four panhead screws

(M4 x 12) [3].

6. Recheck your work and ensure all screws are properly

tightened.

d&b ArraySight Manual 1.7 en 27
