1. Introduction
This manual describes the facilities and basic functions of the hardware
of the D6 amplifier. A detailed description of the D6 software (firmware)
menu structure and access is given in the D6 Software manual, which is
also provided with the D6.
1.1. Intended use
The D6 amplifier is a two channel power amplifier and controller unit. It
is designed for use with all current d&b loudspeakers except 2-Way
Active, V-Series and B2-SUB systems. A linear mode is available
allowing the D6 to be used as a linear power amplifier.
NOTICE: The device complies with the electromagnetic compatibility
requirements of EN 55103 (product family standard for audio, video,
audio-visual and entertainment lighting control apparatus for
professional use) for the environments E1 (residential), E2 (business and
commercial), E3 (outdoor use in urban areas) and E4 (outdoor use in
rural areas).
Acoustic interference and malfunctions may occur if the unit is operated
in the immediate vicinity of high-frequency transmitters (e.g. wireless
microphones, mobile phones, etc.). Damage to the unit is unlikely, but
cannot be excluded.
1.2. Scope of supply
Before starting up please verify the shipment for completeness and
condition of the unit:

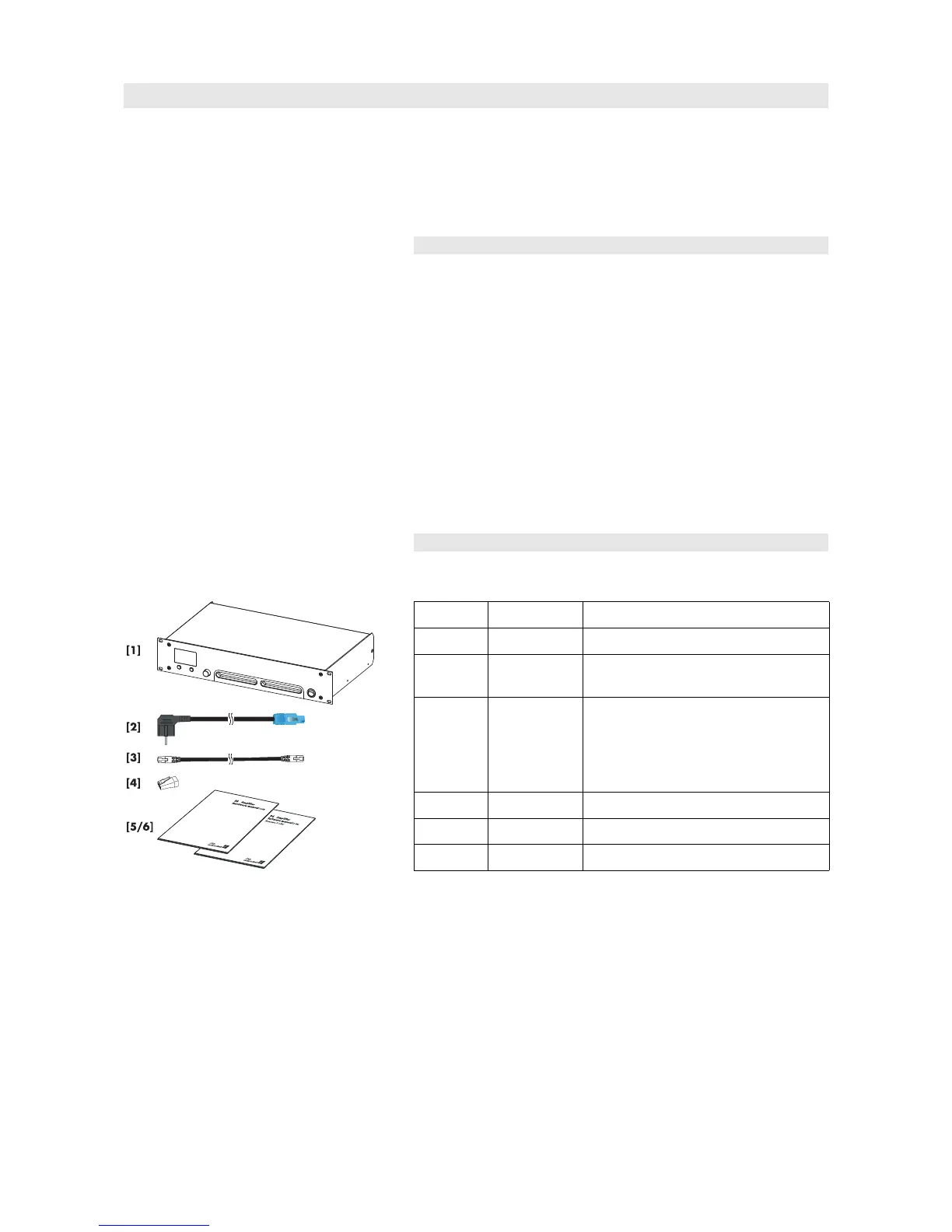

Fig. 1: D6 Amplifier, scope of supply
Quantity d&b Code Description
1 Z2700 D6 Amplifier [1]
1 Z2610.xxx Power cord [2]
D6 CEE (specific to country)
1 K6007.050 RJ45 Patch cable [3]
0.5 m (1.6 ft) CAT 6/AWG 24-STP
(shielded twisted pair) to be used for
daisy chaining multiple amplifiers within a
rack.
1 Z6116 RJ 45 M Terminator [4]
1 D2017.EN D6 Amplifier, Hardware manual [5]
1 D2018.EN D6 Amplifier, Software manual [6]
Tab. 1: D6 Amplifier, scope of supply
If there is any sign of obvious damage to the unit and/or the power
cord do not operate the unit. Please contact your local dealer from
whom you received the unit.
D6 Amplifier, Hardware manual (1.9 EN) Page 4 of 24
