D&H DH05C - Locomotive Decoder DH05 C; DH10 C; DH12 A; DH14 B; DH16 A; DH18 A; DH21 A;B; DH22 A;B; PD05 A; PD06 A; PD12 A; PD18 A; PD21 A

6
Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11
6
Locomotive/Vehicle function decoder from firmware version 3.12
5 Locomotive decoder
M1, M2 ..............Motor connection 1, 2
G1, G2 ............... Track connection 1, 2
LV, LR ................Front light, rear light (each 150 mA)
AUX1, AUX2 .....Additional function 1, 2 (each 300 mA)
VS ......................Supply voltage (also for SUSI)
ZCLK ..................SUSI clock (or AUX3 unamplified) *)
ZDAT .................SUSI data (or AUX4 unamplified) *)
GND ..................Ground (0 V)
If necessary: Connect blue wire (common return conductor) to VS.
You can connect a buffer capacitor to VS (+) and GND (-).
AUX1
AUX2
M1
M2
G1
G2
LV
LR
VS
ZCLK
ZDAT
GND

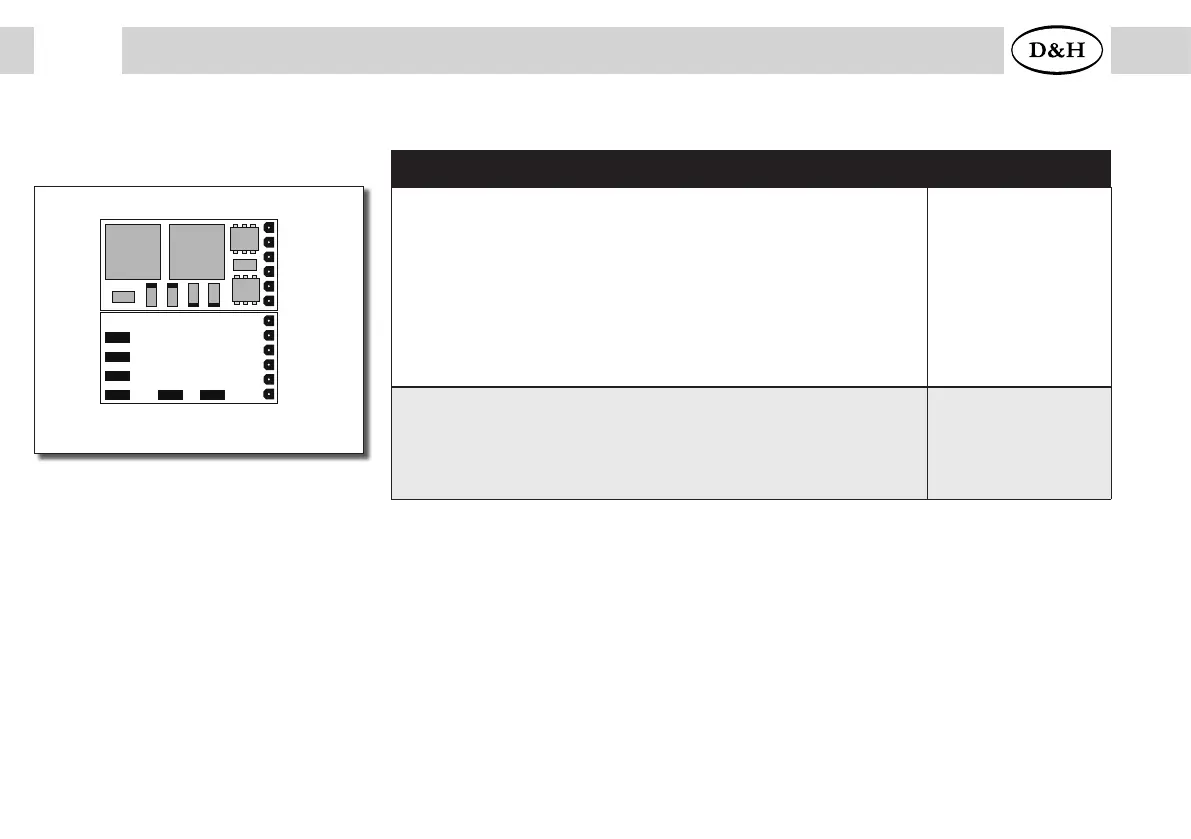

DH05C 1
st
generation
Specifications DH05C
Dimensions [mm]
Total load
Maximum motor current
Maximum operating voltage
Function outputs for light: LV, LR (dimmable)
Function outputs: AUX1, AUX2 (dimmable)
Function outputs: AUX3, AUX4
With SUSI interface (if AUX3/AUX4 deactivated)
13,2 x 6,8 x 1,4
0,5 A
0,5 A
18 V
each 150 mA
each 300 mA
unamplified *)
X
Connecting options
Without connection wires
With ribbon cable for interface per NEM651
With connection wires
DH05C-0
DH05C-1
DH05C-3
*) Unamplified function outputs: See supplement 3.
