Inputs/outputs :

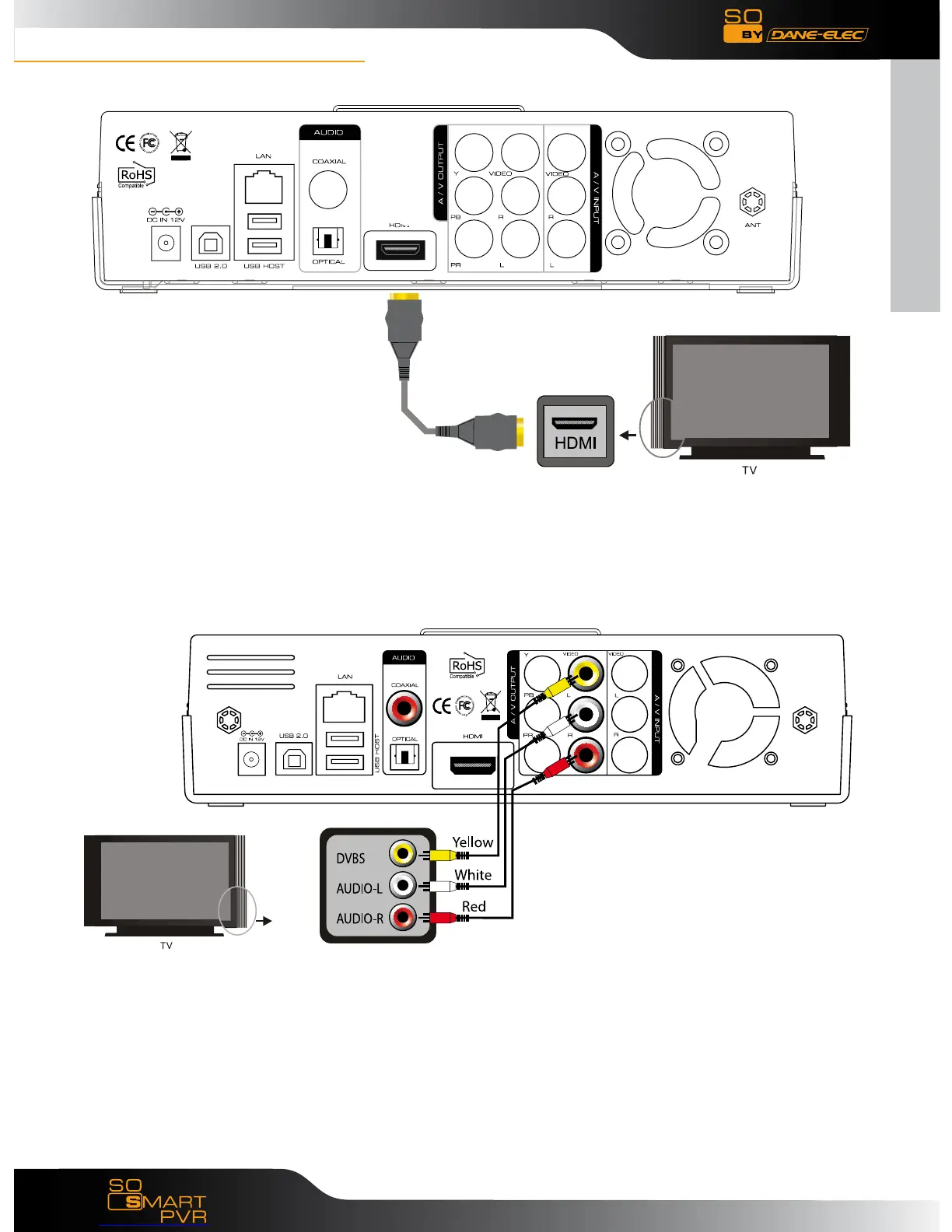

HDMI and Composite Output Connection•
HDMI Cable Connection
Connect HDMI cable to HDMI terminal at the back of product. Connect the
remaining cable terminal to HDMI terminal at the back of digital TV. Make
sure to carefully distinguish between input and output terminals.
Composite Cable Connection
Connect yellow cable for video signal to the terminal located at the back
of side of TV. Then, select external input of TV. Connect the remaining red
and white terminal cables to the left/ right and audio output terminal at
the back of the device. Then, connect red and white cables to the left/
right terminal of DTV input or component audio input located at the back
of digital TV.
