Specifications MCD Remote Operator
MG.17.E5.02 - VLT® is a registered Danfoss trademark 6

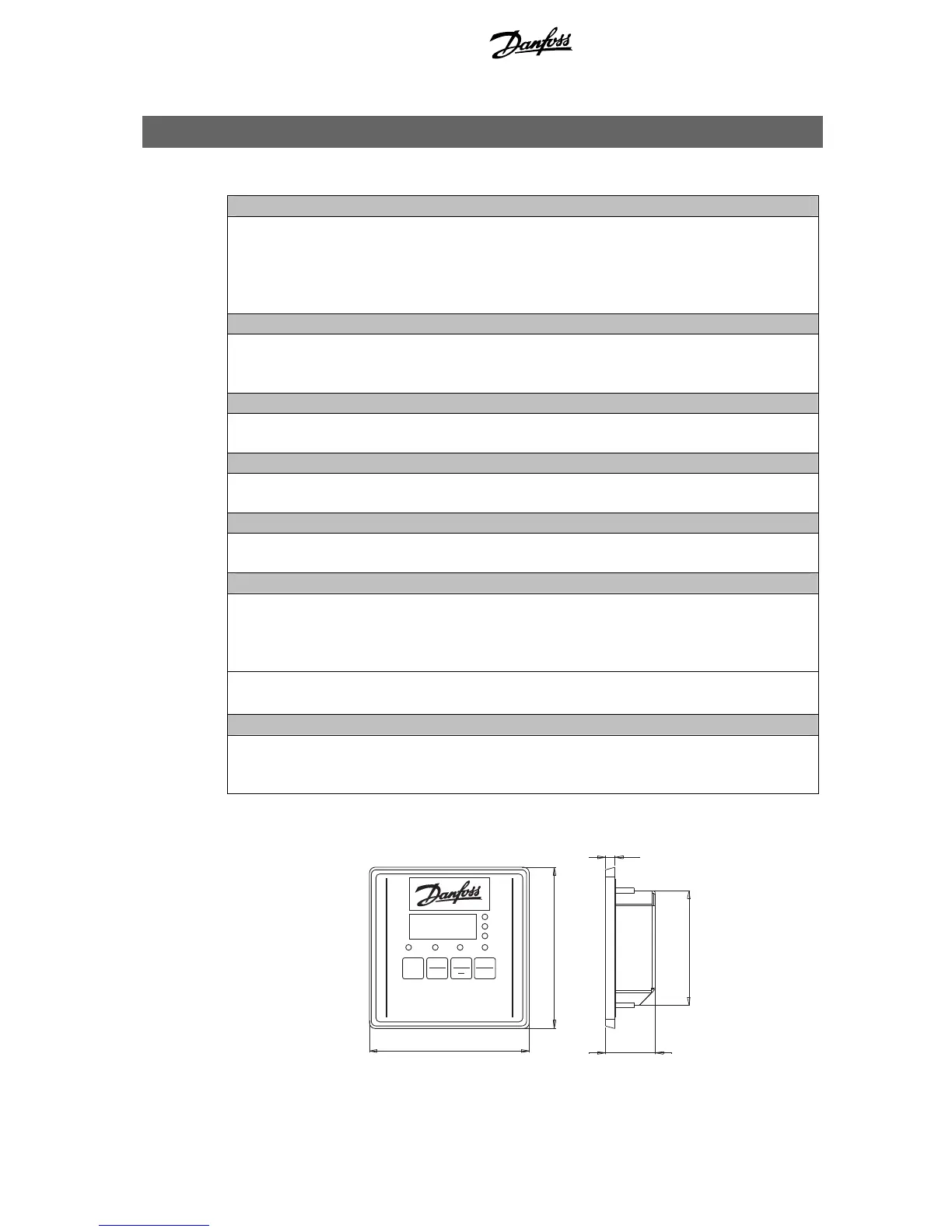

3. Specifications
3.1. General Technical Data
Enclosure
Front Panel Height ......................................................................................................................... 120 mm
Front Panel Width .......................................................................................................................... 120 mm
Inside Panel Depth (when mounted)........................................................................................ 30 mm (max)
Panel Cutout ....................................................................................................................................92 mm
2
Weight............................................................................................................................................... 450 g
Power Supply
Voltage ............................................................................................................ 18 - 30 VDC/VAC (50/60 Hz)
Consumption ........................................................................................................................ 250 mA (max)
Connection (Terminals 1, 2) ............................................................. 2 pole spring clamp connector terminals
RS485 Serial Network Port (Optional)
RS485 Network Interface ........................................................ AP ASCII or Modbus RTU protocol (selectable)
Connection (Terminals B6, B7, B8) ................................................... 3 pole spring clamp connector terminals
RS485 Serial Starter Port (Soft Starter Connection)
RS485 Soft Starter Interface ........................................................................... AP ASCII protocol as standard
Connection (Terminals B1, B2, B3) ................................................... 3 pole spring clamp connector terminals
Analog Output
Motor Current Monitoring Interface.................................................................. 4-20 mA (max burden 200 Ω)
Connection (Terminals B10, B11)...................................................... 2 pole spring clamp connector terminals
Sundry
Enclosure Rating.................................................................. IP54 or NEMA 12 when correctly panel mounted
Pollution Degree ............................................................................................................ Pollution Degree 3
Operating Temperature ..................................................................................................... - 5
o
C / + 60
o
C
Relative Humidity ..................................................................................... 5 to 95% (max non-condensing)
This product has been designed as Class A equipment. Use of this product in domestic environments may cause
radio interference, in which case the user may be required to employ additional mitigation methods.
Standards Approvals
CE ..................................................................................................................................... IEC 60947-4-2
UL and C-UL ................................................................................................................................... UL 508
C9 .................................................................................................................................... IEC 60947-4-2
3.2. Dimensions
177HA266.11
120
120
37.5
7.0
85.0
SOFT STARTER
START
STOP
DATA
PROG
+
RESET
START RUN TRIP RS485
AMPS
TEMP
CODE
