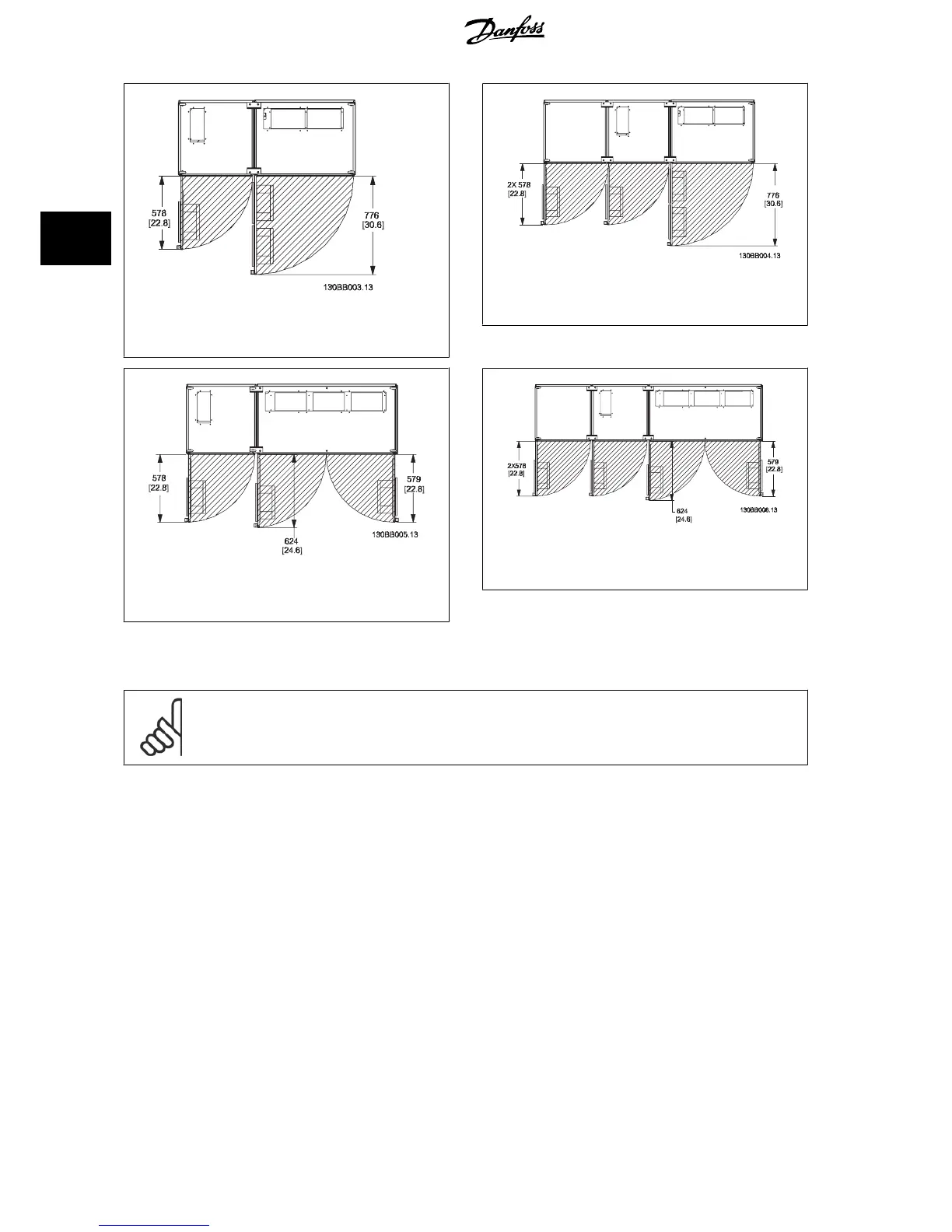

Illustration 3.5: Space in front of IP21/IP54 enclosure type,
frame size F1
Illustration 3.6: Space in front of IP21/IP54 enclosure type,
frame size F3
Illustration 3.7: Space in front of IP21/IP54 enclosure type,
frame size F2
Illustration 3.8: Space in front of IP21/IP54 enclosure type,
frame size F4
Wire access
Ensure that proper cable access is present including necessary bending allowance. As the IP00 enclosure is open to the bottom cables must be fixed to
the back panel of the enclosure where the frequency converter is mounted, i.e. by using cable clamps.
NB!
All cable lugs/ shoes must mount within the width of the terminal bus bar
3 Mechanical Installation ADAP-KOOL
®
Drive AKD 102 High Power
20
MG.11.O1.02 - ADAP-KOOL
®
is a registered Danfoss trademark
3
