3.3.7 IP21 Drip Shield Installation (Frame size D1 and D2 )
To comply with the IP21 rating, a separate drip shield is to be
installed as explained below:
• Remove the two front screws
• Insert the drip shield and replace screws
• Torque the screws to 5,6 Nm (50 in-lbs)

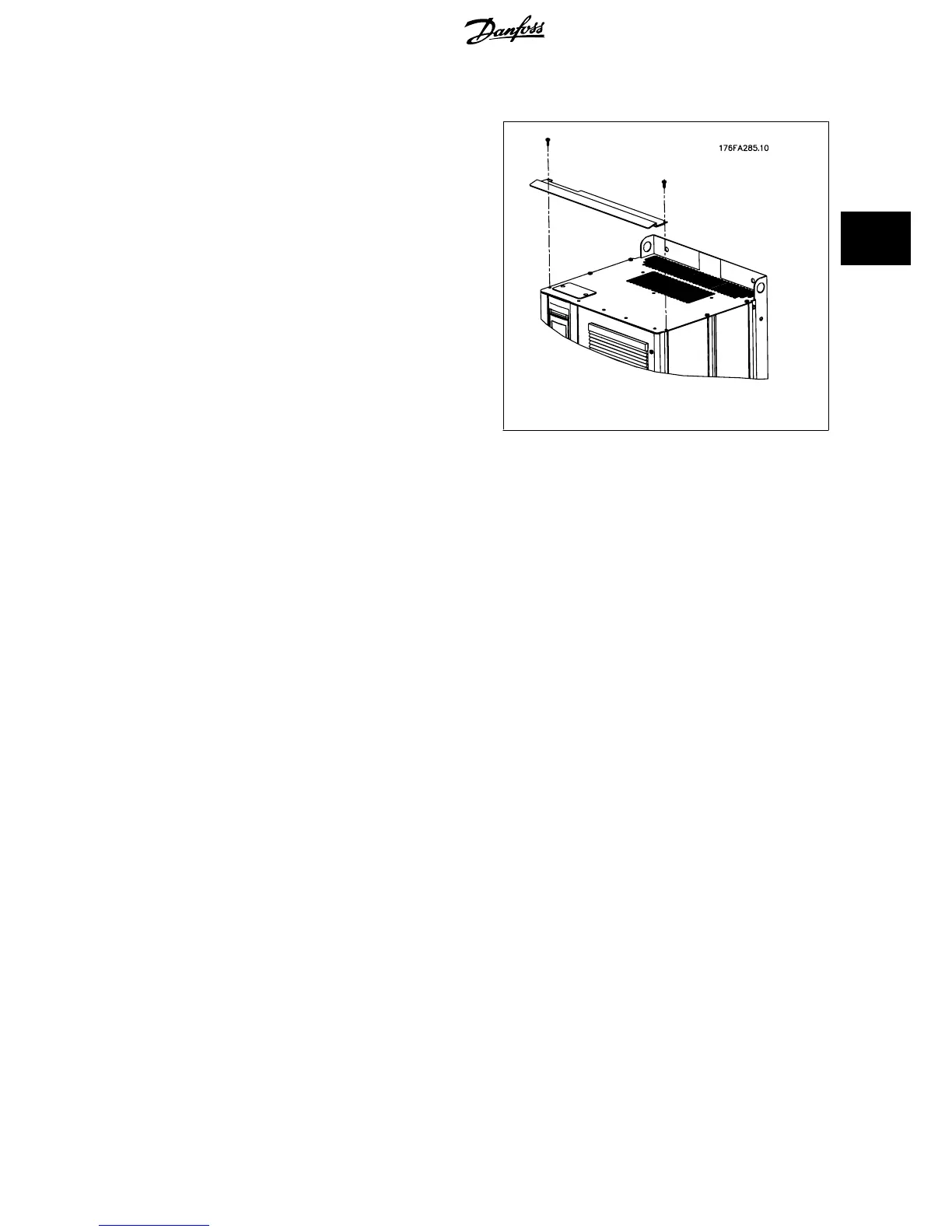

Illustration 3.15: Drip shield installation.
ADAP-KOOL
®
Drive AKD 102 High Power 3 Mechanical Installation
MG.11.O1.02 - ADAP-KOOL
®
is a registered Danfoss trademark
27
