180R9267 / IOM APP 1.5-3.5 Appendices - v04 / 11.2013
Instruction Recommended service intervals for APP pumps
2
180R9199 / 521B1135 / DKCFN.PI.013.C1.02 / 01.2013
1. General information This guideline provides information on the
recommended service intervals. The recommen-
dation is based upon good engineering practice
and on experience gained from operation even
under extreme conditions.
The recommendation is for guidance only.
2. Design/features Danfoss APP pumps are designed for long
operation and low maintenance and life cycle
costs.
Danfoss guarantees 8,000 hours service free
operation, however max. 18 months from date of
production. After 8,000 operation hours it is
recommended to inspect the pump and replace
worn parts, if any.
If the Danfoss recommendations concerning
system-design (see our data sheet) are not
followed, the service life of the APP pumps might
be aected.
The recommended service intervals on the
dierent parts in the APP pumps appear from the
table below:
1. General information
2. Design/features
3. Appendix 1
* depends on pump size
Pos. Qty. Description Material Service interval
1 1 Housing, main bearing Duplex, PEEK No need for service
11, 125,
211*
1 Mounting ange/
end ange
Wetted part: Duplex
Dry part: AISI 316L
No wear part
121, 181* 1 Port ange Duplex No wear part
31 1 Swash plate Super Duplex 40,000 hours
66 5/7/9 Piston Super Duplex and PEEK Recommended inspection
on a yearly basis and
evaluated acc. to app. 1
92 1 Valve plate Super Duplex 24,000 hours
91 1 Port plate Super Duplex, PEEK 24,000 hours
61 1 Cylinder barrel Super Duplex 40,000 hours
65 1 Retainer plate Super Duplex 24,000 hours
64 1 Retainer ball Super Duplex 40,000 hours
71 1 Retainer guide Super Duplex 40,000 hours
62 1/4 Spring Duplex 40,000 hours
63 1 Spring guide Duplex or PP 40,000 hours
142 1 Stop for shaft seal PP No wear part
124, 215* 1 Shaft seal Hastelloy and NBR It is good practice to
change the seal after each
disassembly of the pump
125 1 Cover/ange for shaft seal Super Duplex No wear part
93 5/7/9 Back-up ring PTFE 24,000 hours
* O-ring (overall) NBR 24,000 hours
* Screw (overall) AISI 316 No wear part
* Pin (overall) AISI 316, Duplex or PEEK No wear part
152 1 Valve cone (ushing valve) Duplex or PEEK 40,000 hours
3, 129* 2 Bleeding screw Duplex No wear part
67 1 Key AISI 316 40,000 hours
Table of Contents
Recommended service
intervals for APP pumps
(180R9199)
Instruction Recommended service intervals for APP pumps
3
180R9199 / 521B1135 / DKCFN.PI.013.C1.02 / 01.2013
3. Appendix 1 Pistons:
The pistons are the heart of the pump regarding
service.
If the pistons break down, the pump will suer a
breakdown.
In case of doubt - the pistons must be replaced.

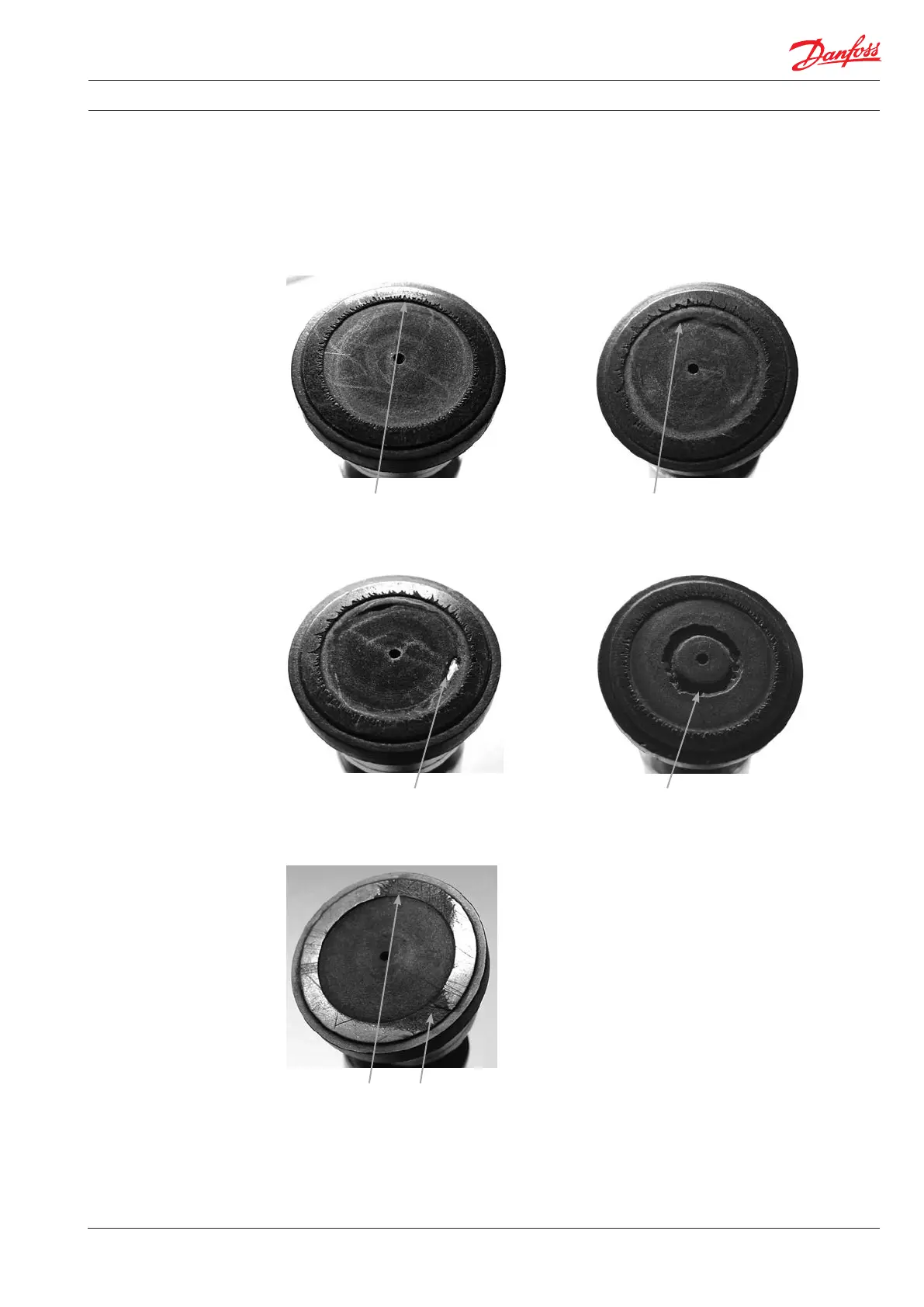

The pictures below is ment as a guideline for
evaluating the wear of the sliding surface.
Cavitation of the piston shoes.
New inspection is required in 3,000-4,000 hours.
Cavitation of the piston shoes.
All pistons must be replaced within the next
500-1,000 hours.
Cavitation of the piston shoes.
All pistons must be replaced within the next
100-200 hours.
Cavitation of the piston shoes.
All pistons must be replaced immediately.
Abrasive wear of the piston shoes.
All pistons must be replaced immediately.
