Avoid positioning the heat pump in a corner as the surrounding walls may amplify its noise. It is also important to
adjust the heat pump using the adjustable feet so that it is horizontal to the base.
4.3.2 Space requirement
Caution! The heat pump must not be enclosed as the temperature inside the cabinet becomes extremely
high.

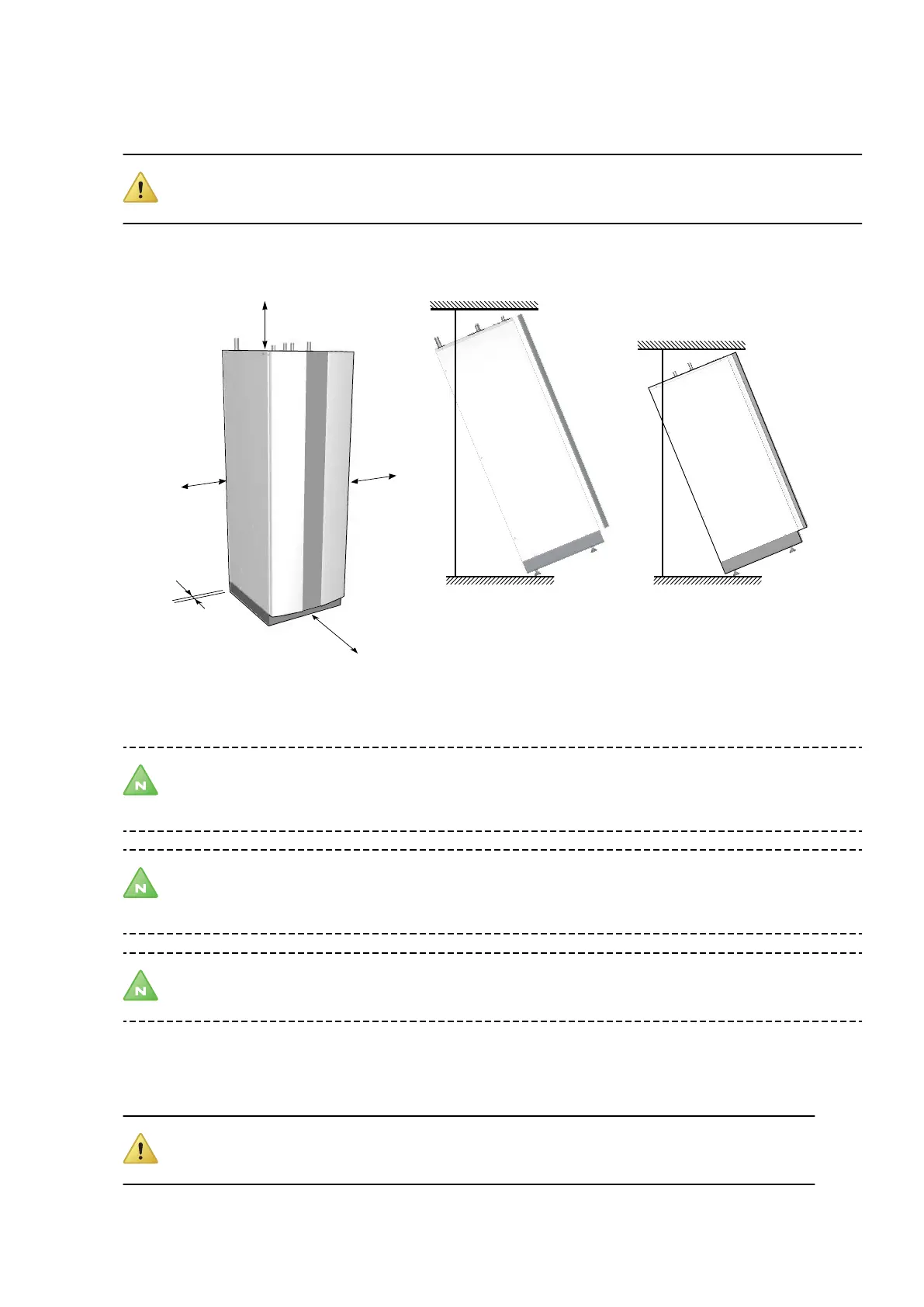

To facilitate the installation and subsequent testing and maintenance there must be sufficient free space around
the heat pump in accordance with the following image:
300 mm
300 mm
300 mm
10 mm
600 mm
4.3.3 Setting up
Note! The heat pump has feet that can be adjusted to compensate for irregularities in the surface on
which it is sitting. If the surface is so irregular that the feet cannot compensate for it, the installation
engineer must remedy this.
Note! It is recommended that the condensation drain is installed from the drip tray’s drain pipe by lying
the heat pump down. The drain pipe opens through a hole in the base plate and has a Ø10 mm hose
connection.
Note! If the heat pump has been laid down it is recommended that it stands upright for at least an hour
before commissioning.
4.3.4 Removing the front cover
Caution! Do not damage the electrical wiring for the display when the front cover is removed!
16 – Installation instructions VMBMA1002
