Danfoss DHP-AQ Installation Instructions

100 mm
~900 mm
b
c
a
7
5
4
3
6
1
8
2

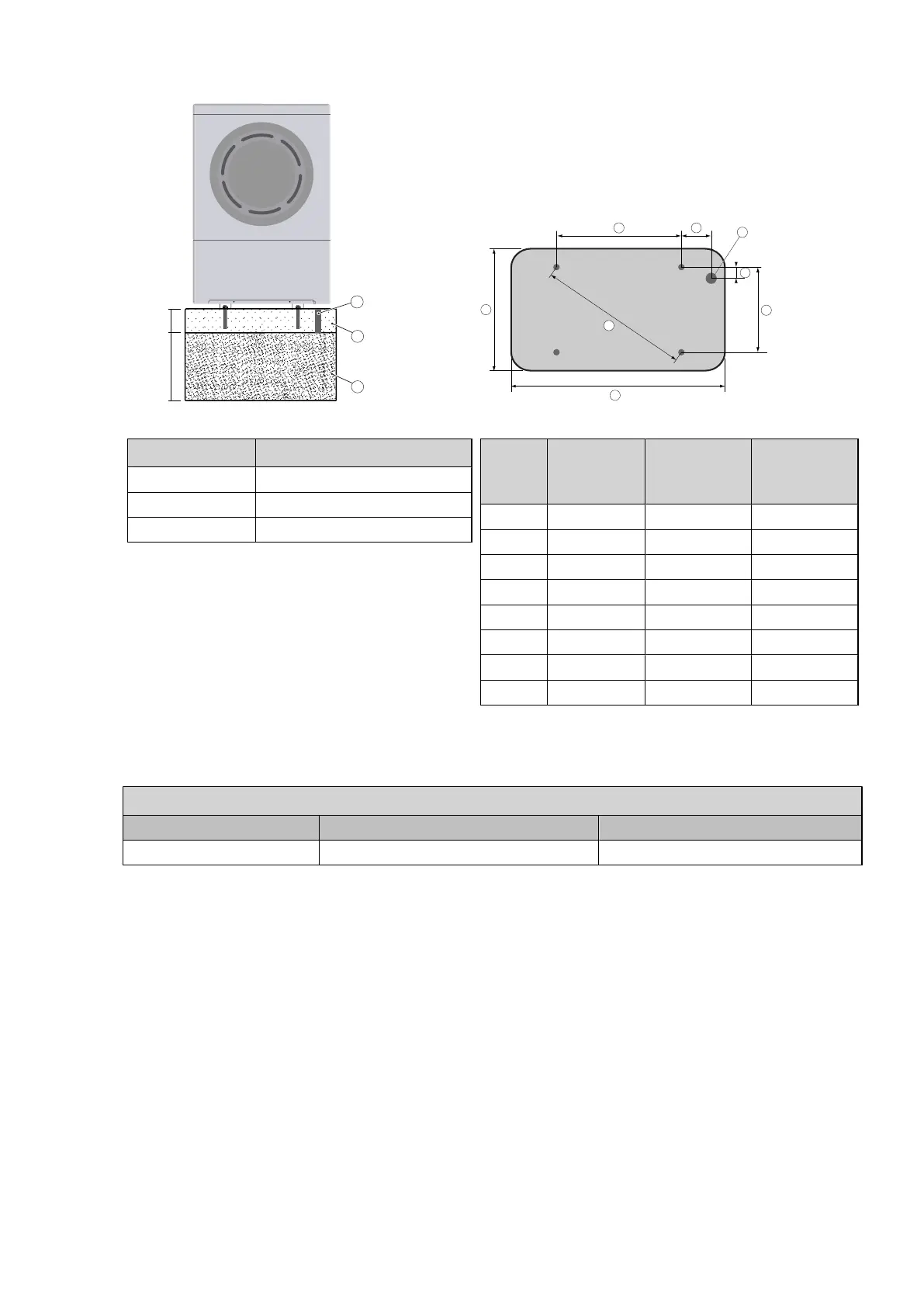

Position Description
a Drainage hole
b Foundation
c Gravel
Meas-
ure-
ments
6-9 kW 11-13 kW 16-18 kW
1 450 mm 470 mm 710 mm
2 424 mm 480 mm 480 mm
3 618 mm 672 mm 857 mm
4 130 mm 190 mm 145 mm
5 61 mm 65 mm 65 mm
6 ~1,000 mm ~1,200 mm ~1300 mm
7 ~650 mm ~720 mm ~720 mm
8 Ø 65 mm Ø 65 mm Ø 65 mm
Bolt size
6-9 kW 11-13 kW 16-18 kW
M10 (4x) M12 (4x) M12 (4x)
10 – Installation instructions VMGFD102
