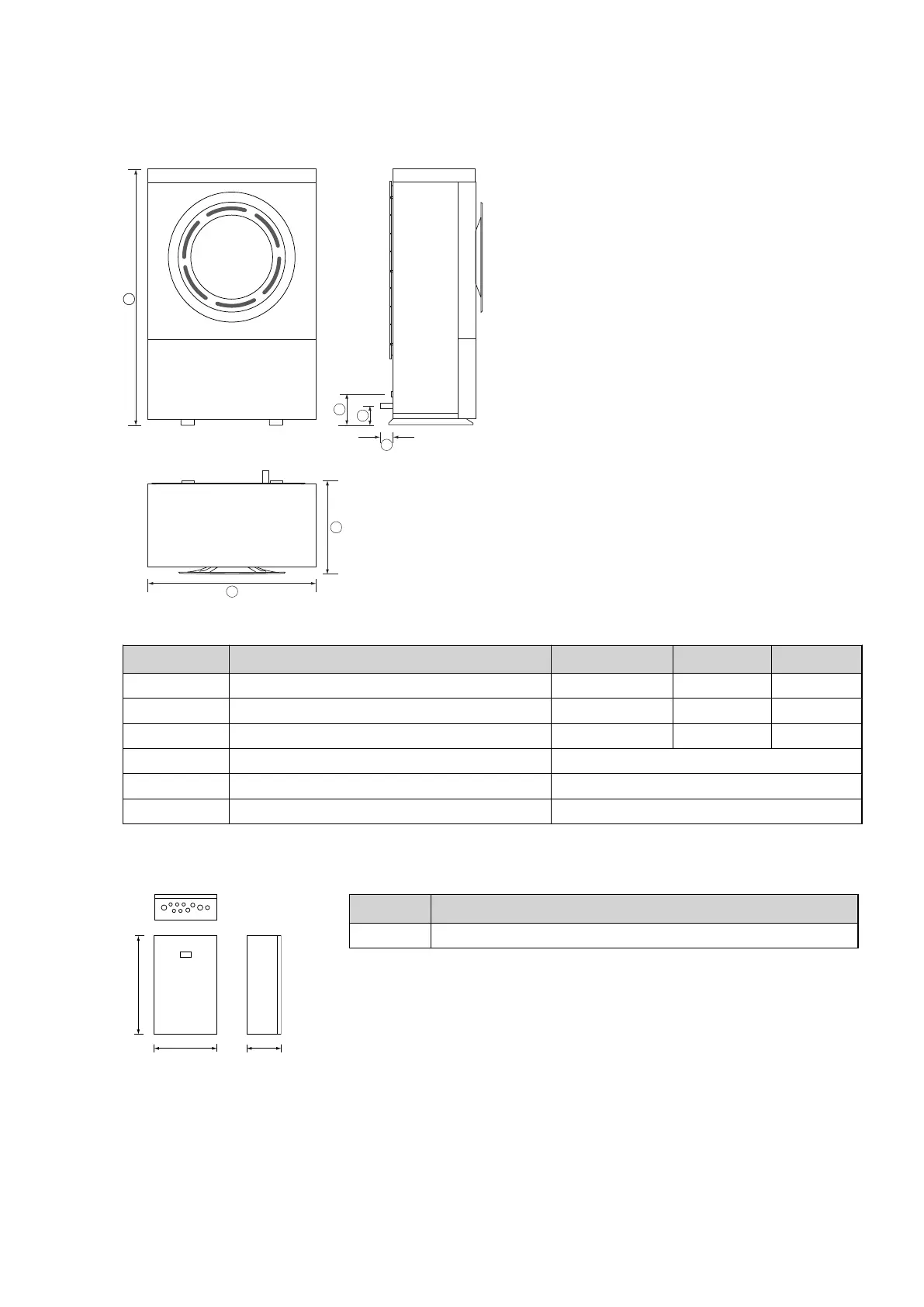

4 The heat pump
4.1
Dimensions and connections
33
5
4
6
1
2
Position Description 6-9 kW 11-13 kW 16-18 kW
1 Width 856 mm 1,016 mm 1,166 mm
2 Depth 510 mm 564 mm 570 mm
3 Height 1,272 mm 1,477 mm 1,557 mm
4 Height to supply line pipe, 28 mm Cu 155.5 mm
5 Height to return line pipe, 28 mm Cu 96.5 mm
6 Length max protruding pipe 30 mm
Control unit DHP-AQ Mini
Position Description
1 Lead-in for supply, sensor and communication cables
Control unit DHP-AQ Midi
Installation instructions VMGFD102 – 13
