Danfoss DHP-AQ Installation Instructions

Factory setting: 2°C, range: 1°C – 4°C

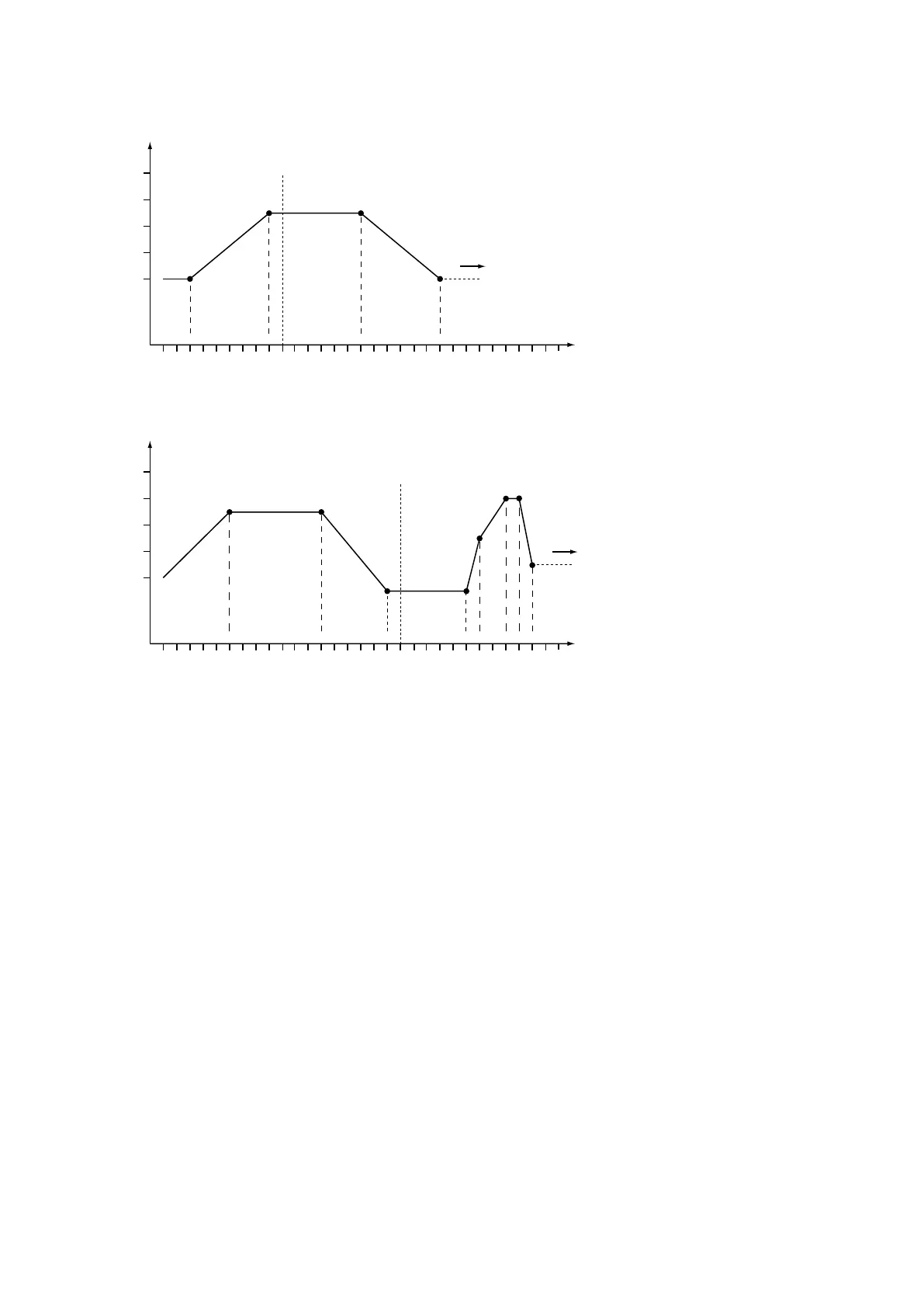

Example concrete drying
T˚C
Dn
1 5 10
15
20
25 30
20
30
40
50
60
T1 T4
T2 T3
D1 D2 D3 D4
Day: 9/21
Hysteresis: 2°C
No. of points: 4
Point settings:
Point 1: T1 20°C, D1 2
Point 2: T2 45°C, D2 8
Point 3: T3 45°C, D3 15
Point 4: T4 20°C, D4 21
T˚C
Dn
1 5 10
15
20
25 30
20
30
40
50
60
T1
T4
T2
T3
D1 D2 D3 D4D5 D6D7D8
T5
T6 T7
T8
Day: 18/28
Hysteresis: 2°C
No. of points:8
Point settings:
Point 1: T1 45°C, D1 5
Point 2: T2 45°C, D2 12
Point 3: T3 15°C, D3 17
Point 4: T4 15°C, D4 22
Point 5: T5 35°C, D1 5
Point 6: T6 50°C, D2 12
Point 7: T7 50°C, D3 17
Point 8: T8 25°C, D4 22
46 – Installation instructions VMGFD102
