5.2.3.1 Example system solution 3
System solution for DHP-H, DHP-H Opti, DHP-C, DHP-A, DHP-A Opti.

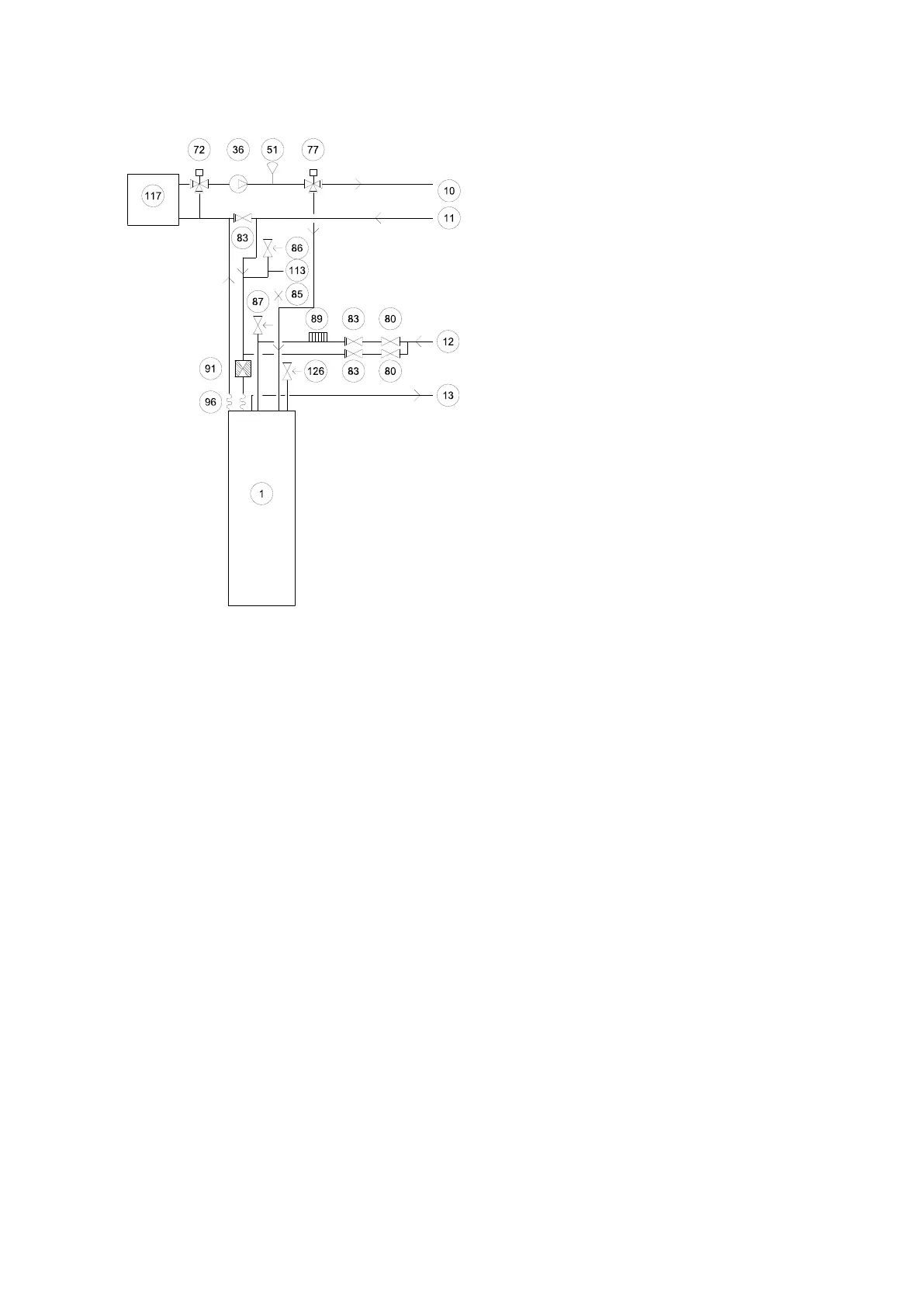

Figure 24. Example system solution 3
Symbol explanation
1 Heat pump
10 Supply line
11 Return line
12 Cold water
13 Hot-water
36 Circulation pump
51 Supply line sensor, moved out from heat pump
72 Additional shunt
77 Reversing valve
80 Shut-off valve
83 Non-return valve
85 Venting valve
86 Safety valve expansion heating system
87 Safety valve cold water 9 bar
89 Vacuum valve
91 Strainer
96 Flexible hose
113 Expansion heating system
117 External auxiliary heater
126 Safety valve for temperature and pressure (only
applies to certain models)
30 – Installation instructions VMBMA1002
