6.5 Connect outdoor unit, DHP-A, DHP-AL
Caution! The power cable may only be connected to the terminal block intended for this purpose. No
other terminal blocks may be used!
1. Route the power cable through the opening in the top panel of the heat pump to the terminal blocks.
2. Connect the power cable to the terminal block.
Outdoor unit Heat pump Symbol explanation
N/220
211
213
104
218
386
387
125
N/220
126
N/220
127
PE
220/N
211
213
283
104
218
386
387
125
4
5
7
8
9
1
2
3
6

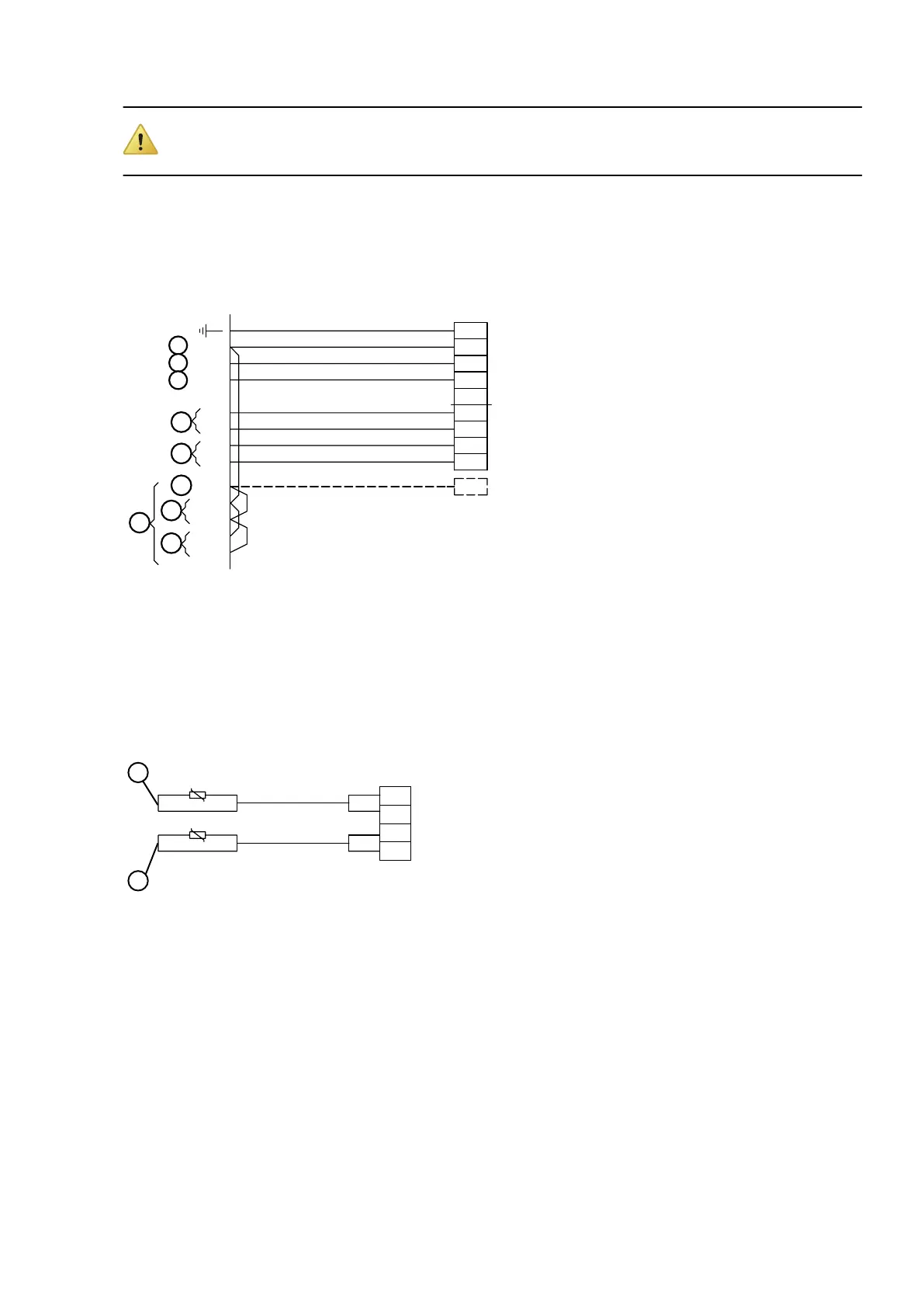

Figure 42. Connection outdoor unit
1 Neutral
2 Fan high speed
3 Fan low speed
4 Motor protection fan
5 Defrost sensor
6 Accessories
7 Heating, drip tray
8 Heating cable
9 Accessories
6.6 Connect temperature sensor hot water, DHP-L
Sensor for hot water and hot water peak from external water heater is connected in the following way to DHP-L,
DHP-L Opti, DHP-L Opti Pro.
Symbol explanation
Figure 43. Connection temperature sensor hot water
1. Sensor hot-water
2. Sensor hot-water top
6.7 Changing the language in the control computer
If necessary, change the language in the control computer menu system
1. Ensure that the main circuit breaker is on.
2. Open the INFORMATION menu.
3. Change language in the control computer menu INFORMATION -> LANGUAGE - ENGLISH, select language
with + or -.
Installation instructions VMBMA1002 – 41
