used for all pipe connections to avoid the transmission of vibrations. Flexible hoses are available to purchase as

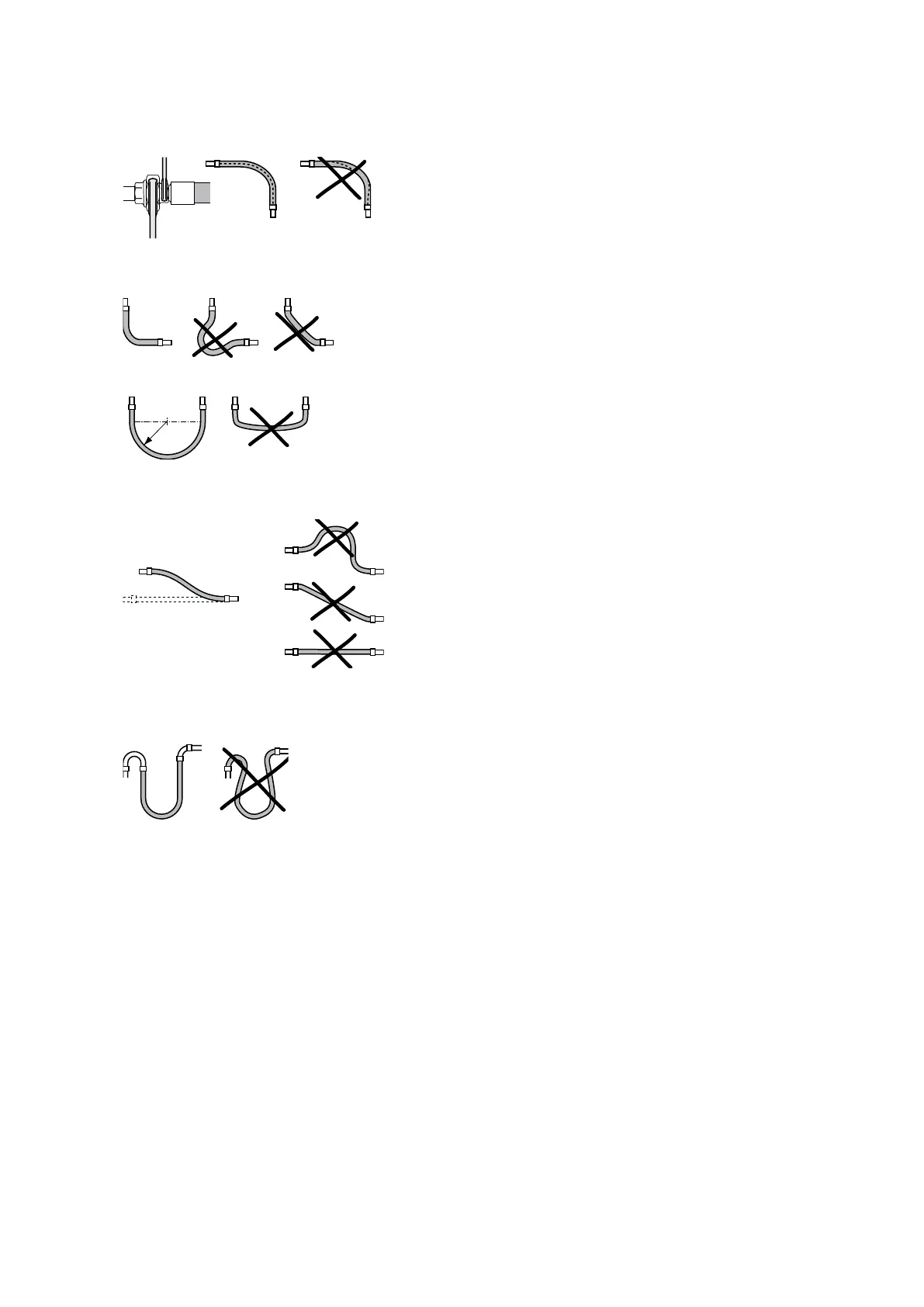

accessories. The figures below show how appropriate and inappropriate installations look using this type of hose.
To avoid noise caused by pipe mounting, a rubber-coated pipe clamp should be used to prevent the transmission
of vibrations. However, installation should not be too rigid and the pipe clamp must not be too tight.
Figure 34. Do not twist the flexible hoses as they are installed. At threaded connections, use a counterhold spanner
Figure 35. Cut the hose to the correct length to avoid excess bowing-out or stretching at bends.
Figure 36. Cut the hose to the correct length to avoid excess bowing-out or stretching and offset the ends so that the
hose is installed completely straight.
Figure 37. Use fixed pipe bends to avoid excess stress on bends next to connections
Installation instructions VMBMA1002 – 37
