Danfoss DHP-C Installation Guide

5.3.1 Connection brine
Caution The brine circuit is pressurised to max 1,5 bar for DHP-H, DHP-L and DHP-C and max 0,8 bar for DHP-A.

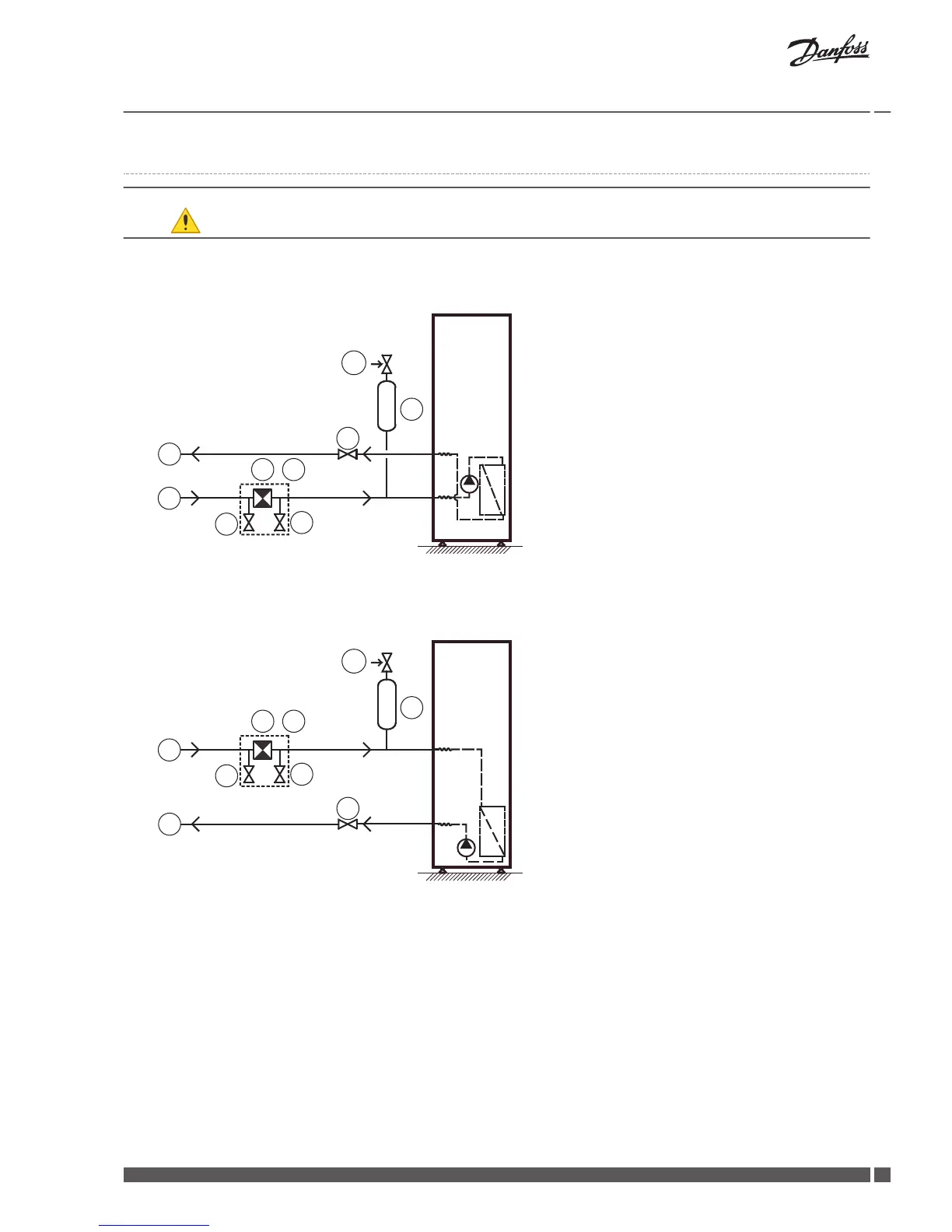

Connection brine DHP-H, DHP-L and DHP-C Opti
122
121
80
B
C
A
94
111
100
80 Shut-off valve
94 Filling device
100 Safety valve
111 Bleed and expansion tank
121 Brine in
122 Brine out
A Shut-off valve (part of 94)
B Shut-off valve (part of 94)
C Dirt strainer with shut off valve (part of 94)
Connection brine DHP-C
122
121
80
B
C
A
94
111
100
80 Shut-off valve
94 Filling device
100 Safety valve
111 Bleed and expansion tank
121 Brine in
122 Brine out
A Shut-off valve (part of 94)
B Shut-off valve (part of 94)
C Dirt strainer with shut off valve (part of 94)
Installation Guide Domestic heat pumps
Danfoss Heating Solutions VMGFQ102
27
