Tilslutningseksempler
Connection examples
Anschlußbeispiele
Exemples de raccordement
Ejemplo de conexiones

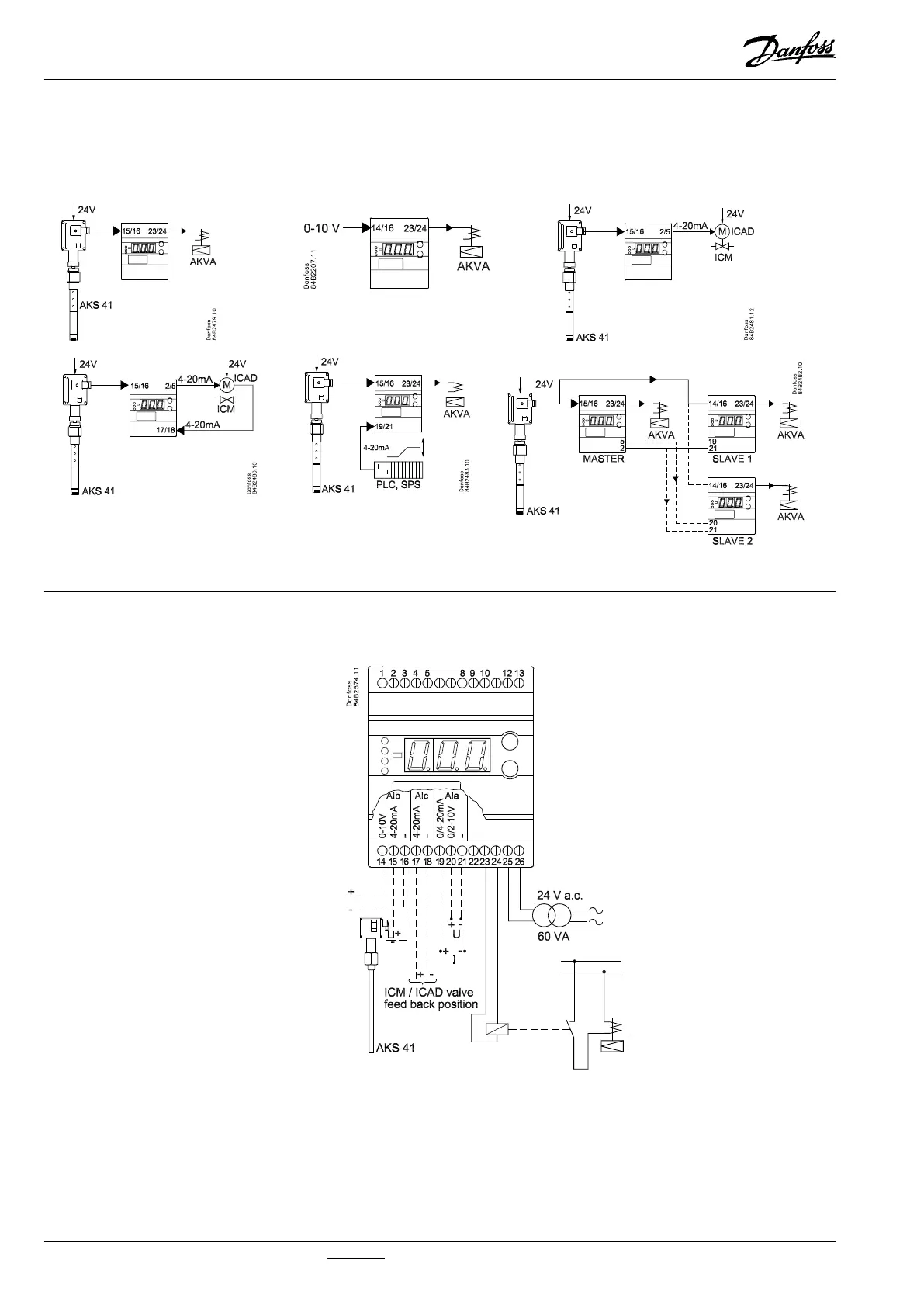

EKC 347 – ON/OFF Application. Open/Close solenoid valve with coil 110 V
Voltage : 110 V a.c
Auxiliary relay,
with coil : 24 V a.c
Solenoid with coil :
110 V a.c
