Danfoss RA 2000

DKCD VD.51.Q1.12 © Danfoss 10/2003 3
7 9,5 14 17 20 °C
l ¬ 123•
5 7,5 12 15 18 °C
7 9,5 14 17 20 23 26 28°C
l ¬ 12••3••4 5l
5 7,5 13 15 18 21 24 26°C
10 14 18 22 26 30°C
¬ 1 2•••3•••4 5
8 12 16 20 24 28°C
¬ = Frost protection setting
RA 5062, RA 5065, RA 5068
RA 2914 RA 2916
RA 2920, RA 2922
RA 2910, RA 2912
To support the range of RA2000 radiator
thermostats, a wide selection of spare parts and
accessories for both sensors and valve bodies is
available. The table above lists the more popular
parts including fittings.
Replacement Gland Seals
All Danfoss radiator thermostats manufactured
since the early 1960’s have gland seals which are
replaceable without the need to drain down the
system.
Replacement Sensors for earlier Danfoss
Thermostats
In order to provide a service and upgrade option for
earlier RAV and RAVL valve bodies, a range of
service sensors is available.
Please request details.

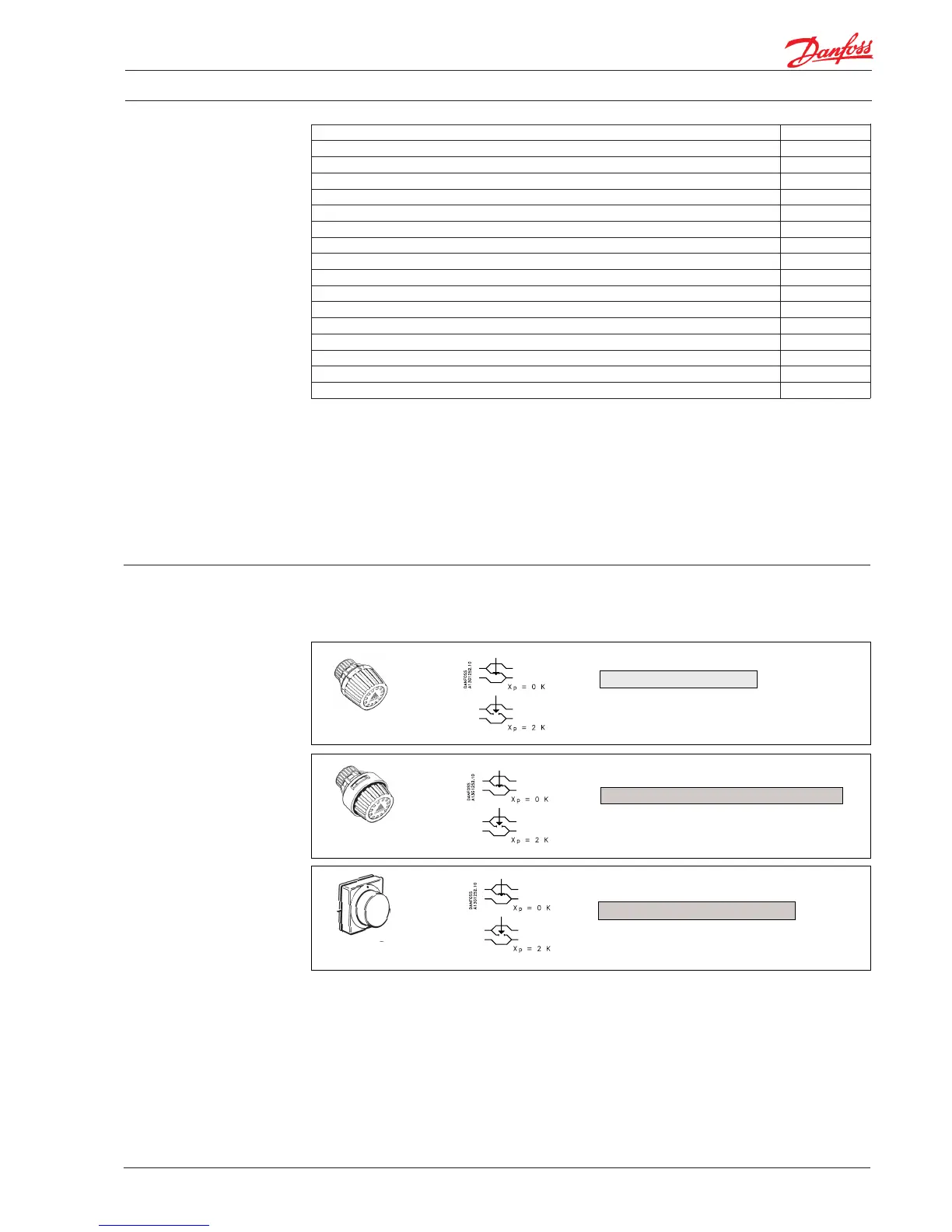

The required room temperature is set by rotating
the sensor handle to match the scale number with
the setting register. The correlation between scale
Setting the temperature
numbers and room temperatures (at Xp=2K) is
shown on the right.
The values shown are for guidance only.
Accessories
Data Sheet Radiator thermostats for one-pipe and two-pipe systems
Accessories for RA 2000 sensors Code no.
Anti.theft plugs for sensors (50 pcs) 013G1232
Threaded range limiting pins (30 pcs) 013G1237
RA 2020/2022 scale cover (20 pcs) 013G1233
Toolkit, comprising allen key & locking pin tool 013G1236
Accessories for RA-FN and RA-G valves Code no.
Gland seal for RA-FN and RA-G valves (Can be replaced without draining down) 013G0290
Manual positive shut-off knob 013G5002
Spare protective green cap 013G0275
Compression fittings for RA-FN valves Code no.
3/8" x 10 mm for RA-FN 10 013G4100
3/8" x 12 mm for RA-FN 10 013G4102
½" x 10 mm for RA-FN 15 013G4110
½" x 12 mm for RA-FN 15 013G4112
½" x 15 mm for RA-FN 15 013G4115
¬ = Frost protection setting
