Danfoss RET2001M - Page 45

Danfoss Heating Solutions VISUO14F 45
RET2001M & TP5001M

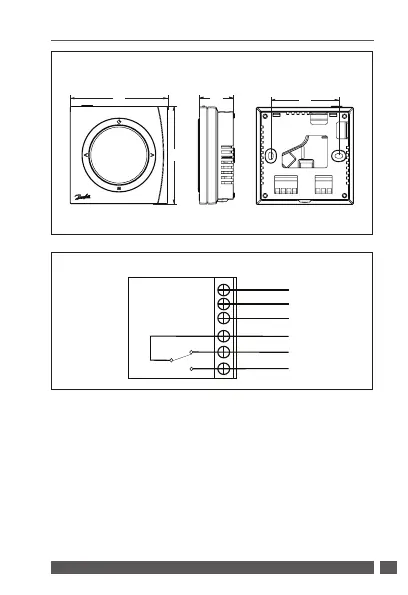

Fig. 4
86. 0
86.0
30. 0
60. 0
Fig. 5
N
COM
NC
NO
L
230V ~
L
Installation Guide
* Note(EN):
1. Both live(L) terminals are internally linked and available for ease of cable
termination only.
2. If replacing a 230-volt room stat, a link between the live(L) and a
common(COM) terminal is required.
* Noter(FR):
1. Les deux bornes (L) sont connectées entre elles en interne et disponibles
uniquement pour faciliter le branchement .
*
*
