Termix VVX-I-R FI - 7 Series DS fully insulated

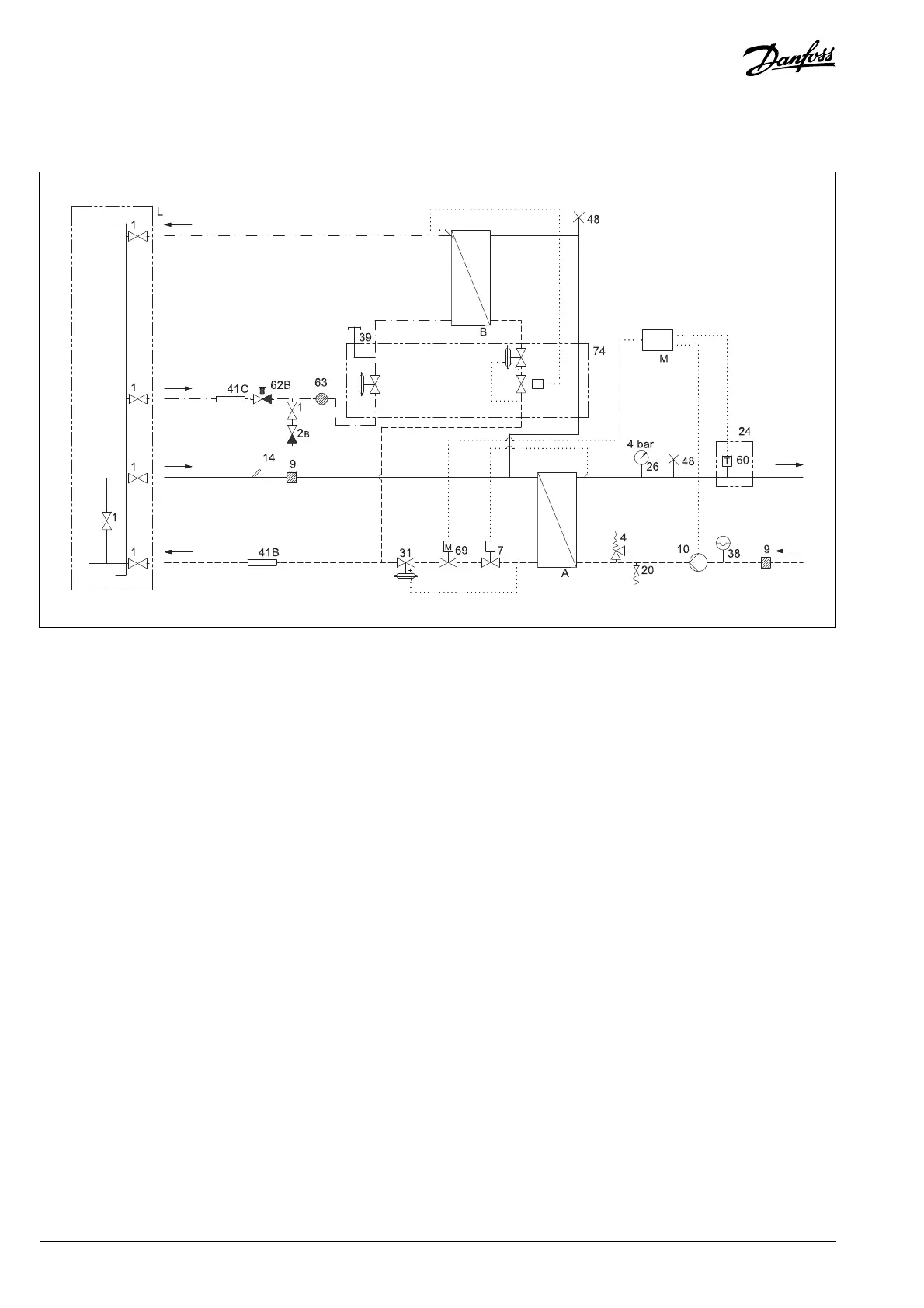

Schematic description - Termix VVX-I-R FI UFH
A Heat exchanger, HE 10 Circulator pump 41C Fitting piece, Shut-off-valve
B Heat exchanger, DHW 14 Sensor pocket, energy meter 48 Air vent, manual
L Border of delivery 20 Filling/drain valve 60 Thermostat (only for under floor heating)
M Electrical wiring box 24 Delivered loose with unit 62B Pressure Absorber with non-return valve
1 Isolation valve 26 Pressure gauge 63 Sieve
2B Double check valve, WRAS 31 Differential pressure controller 69 On/Off valve
4 Safety valve 38 Expansion tank 74 IHPT controller
7 Thermostatic valve 39 Connection closed
9 Strainer 41B Fitting piece, energy meter
Your heat interface unit may look different from the heat interface unit shown
Heating
Supply
Heating
Return
Domestic
Hot water
Domestic
Cold water
Heat network
Supply
Heat network
Return
Mounting rail

Danfoss Termix VVX-I-R FI - 7 Series Specifications

General

Brand	Danfoss
Model	Termix VVX-I-R FI - 7 Series
Category	Control Systems
Language	English
