NB!
With the IP 21 solution all units require a minimum of 100 mm air on each side. This
means that side-by-side mounting is NOT allowed.

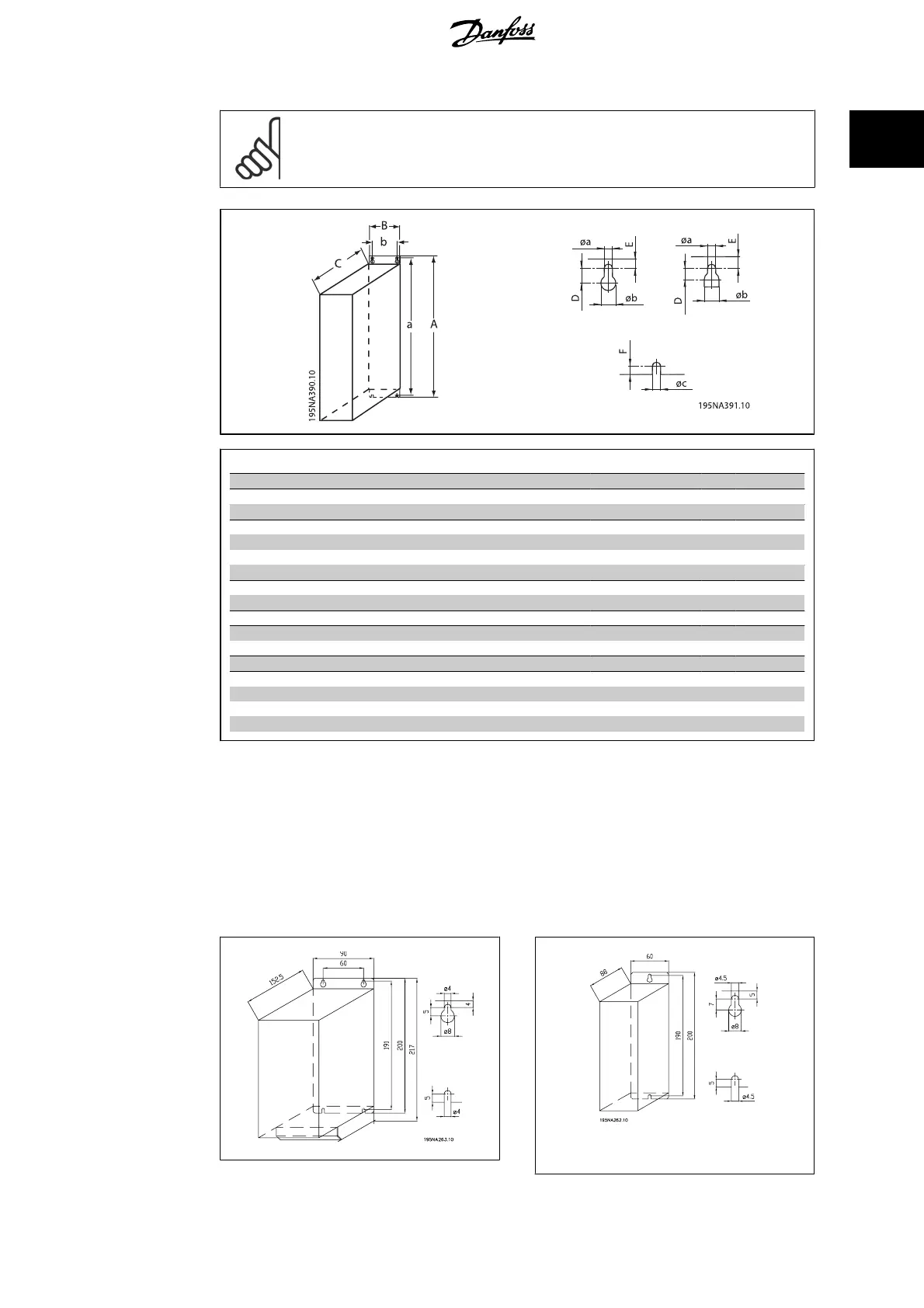

Size mm A a B b C D E øa øb F øc
S2
VLT 2803 - 2815
200 191 75 60 168 7 5 4.5 8 4 4.5
D2
VLT 2803 - 2815
200 191 75 60 168 7 5 4.5 8 4 4.5
VLT 2822* 267.5 257 90 70 168 8 6 5.5 11 4.5 5.5
VLT 2840*
267.5 257 140 120 168 8 6 5.5 11 4.5 5.5
PD2
VLT 2822
267.5 257 140 120 168 8 6 5.5 11 4.5 5.5
VLT 2840 505 490 200 120 244 7.75 7.25 6.5 13 8 6.5
T2
VLT 2822 267.5 257 90 70 168 8 6 5.5 11 4.5 5.5
VLT 2840 267.5 257 140 120 168 8 6 5.5 11 4.5 5.5
T4
VLT 2805 - 2815
200 191 75 60 168 7 5 4.5 8 4 4.5
VLT 2822 - 2840 267.5 257 90 70 168 8 6 5.5 11 4.5 5.5
VLT 2855 - 2875 267.5 257 140 120 168 8 6 5.5 11 4.5 5.5
VLT 2880 - 2882 505 490 200 120 244 7.75 7.25 6.5 13 8 6.5
Table 1.1: * Only 3-phase
Drill holes in accordance with the measurements given in the above table. Please note the differ-
ence in unit voltages.
Retighten all four screws.
Fit the decoupling plate to the power cables and the earth screw (terminal 95).
1.3.1 Motor coils (195N3110) and RFI 1B filter (195N3103)
Illustration 1.1: Motor coils
VLT 2800 Quick Guide 1 Quick Guide
MG.28.M1.02 - VLT
®
is a registered Danfoss trademark 5
