Danfoss VLT 3022

49MG.30.A7.02 - VLT
®
is a registered Danfoss trademark
*) Note: With the above fuses, VLT
®
types 3100-3150 have a short-circuiting capacity of
100,000 A.
VLT
®
type 3200 3250
Cable sizes See technical data See technical data
Cable end, type Screw terminal Screw terminal
Terminal torque [Nm] 42 42
Cable sizes See technical data See technical data
Cable end, type M8 Bolt M8 Bolt
Terminal torque [Nm] 6 6
Bussmann type
Motor
Input
Fuses*
JJS 450
450 A/600 V
JJS 500
500 A/600 V

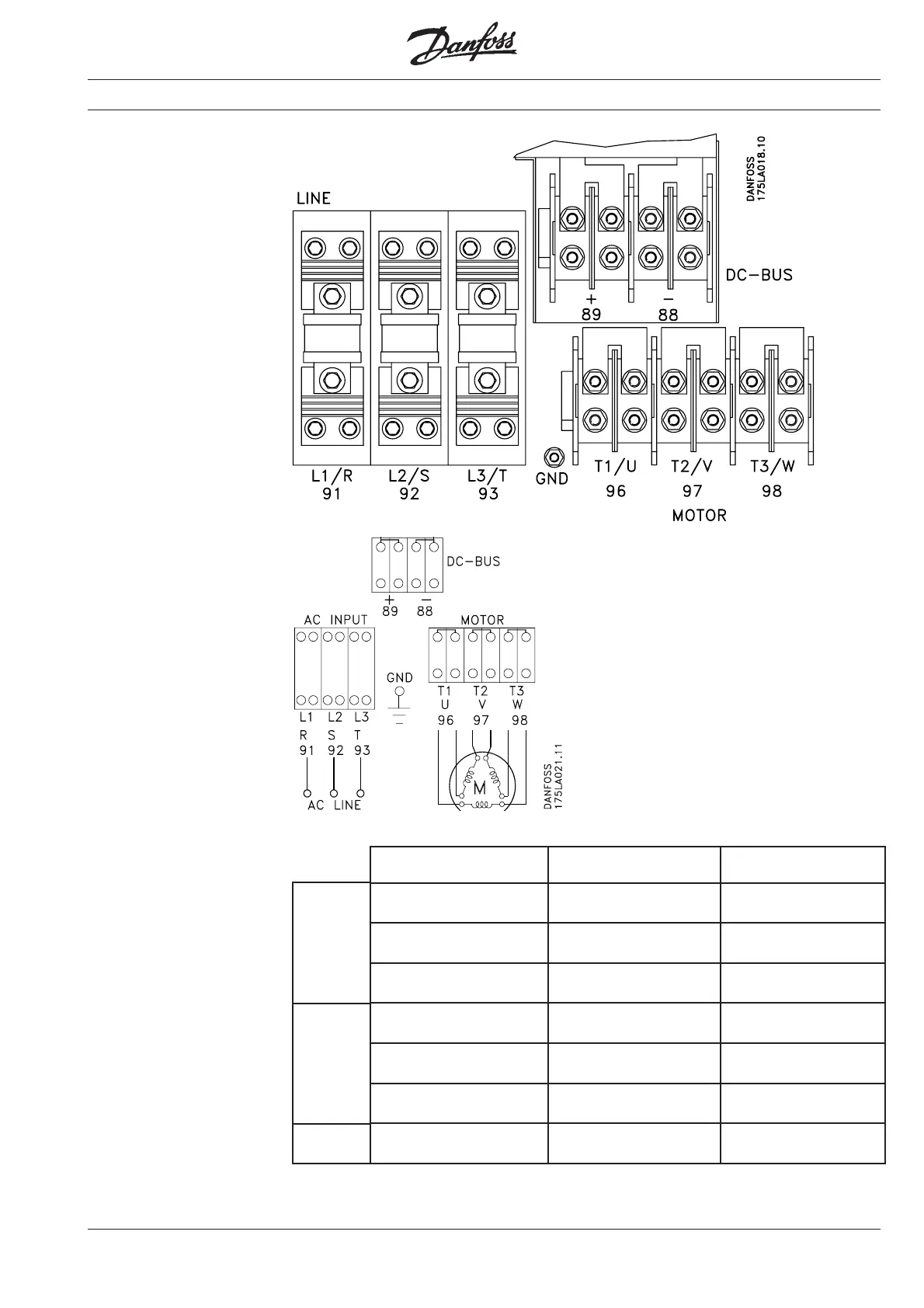

Mains and motor
connection for
VLT
®
types
3200-3250
Connection of VLT
®
