External mounting
of display
The control panel can be mounted
externally using an optional adaptor and
cable.
The length of the cable is 3 metres, which
is enough to mount the control panel in a
cabinet cover.
The enclosure at the cabinet cover is IP 54.
Accessories
Danfoss can supply brake resistors suiting
every size of VLT
®
frequency converters.
Connection of
brake resistors

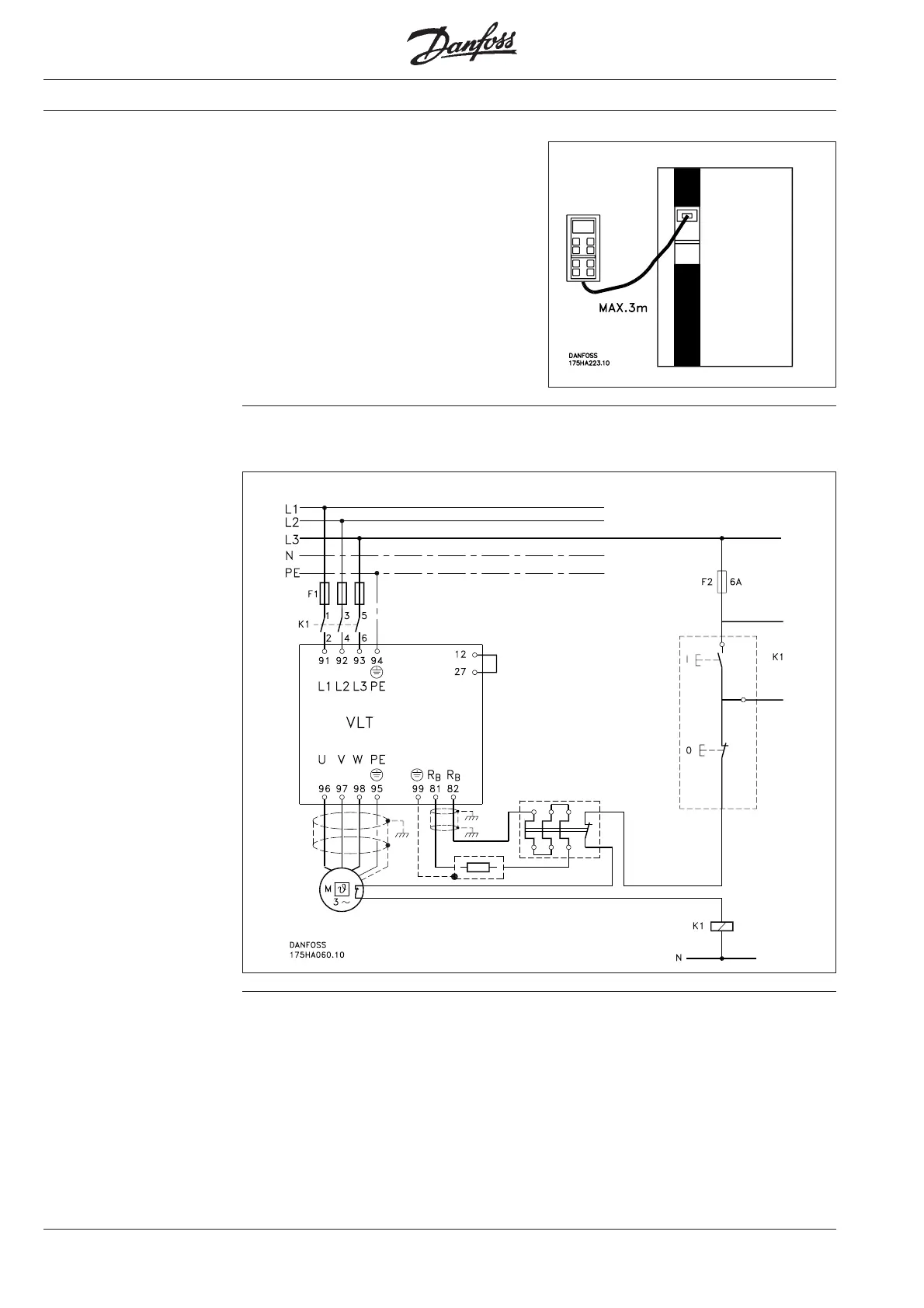

Connection of the brake resistor
Connection of
option cards
Beside the control card of the VLT
®
frequency converter you will see a free
space.
This space is used for option cards.
Mount the option card using the groove in
the right-hand side of the aluminium tray,
and the two screws.
The electrical connection between the
option card and the standard control card
is done by means of the plugs FK1 - FK4.
The number of option cards is increasing
and the functions of specific option cards
will be described in a separate manual.
