Appendix
7 - 1

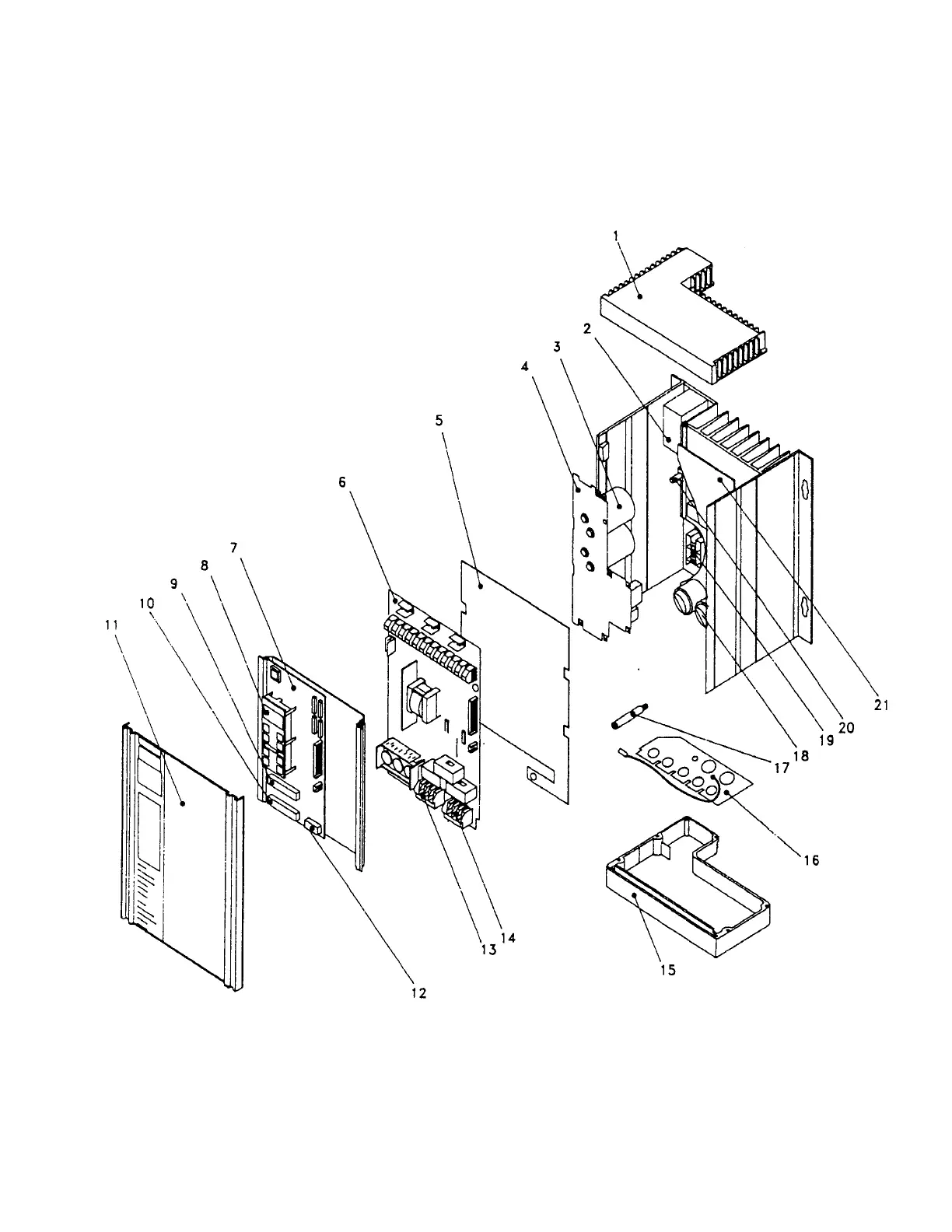

COMPONENT LOCATION
VLT 3002-3004, 230V VLT 3502-3504, 230V
VLT 3002-3008, 380/460V VLT 3502-3511, 380/460V
1. Top Cover
2. DC Coil
3. DC Bus Capacitor
4. DC Card
5. ILD Insulator Foil
6. Input Line Driver (ILD) Card
7. Control Card
8. Display Keypad
9. Terminal Strip, 10-Position
10. Terminal Strip, 11-Position
11. Front Cover
12. Terminal Strip, 5 Position
13. Power Terminal Strip
14. Motor Terminal Strip
15. Bottom Cover
16. Bonding Plate
17. Standoff, ILD Card to Ground
18. Motor Coil
19. Rectifier Module
20. Standoff, DC Card
21. IGBT Six-Pack Module
