Danfoss VLT CANopen MCA 105 Service Guide

1
2
4
e30bg562.10
3

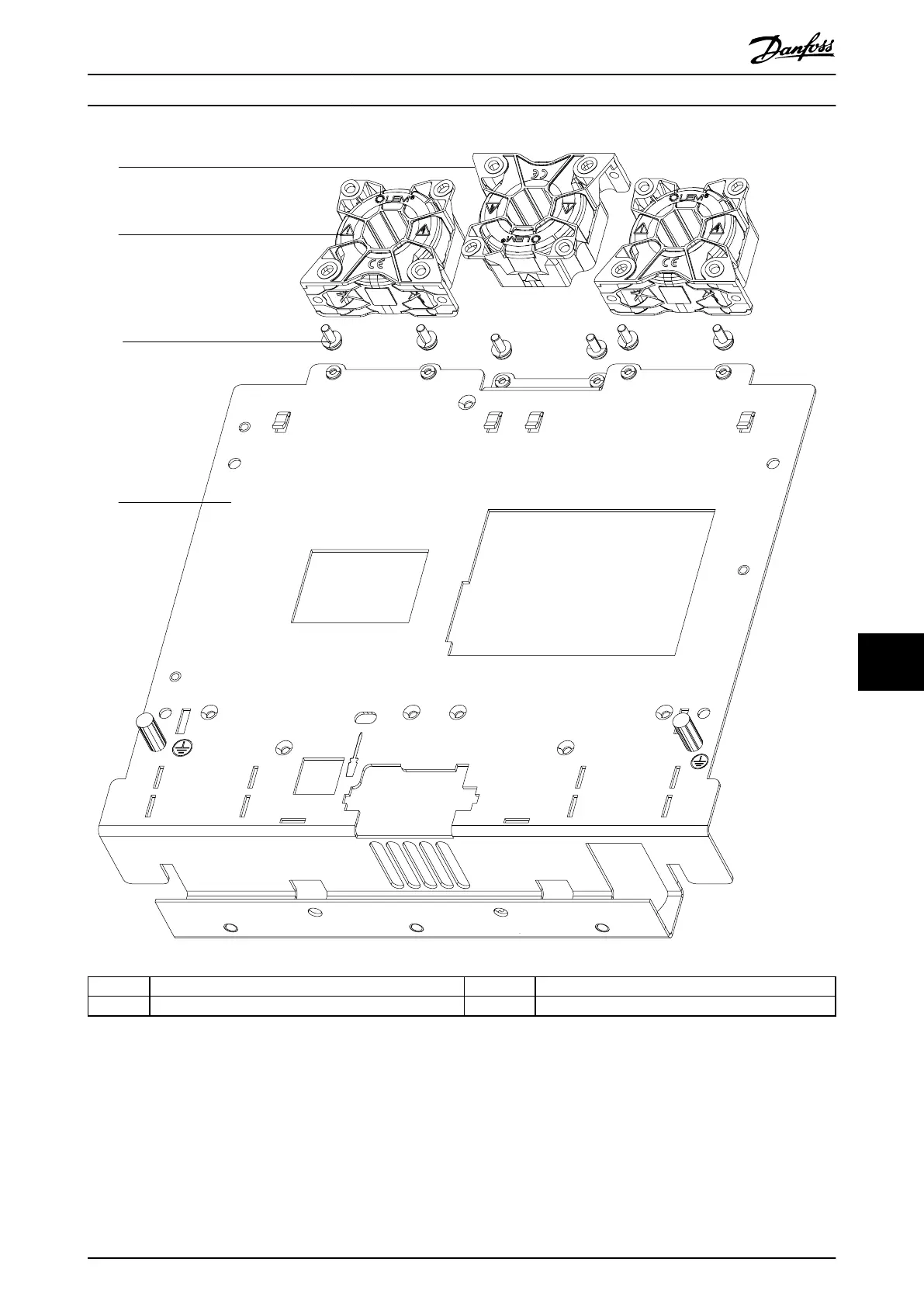

1 Middle current sensor (inverted position) 3 Thread-forming screw (T20)
2 Outer current sensor (upright position) 4 Power terminal mounting plate (IP20/Chassis)
Illustration 10.8 Current Sensors in D3h Drive
D1h/D3h/D5h/D6h/J8 Drive Di... Service Guide
MG94A502 Danfoss A/S © 02/2019 All rights reserved. 145
