Danfoss VLT CANopen MCA 105 Service Guide

1
6
2
7
3
9
8
10
11
4
5
12
130BF881.10

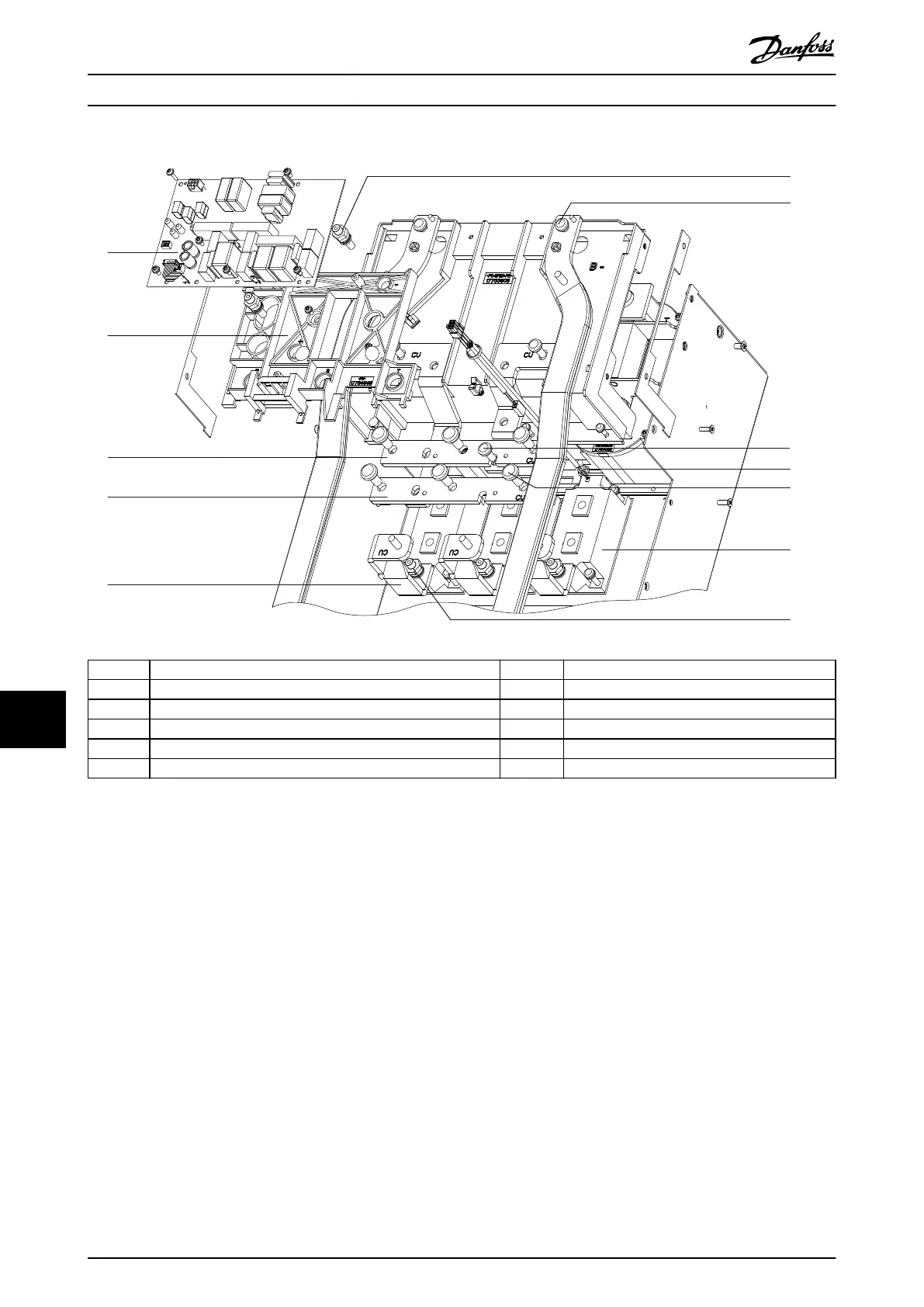

1 Inrush card 7 Screw (T40)
2 Inrush support bracket 8 Screw (T30)
3 DC(-) busbar 9 Gate lead
4 DC(+) busbar 10 Screw (T50)
5 SCR input busbar 11 SCR
6 Stando (16 mm) 12 Stando (19 mm)
Illustration 11.10 SCRs and SCR Input Busbars
D2h/D4h/D7h/D8h/J9 Unit Dis...
VLT
®
FC Series, D1h–D8h, Da2/Db2/Da4/Db4, E1h–E4h, J8/J9
210 Danfoss A/S © 02/2019 All rights reserved. MG94A502
