130BF762.10
1
2
3
4
5
10
11
15
12
14
16
17
18
6
7
8
9
13
19
20
1 Power card mounting plate 11 MK500 (to customer relays)
2 Nut (8 mm) 12 Center screw (T25)
3 Power card 13 MK803 (to power card)
4 MK102 (to control card) 14 MK802 (to DC power)
5 MK105 (to fan power card and inrush card) 15 Fan power card
6 MK106 (to brake temperature switch) 16 MK602 (to door/top fans)
7 MK502 (to EMC relays) 17 MK600 (to heat sink fans)
8 MK101 (to current sensors) 18 Cable retaining clip
9 MK103 (to gate drive card) 19 MK1200 (CANBUS to inrush card and power card)
10 MK501 (to mixing fans) 20 Cable access hole

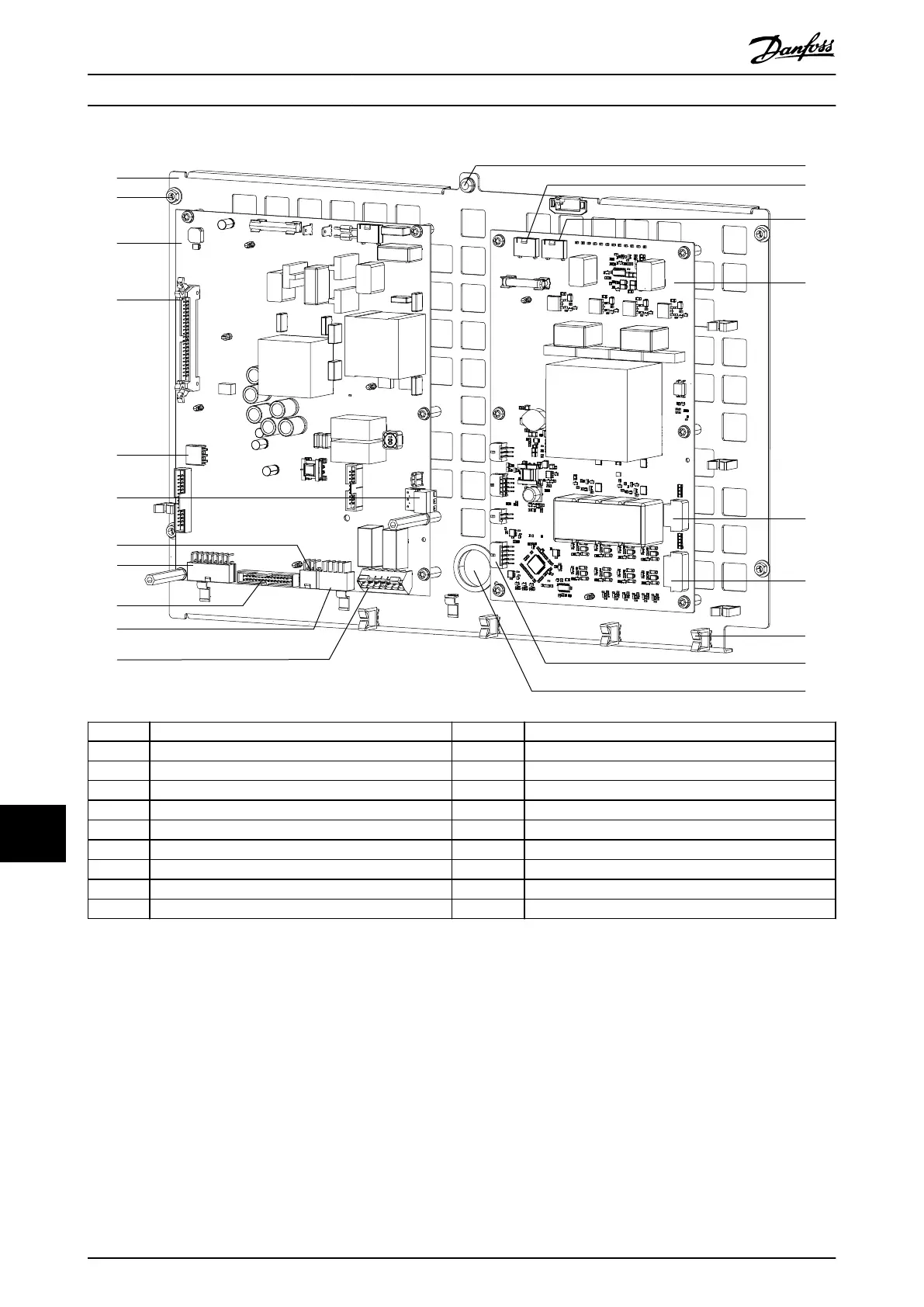

Illustration 13.2 Power Card Mounting Plate
E1h–E4h Drive Disassembly a...
VLT
®
FC Series, D1h–D8h, Da2/Db2/Da4/Db4, E1h–E4h, J8/J9
264 Danfoss A/S © 02/2019 All rights reserved. MG94A502
