1 DC power cable (to power card shelf) 7 Midplate
2 Balance/high frequency card 8 Insulator sheet 2
3 Ground bar 9 DC(-) bus plate
4 Insulator sheet (for balance/high frequency card) 10 Insulator sheet 3
5 DC(+) bus plate 11 Plug
6 Insulator sheet 1 12 DC capacitor

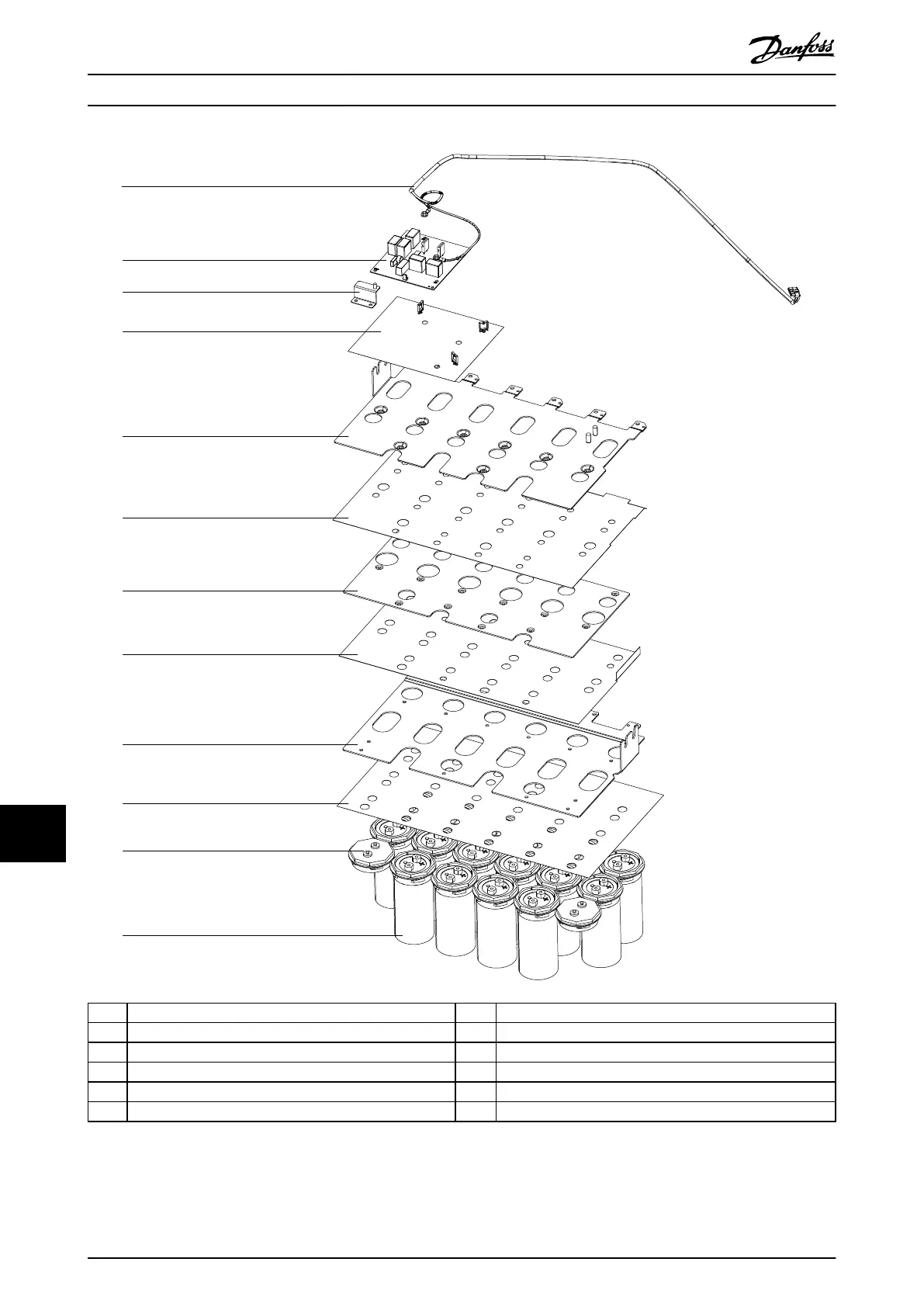

Illustration 13.20 E1h/E3h Capacitor Bank, 380–500 V AC (T5), 16 DC Capacitors
E1h–E4h Drive Disassembly a...
VLT
®
FC Series, D1h–D8h, Da2/Db2/Da4/Db4, E1h–E4h, J8/J9
298 Danfoss A/S © 02/2019 All rights reserved. MG94A502
1313
