Danfoss VLT FCM 307 - Page 18

VLT
®
FCM Series

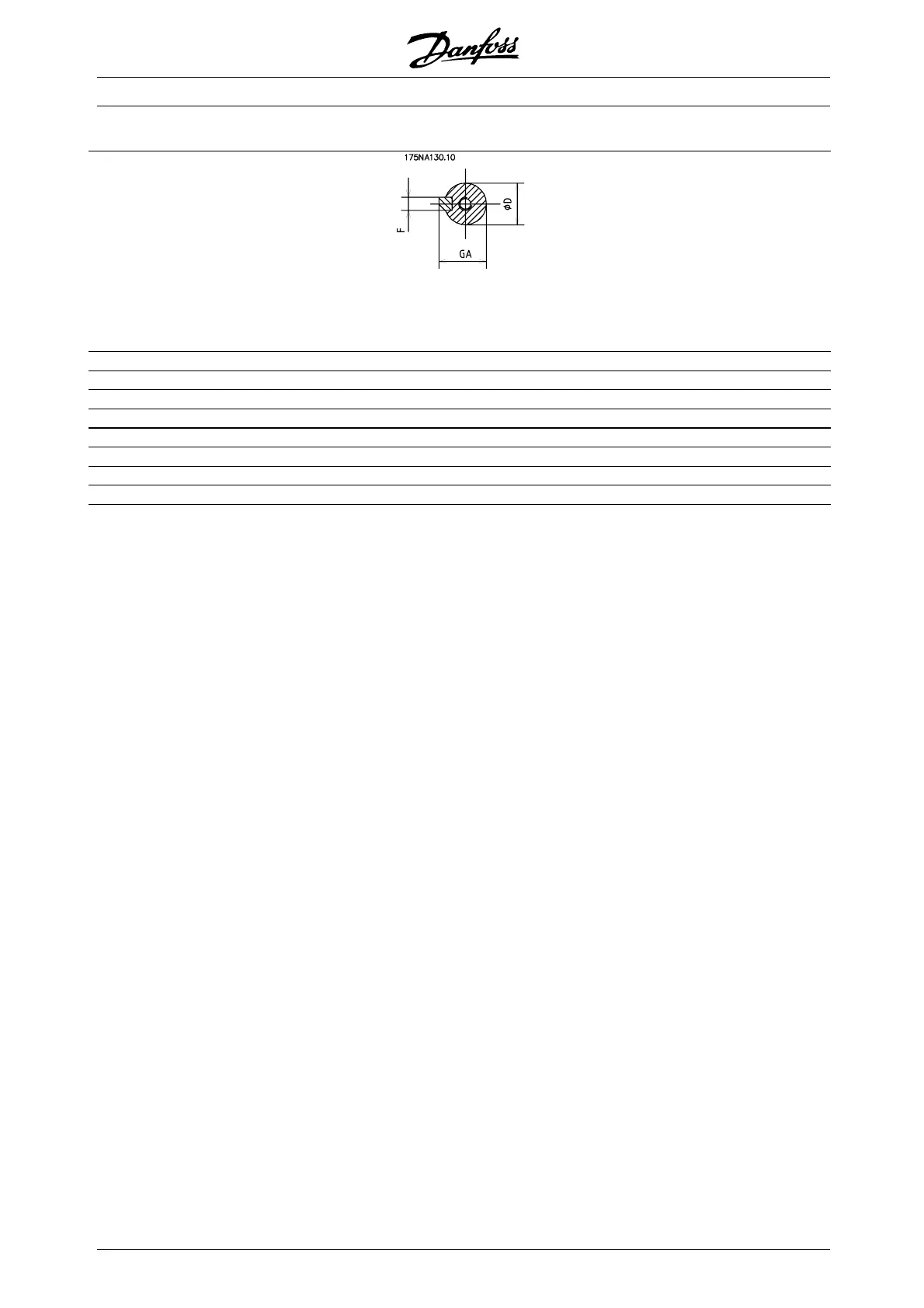

Shaft Drive End
Shaft tapped
DH x deep to
DIN 332 Form DR
FCM 305 307 311 315 322 330 340 355 375
Frame size 80 80 90 90 100 100 112 132 132
D [mm] 19 19 24 24 28 28 28 38 38
E [mm] 40 40 50 50 60 60 60 80 80
ED [mm] 32 32 40 40 50 50 50 70 70
EB[mm]445555555
DH [mm] M6x16 M6x16 M8x19 M8x19 M10x22 M10x22 M10x22 M12x28 M12x28
F[mm]66888881010
GA [mm] 21.5 21.5 27 27 31 31 31 41 41
MG.03.H3.02 - VLT is a registered Danfoss trademark
