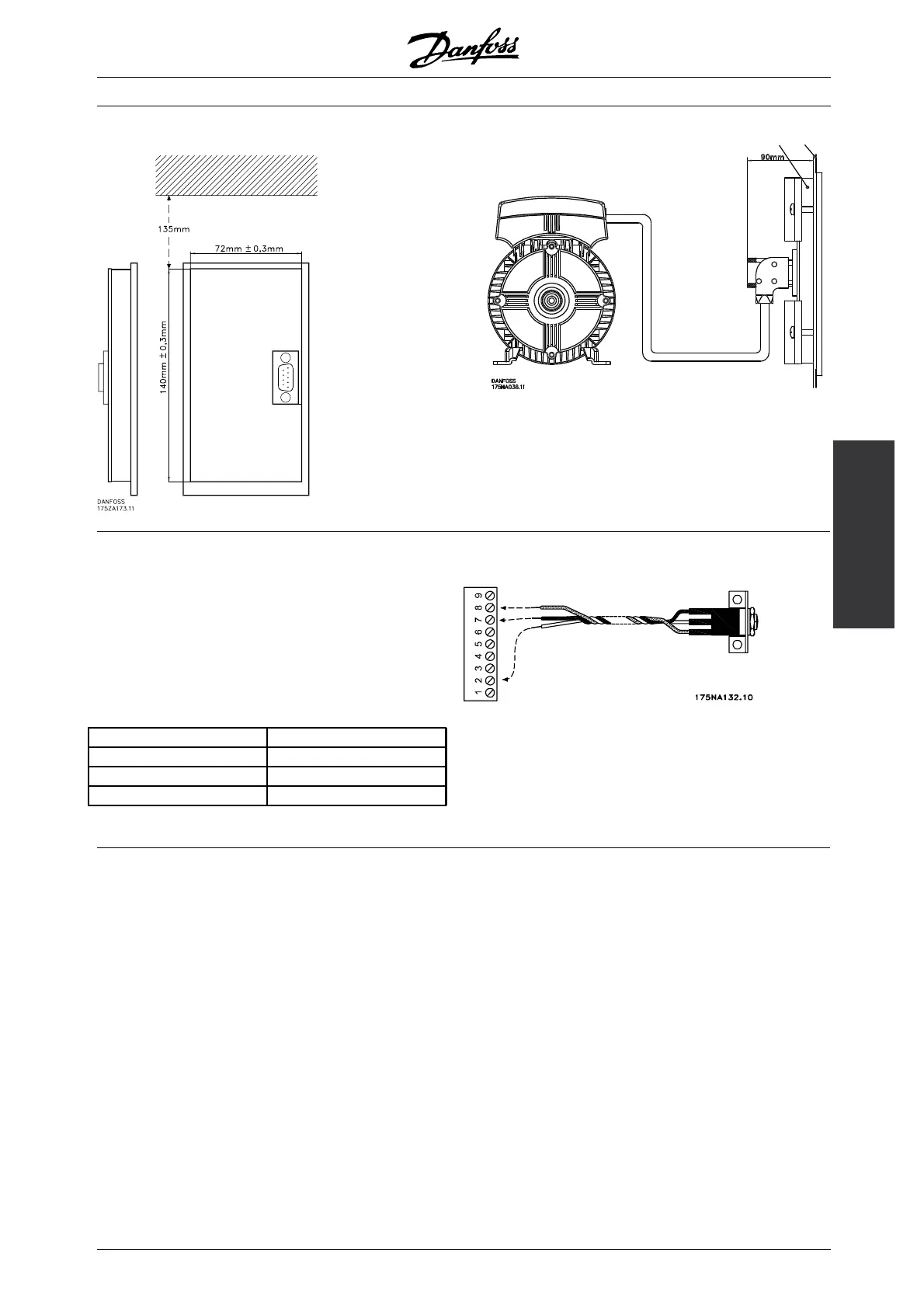

■ Remote mounting kit cont.
■ Potentiometer option (177N0011)
Option to control the reference by means of a
potentiometer. The option is mounted instead of a
cable bracket. The potentiometer is operated
by
removing the blind plug to set the desired reference,
and then mount the blind plug again.
Colour of wire Terminal on X101
White 2 (analog input)
Red 8(0V)
Black 7(+10V)
