VLT
®
FCM Series
Programming

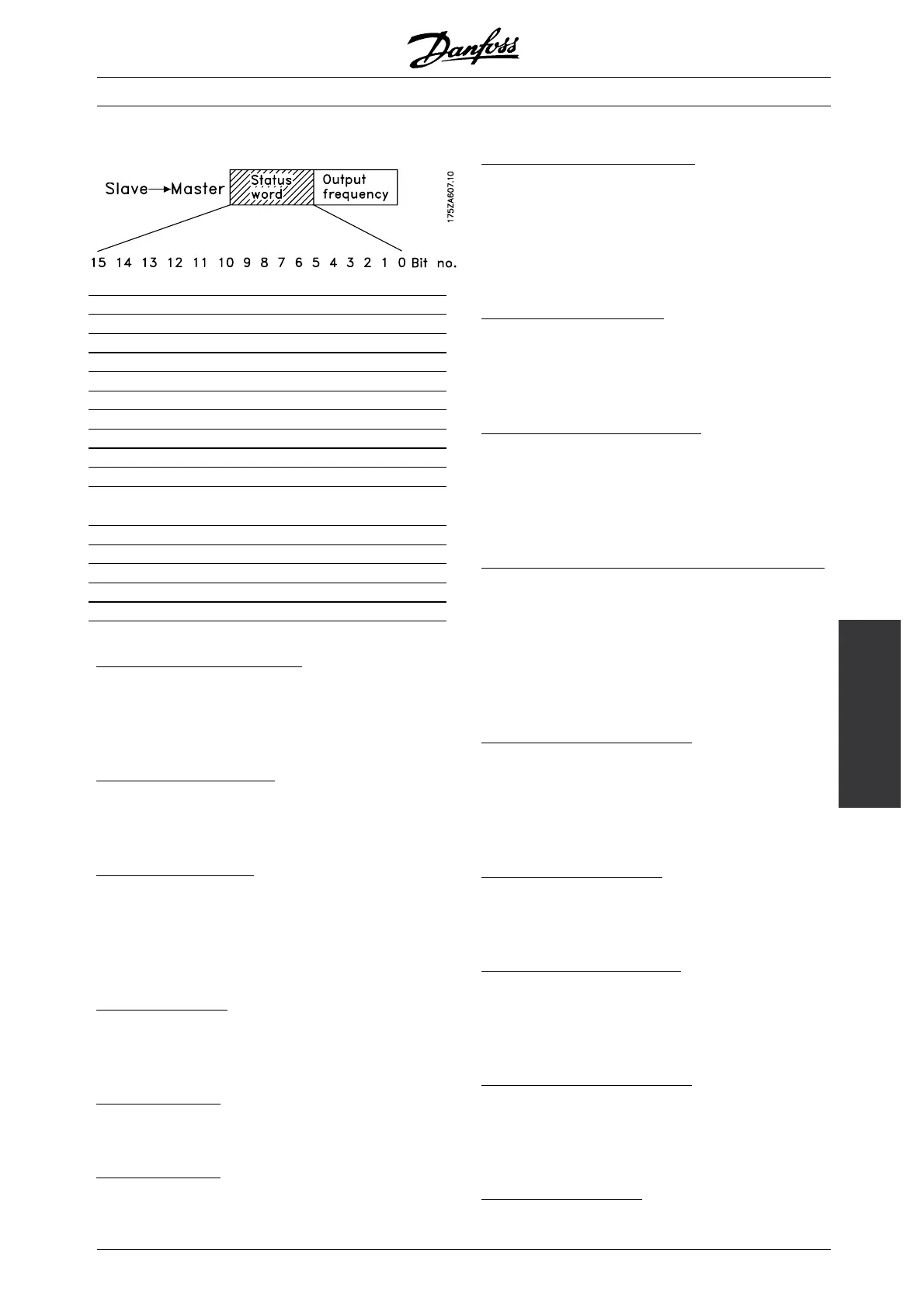

Bit Bit = 0 Bit =1
00 Control not ready Ready
01 FC not ready Ready
02 Coasting Enable
03 No fault Trip
04 ON 2 OFF 2
05 ON 3 OFF 3
06 Start enable Start disable
07 No warning Warning
08 Speed ≠ ref. Speed = ref.
09 Local control Serial communication
10 Outside frequency
range
Frequency limit OK
11 Not running Running
12
13 Voltage OK Above limit
14 Current OK Above limit
15 Thermal warning
Bit 00, Control not ready/ready:
Bit 00 = "0" means that bit 00, 01 or 02 of the
control word is "0" (OFF1, OFF2 or OFF3), or that the
frequency converter has tripped. Bit 00 = "1" means
that the frequency converter control is ready.
B
it 01, FC not ready/ready:
Same meaning as bit 00; however, there is also a supply
to the power section, and the frequency converter is
ready to run when it receives the necessary start signals.
B
it 02, Coasting/enable:
Bit 02 = "0" means that the control word bit 00, 01,
02 or 03 is "0" (OFF1, OFF2, OFF3 or Coasting), or
the FCM 300 Series unit has tripped. Bit 02 = "1"
means that the control word bits 00, 01, 02 or 03 are
"1" and that the FC motor has not tripped.
B
it 03, No fault/trip:
Bit 03 = "0" means that FCM 300 Series is not in a fault
condition. Bit 03 = "1" means that FCM 300 Series has
tripped and needs a reset signal in order to run.
B
it 04, ON2/OFF2:
Bit 04 = "0" means that control word bit 01 = "1". Bit
04 = "1" means that control word bit 01 = "0".
B
it 05, ON3/OFF3:
Bit 05 = "0" means that control word bit 02 = "1". Bit
05 = "1" means that control word bit 02 = "0".
B
it 06, Start enable/start disable:
Bit 06 is always "0" if FC Drive has been selected
in parameter 512. If Profidrive has been selected in
parameter 512, bit 06 will be "1" after reset of a trip,
after activation of OFF2 or OFF3 and after connection
of mains voltage. Start disable is reset, setting control
wordbit00to"0"andbits01,02and10to"1".
B
it 07, No warning/warning:
Bit 07 = "0" means that there is no unusual situation. Bit
07 = "1" means that an abnormal condition has arisen
for the FC motor. All warnings described in section List
of warnings and alarms will set bit 07 to "1".
B
it 08, Speed ≠ ref/speed. = ref.:
Bit 08 = "0" means that the actual motor speed is
different from the speed reference set. This can be
thecasei.a. whilethespeedisrampedup/down
during start/stop. Bit 08 = "1" means that the present
motor speed equals the speed reference set.
B
it 09, Local operation / serial communication control:
Bit 09 = "0" means that [STOP/RESET] is activated
on the control unit, or that Local control in parameter
002 Local/remote operation is selected. It is not
possible to control the frequency converter via
serial communication. Bit 09 = "1" means that
it is possible to control the frequency converter
via serial communication.
B
it 10, Outside frequency range:
Bit 10 = "0", if the output frequency has reached
the value in parameter 201Output frequency low
limit or parameter 202 Output frequency high l imit.
Bit 10 = "1" means that the output frequency
is within the defined limits.
B
it 11, Not running/running:
Bit 11 = "0" means that the motor is not running. Bit
11 = "1" means that the FC motor has a start signal or
that the output frequency is greater than 0 Hz.
B
it 13, Voltage OK/above limit:
Bit 13 = "0" means that the voltage limits of the
FC motor have not been exceeded. Bit 13 =
"1" means that the DC voltage of the FC motor
intermediate circuit is too low or too high.
B
it 14, Current OK / above limit:
Bit 14 = "0" means that the motor current is
lower than the current limit selected in parameter
221. Bit 14 = "1" means that the current limit in
parameter 221 has been exceeded.
B
it 15, Thermal warning:
MG.03.H3.02 - VLT is a registered Danfoss trademark
83
